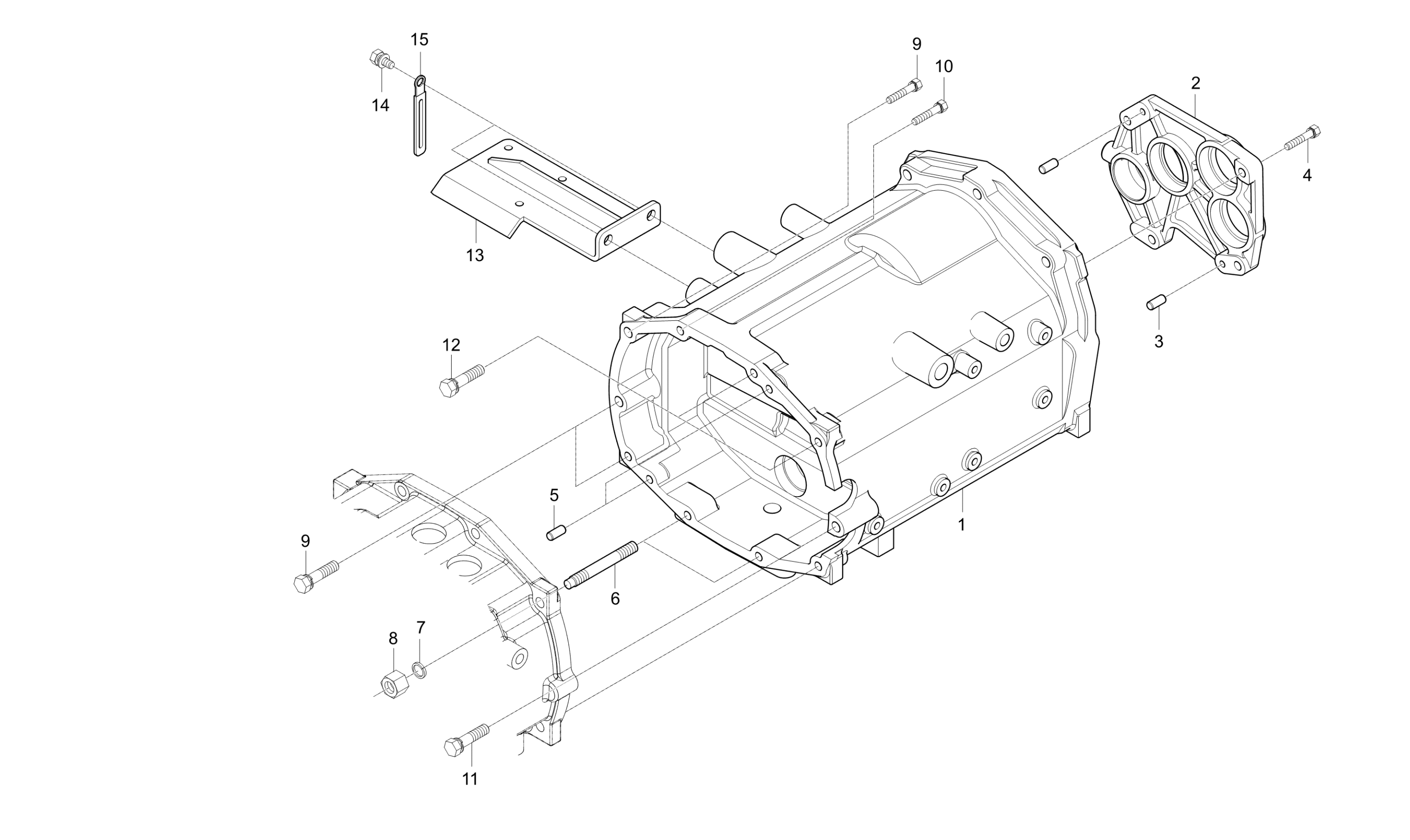

MID CASE GROUP - EX55H-T155A
Kioti TRACTOR | DK Series | DK60CHSE
-
CASE,MIDDLE
- Part No. T5515-21152
- Applied Dates 2011-06-17 and up
- 1 shown on diagram
$1,494.99 -
COVER,BEARING
- Part No. T4125-22701
- 1 shown on diagram
$339.99 -
PIN, STRAIGHT
- Part No. 05012-00816
- DIA8XL16
- 2 shown on diagram
$1.59 -
Bolt w/Lock Washer M10 P1.25x40mm
- Part No. 01133-51040
- M10XP1.25
- 4 shown on diagram
$3.49 -
PIN, STRAIGHT
- Part No. 05012-01018
- DIA10XL18
- 2 shown on diagram
$1.79 -
STUD
- Part No. 01574-51260
- M12XP1.25
- 2 shown on diagram
$7.49 -
M12 Spring Washer (04512-50120)
- Part No. 04512-50120
- M12
- 2 shown on diagram
$0.95 -
NUT
- Part No. T4240-14081
- 2 shown on diagram
$4.99 -
Bolt w/Lock Washer M12 P1.25x65mm
- Part No. 01133-51265
- M12XP1.25
- 3 shown on diagram
$5.99 -
Bolt w/Lock Washer M12 P1.25x70mm, Replaced by 01173-51270
- Part No. 01133-51270
- M12XP1.25
- 1 shown on diagram
$0.00 -
Bolt w/Lock Washer M12 P1.25x80mm
- Part No. 01133-51280
- M12XP1.25
- 1 shown on diagram
$5.99 -
Bolt w/Lock Washer M12 P1.25x45mm
- Part No. 01133-51245
- M12XP1.25
- 3 shown on diagram
$4.49 -
BRACKET, VALVE
- Part No. T5515-90231
- 1 shown on diagram
$0.00 -
Bolt w/Lock Washer M12 P1.25x25mm
- Part No. 01133-51225
- M12XP1.25
- 2 shown on diagram
$3.49 -
CLAMP,CORD
- Part No. 37155-3447-1
- 1 shown on diagram
$4.99
