START CONTROL GROUP - TC2-G515015

Kioti TRACTOR | CK Series | CK3510HSEB

Diagram for START CONTROL GROUP - TC2-G515015
  • 1 Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    • Part No. T5520-75171
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 1 Ignition Starter Switch With Shutter

    Ignition Starter Switch With Shutter

    • Part No. TF15-0196A
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $119.99
  • 2

    ASSY SAFETY CONTROL UNIT

    • Part No. TC25-0124B
    • Applied Dates 2019-07-03 and up
    • 1 shown on diagram
    $209.99
  • 3

    BOLT, FLANGE

    • Part No. 01754-50610
    • M6XP1.0
    • 2 shown on diagram
    $1.09

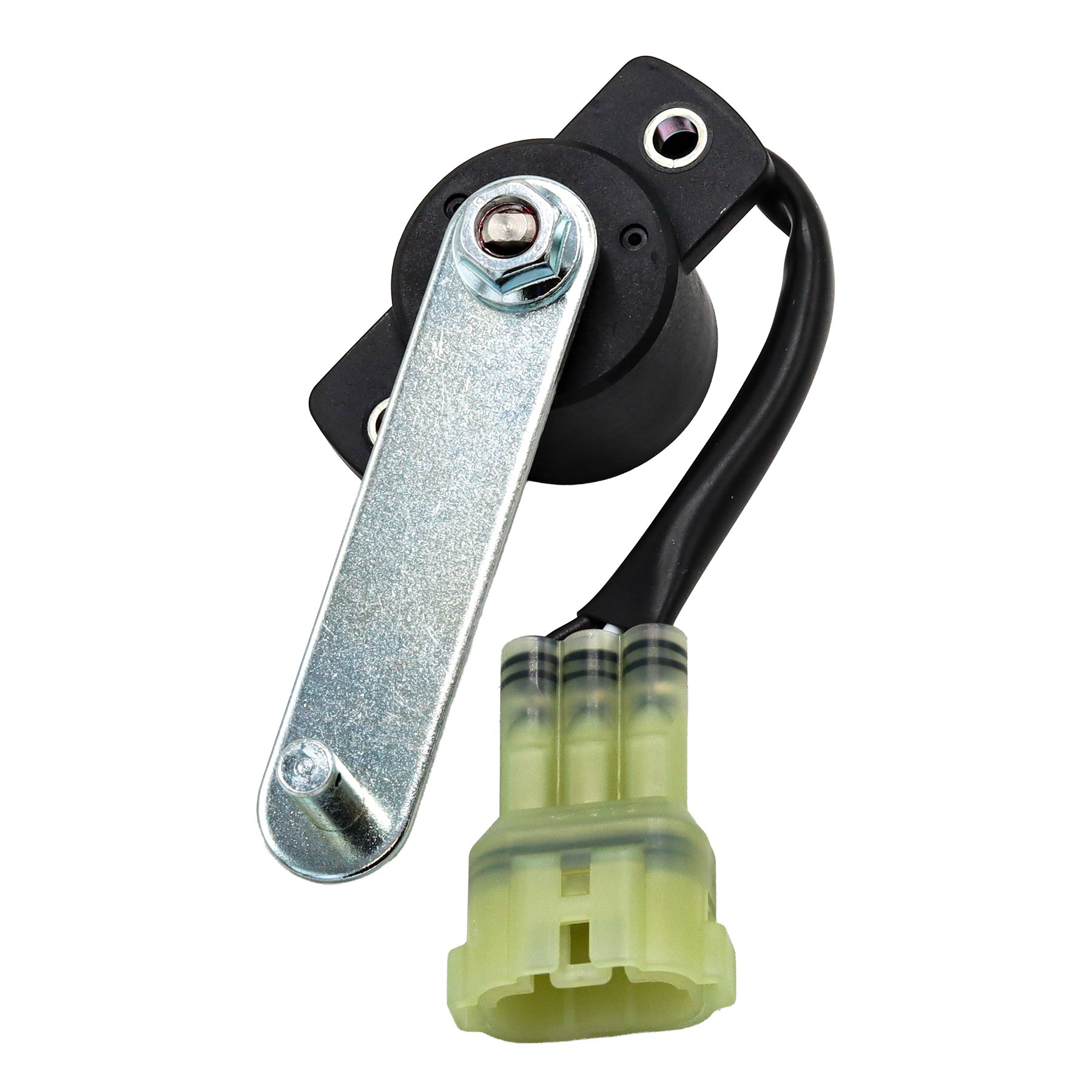

  • 4 ASS’Y STROKE SENSOR

    ASS’Y STROKE SENSOR

    • Part No. T4682-32231
    • Serial No. Up to XJJ800184
    • * multiple options for #4
    • 1 shown on diagram
    $244.99
  • 4 ASSY SENSOR, STROKE -V-

    ASSY SENSOR, STROKE -V-

    • Part No. TG35-0136A
    • Compatibility Interchngable
    • Serial No. XJJ800185 and up
    • * multiple options for #4
    • 1 shown on diagram
    $144.99
  • 5

    BOLT,SCREW

    • Part No. 03054-50408
    • M4XP0.7
    • 2 shown on diagram
    $0.56
  • 6 COVER STARTER SWITCH WATERPROOF, BLACK

    COVER STARTER SWITCH WATERPROOF, BLACK

    • Part No. T4837-77774
    • Applied Dates 2019-07-03 and up
    • 1 shown on diagram
    $5.99
