REAR COMBINATION LAMP GROUP - TC2-G522502

Kioti TRACTOR | CK Series | CK3510HSEB

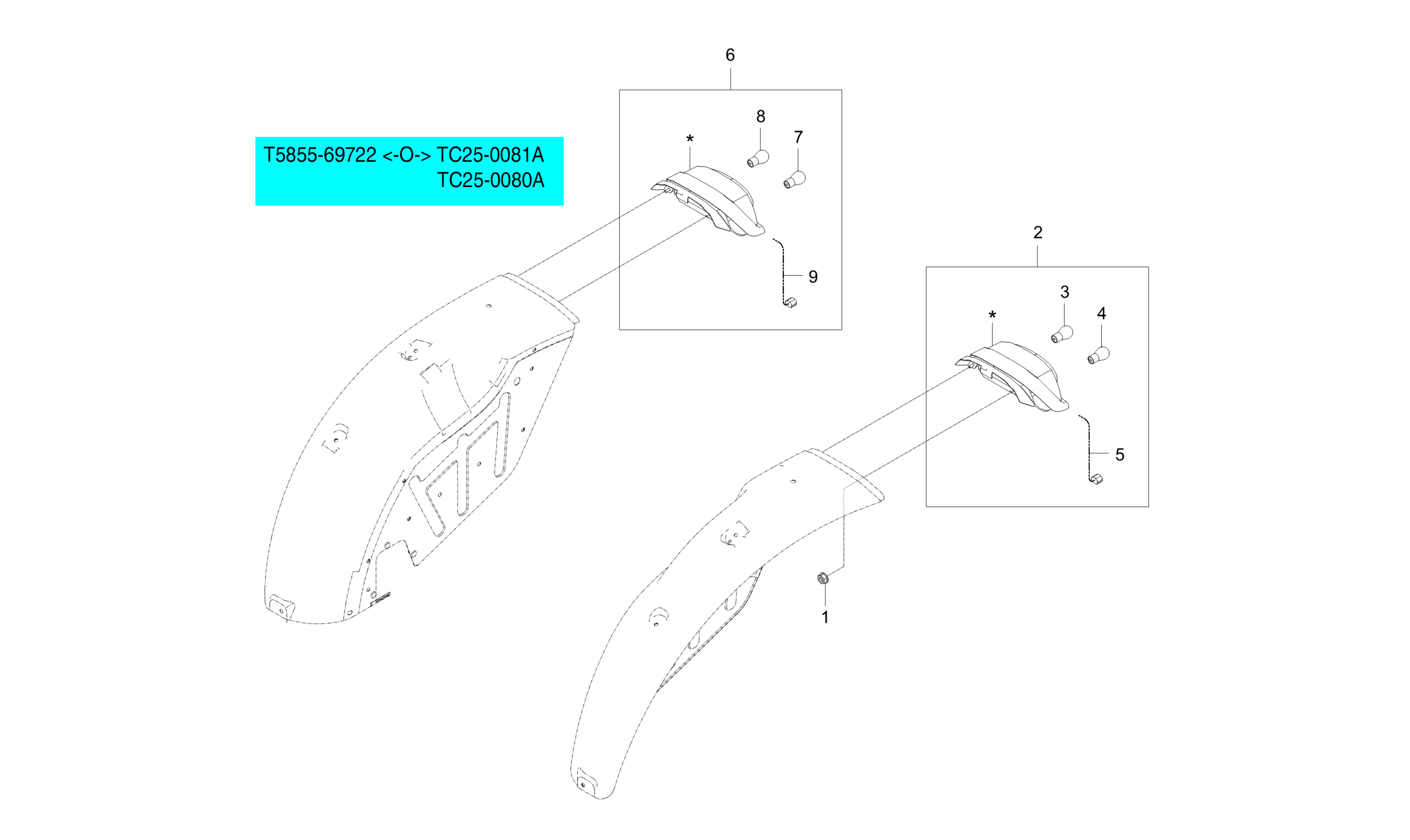

Diagram for REAR COMBINATION LAMP GROUP - TC2-G522502

1
NUT, FLANGE
- Part No. 02761-50060
- M6XP1.0
- 8 shown on diagram
$0.67

NUT, FLANGE quantity
2
ASSY REAR, COMBINATION LAMP LH
- Part No. TC25-0080A
- 1 shown on diagram
$184.99

ASSY REAR, COMBINATION LAMP LH quantity
3
BULB
- Part No. T5210-69741
- 1 shown on diagram
$8.49

BULB quantity
4
BULB ***Need to note manufacture number***
- Part No. T2185-79061
- 1 shown on diagram
$6.49

BULB ***Need to note manufacture number*** quantity
5
WIRE, CONNECTION
- Part No. T5710-69711003
- 1 shown on diagram
$49.99

WIRE, CONNECTION quantity
6

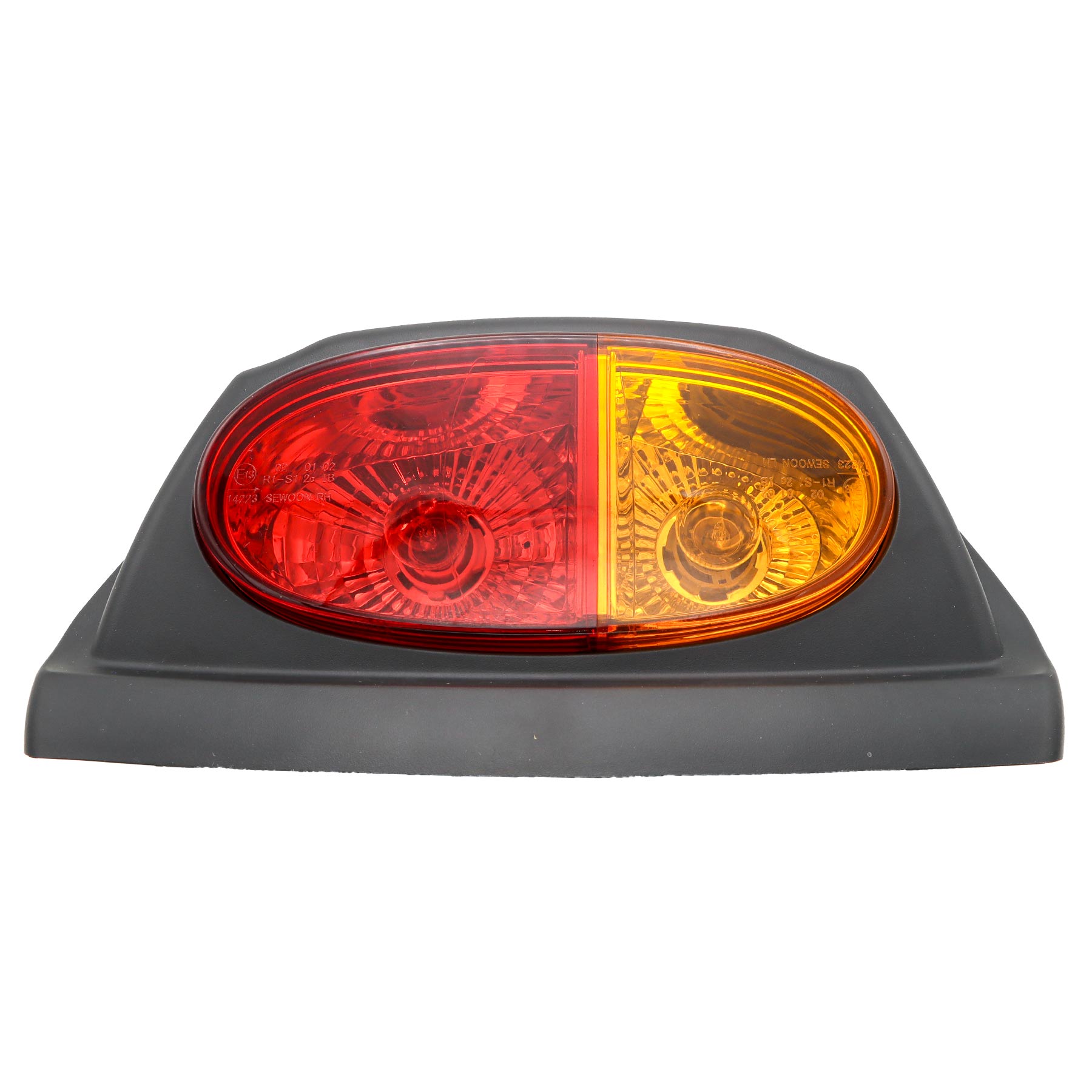

ASSY REAR, COMBINATION LAMP-RH
- Part No. TC25-0081A
- 1 shown on diagram
$184.99

ASSY REAR, COMBINATION LAMP-RH quantity
7
BULB
- Part No. T5210-69741
- 1 shown on diagram
$8.49

BULB quantity
8
BULB ***Need to note manufacture number***
- Part No. T2185-79061
- 1 shown on diagram
$6.49

BULB ***Need to note manufacture number*** quantity
9
WIRE, CONNECTION
- Part No. T5710-69711003
- 1 shown on diagram
$49.99

WIRE, CONNECTION quantity
