WIRE HARNESS GROUP - TC2-G531029

Kioti TRACTOR | CK Series | CK3510HSEB

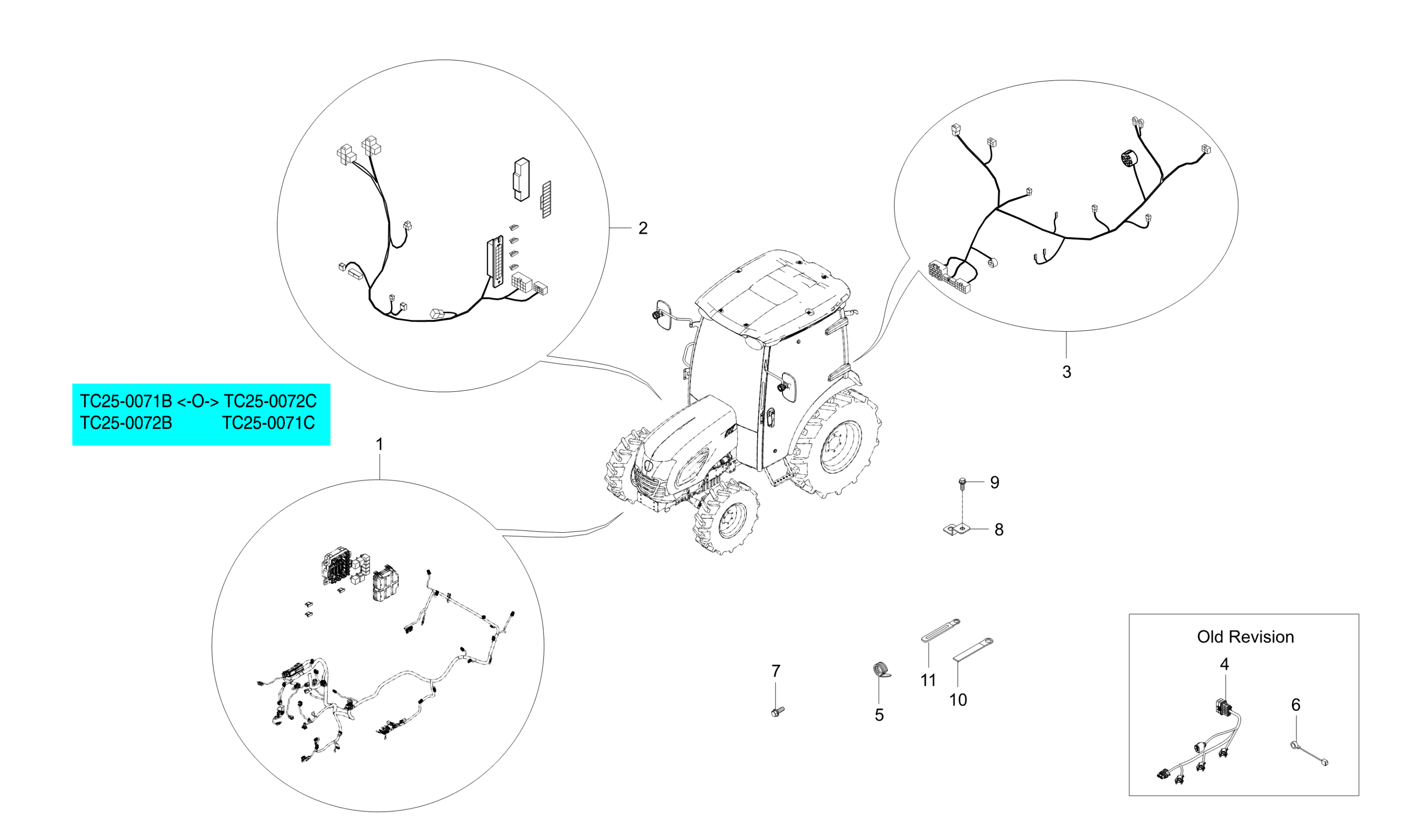

Diagram for WIRE HARNESS GROUP - TC2-G531029
  • 1

    ASSY WIRE HARNESS, ENGINE v

    • Part No. TC25-0070B
    • Applied Dates 2017-10-02 to 2018-02-23
    • Serial No. TJJ800001 to UJJ800272
    • * multiple options for #1
    • 1 shown on diagram
    $2024.99
  • 1

    ASSY WIRE HARNESS, ENGINE

    • Part No. TC25-0070C
    • Compatibility Call for compat
    • Applied Dates 2018-02-23 to 2018-02-23
    • * multiple options for #1
    • 1 shown on diagram
    $1519.99
  • 1

    ASSY WIRE HARNESS, ENGINE

    • Part No. TC25-0070D
    • Compatibility New repl old
    • Applied Dates 2018-02-24 to 2019-06-30
    • Serial No. UJJ800273 to VJJ800400
    • * multiple options for #1
    • 1 shown on diagram
    $2024.99
  • 1

    ASSY WIRE HARNESS, ENGINE

    • Part No. TC25-0070E
    • Compatibility No interchange
    • Applied Dates 2019-07-01 and up
    • Serial No. VJJ800401 to VJJ800448
    • * multiple options for #1
    • 1 shown on diagram
    $1564.99
  • 1
    • Part No. TC25-0070F
    • Compatibility Interchngable
    • Applied Dates 2019-08-19 and up
    • Serial No. VJJ800449 to WJJ800230
    • * multiple options for #1
    • 1 shown on diagram
  • 2
    • Part No. TC25-0071C
    • Applied Dates 2018-01-01 to 2019-06-30
    • Serial No. UJJ800001 to VJJ800400
    • * multiple options for #2
    • 1 shown on diagram
  • 2

    ASSY WIRE HARNESS, PANEL

    • Part No. TC25-0071D
    • Compatibility No interchange
    • Applied Dates 2019-07-01 and up
    • Serial No. VJJ800401 to WJJ800230
    • * multiple options for #2
    • 1 shown on diagram
    $514.99
  • 3

    ASSY WIRE HARNESS, FENDER

    • Part No. TC25-0072C
    • Applied Dates 2017-12-26 to 2018-03-13
    • Serial No. TJJ800089 to UJJ800320
    • * multiple options for #3
    • 1 shown on diagram
    $194.99
  • 3
    • Part No. TC25-0072D
    • Compatibility New repl old
    • Applied Dates 2018-03-14 to 2019-06-30
    • Serial No. UJJ800321 to VJJ800400
    • * multiple options for #3
    • 1 shown on diagram
  • 3

    ASSY WIRE HARNESS, FENDER

    • Part No. TC25-0072E
    • Compatibility No interchange
    • Applied Dates 2019-07-01 and up
    • Serial No. VJJ800401 to WJJ800230
    • * multiple options for #3
    • 1 shown on diagram
    $284.99
  • 4

    INJECTOR CONNECTION WIRE HARNESS ASSAY

    • Part No. T5525-69313
    • 1 shown on diagram
    $249.99
  • 5

    BAND v

    • Part No. T2198-82571
    • 6 shown on diagram
    $1.99
  • 6

    WIRE HARNESS 1

    • Part No. T4620-69362
    • 1 shown on diagram
    $3.49
  • 7 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 3 shown on diagram
    $1.89
  • 8

    BRACKET

    • Part No. T5250-68771
    • t1.6
    • 2 shown on diagram
    $9.49
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 10

    CLAMP, CORD v

    • Part No. 34150-2939-1
    • 1 shown on diagram
    $3.49
  • 11

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
