DISPLAY CONTROL GROUP - TC2-G533010

Kioti TRACTOR | CK Series | CK3510HSEB

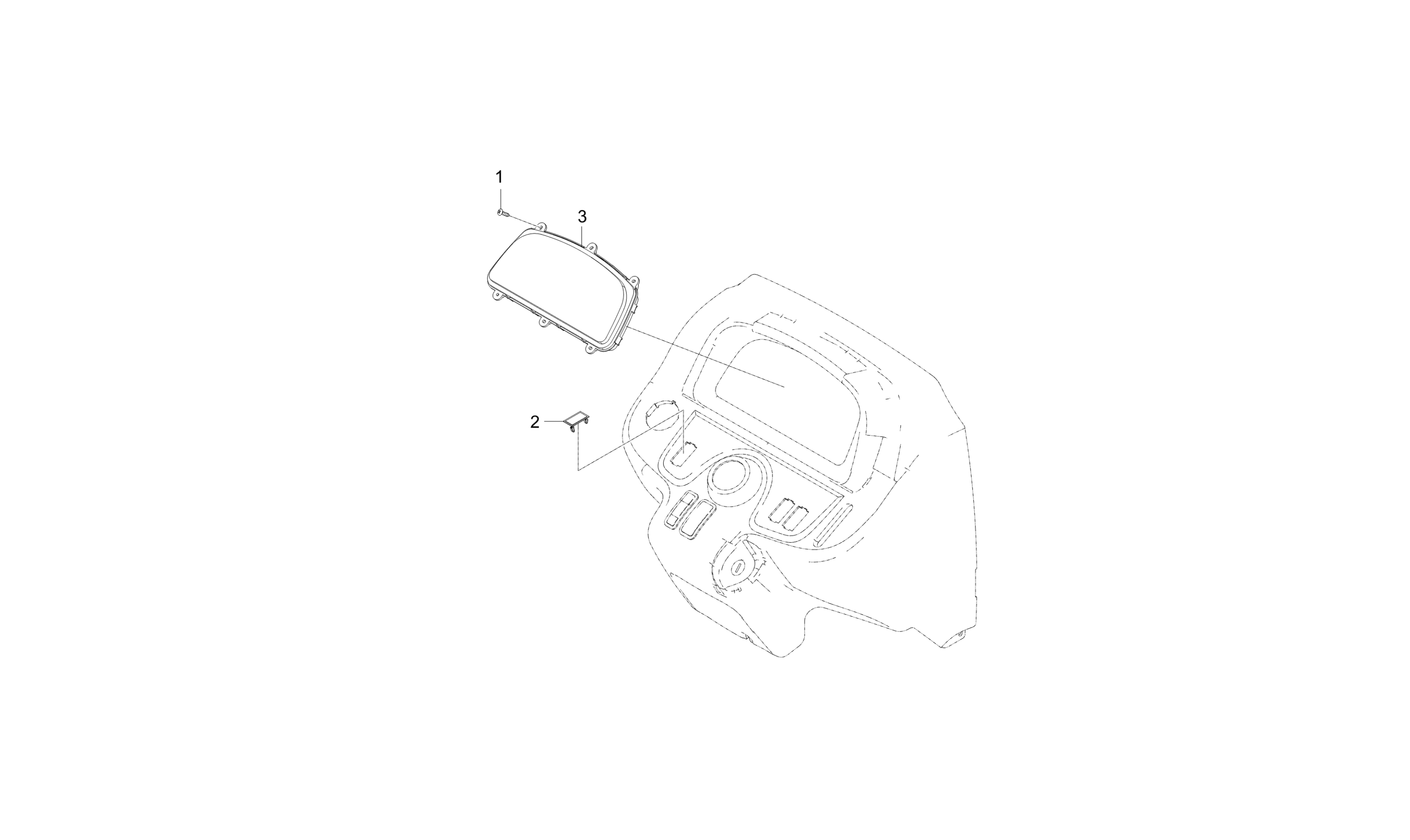

Diagram for DISPLAY CONTROL GROUP - TC2-G533010
  • 1 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 6 shown on diagram
    $0.79
  • 2 COVER

    COVER

    • Part No. T4025-68301
    • Applied Dates 2019-07-03 and up
    • 3 shown on diagram
    $5.49
  • 3

    ASSY PANEL, INSTRUMENT-TIER4 v

    • Part No. TC25-0060A
    • Applied Dates 2016-12-02 and up
    • Serial No. Up to UJJ800408
    • * multiple options for #3
    • 1 shown on diagram
    $519.99
  • 3

    ASSY PANEL, INSTRUMENT-TIER4 dnr v

    • Part No. TC25-0060B
    • Compatibility New repl old
    • Applied Dates 2018-06-20 to 2018-08-31
    • Serial No. UJJ800409 to UJJ800512
    • * multiple options for #3
    • 1 shown on diagram
    $489.99
  • 3

    ASSY PLATE,METER

    • Part No. TC25-0060C
    • Compatibility New repl old
    • Applied Dates 2018-09-01 to 2018-12-31
    • Serial No. UJJ800513 to VJJ800016
    • * multiple options for #3
    • 1 shown on diagram
    $.00
  • 3

    ASSY PLATE,METER v

    • Part No. TC25-0060D
    • Compatibility New repl old
    • Applied Dates 2019-02-04 and up
    • Serial No. VJJ800017 to WJJ800230
    • * multiple options for #3
    • 1 shown on diagram
    $519.99
  • 3

    ASSY PANEL, INSTRUMENT-TIER4 v

    • Part No. TC25-0060E
    • Compatibility Interchngable
    • * multiple options for #3
    • 1 shown on diagram
    $474.99
