RADIATOR GROUP - CK20M-T030A

Kioti TRACTOR | CK Series | CK20J

Diagram for RADIATOR GROUP - CK20M-T030A
  • 1

    NET,RADIATOR v

    • Part No. T2350-13112
    • 1 shown on diagram
    $144.99
  • 2

    GUIDE, NET

    • Part No. T2350-13121
    • 2 shown on diagram
    $52.99
  • 3

    ASSY,RADIATOR v

    • Part No. T2350-13511
    • Applied Dates Up to 2003-05-06
    • * multiple options for #3
    • 1 shown on diagram
    $944.99
  • 3

    ASSY RADIATOR v

    • Part No. T2350-13512
    • Compatibility New repl old
    • Applied Dates 2003-05-07 to 2007-10-05
    • Serial No. 319400041 and up
    • * multiple options for #3
    • 1 shown on diagram
    $1,239.99
  • 4

    SHIROUD,FAN

    • Part No. T2350-13521
    • Applied Dates Up to 2003-09-26
    • * multiple options for #4
    • 1 shown on diagram
    $97.99
  • 4

    ASS’Y, SHIROUD FAN v

    • Part No. T2350-13522
    • Compatibility New repl old
    • Applied Dates 2003-09-27 to 2007-05-17
    • Serial No. D19400001 and up
    • * multiple options for #4
    • 1 shown on diagram
    $84.99
  • 5

    PLATE, HOLDER(LH)

    • Part No. T2350-13531
    • Applied Dates Up to 2003-08-18
    • SPCC
    • * multiple options for #5
    • 1 shown on diagram
    $6.99
  • 5

    PLATE, HOLDER(LH)

    • Part No. T2350-13532
    • Compatibility New repl old
    • Applied Dates 2003-08-19 to 2007-10-05
    • Serial No. 319400321 and up
    • * multiple options for #5
    • 1 shown on diagram
    $8.49
  • 6

    PLATE, HOLDER(RH) dnr v

    • Part No. T2350-13541
    • Applied Dates Up to 2003-08-18
    • SPCC
    • * multiple options for #6
    • 1 shown on diagram
    $6.99
  • 6

    PLATE, HOLDER(RH) v

    • Part No. T2350-13542
    • Compatibility New repl old
    • Applied Dates 2003-08-19 to 2007-10-05
    • Serial No. 319400321 and up
    • * multiple options for #6
    • 1 shown on diagram
    $8.49
  • 7

    SUPPORT-RADIATOR LH v

    • Part No. T2350-50362
    • 1 shown on diagram
    $29.99
  • 8

    SUPPORT-RADIATOR RH v

    • Part No. T2350-50372
    • 1 shown on diagram
    $27.99
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.09

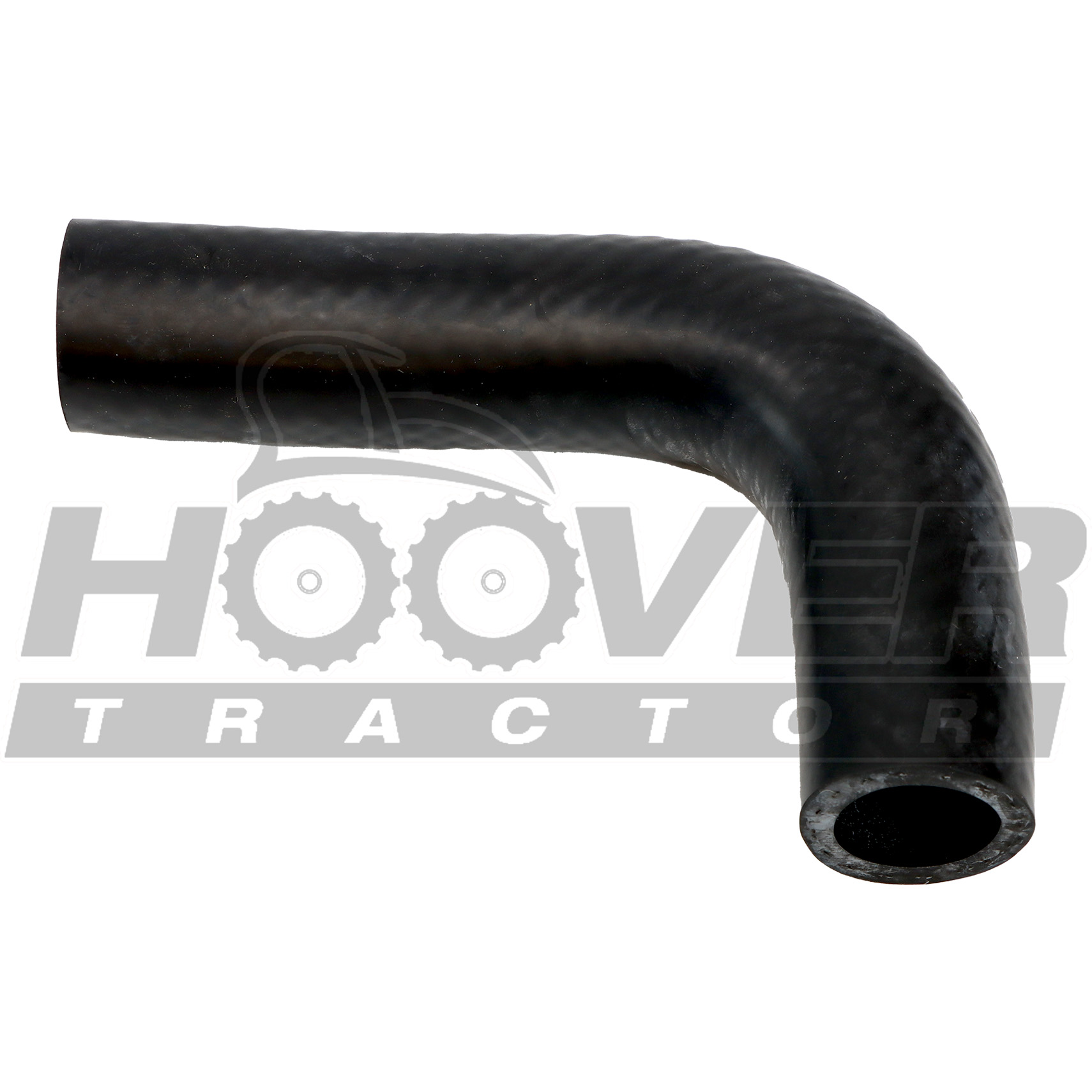

  • 10 HOSE 1, WATER

    HOSE 1, WATER

    • Part No. E5205-72863
    • 1 shown on diagram
    $21.99
  • 11

    BAND HOSE v

    • Part No. E5205-72781
    • Wire #35
    • 2 shown on diagram
    $3.49

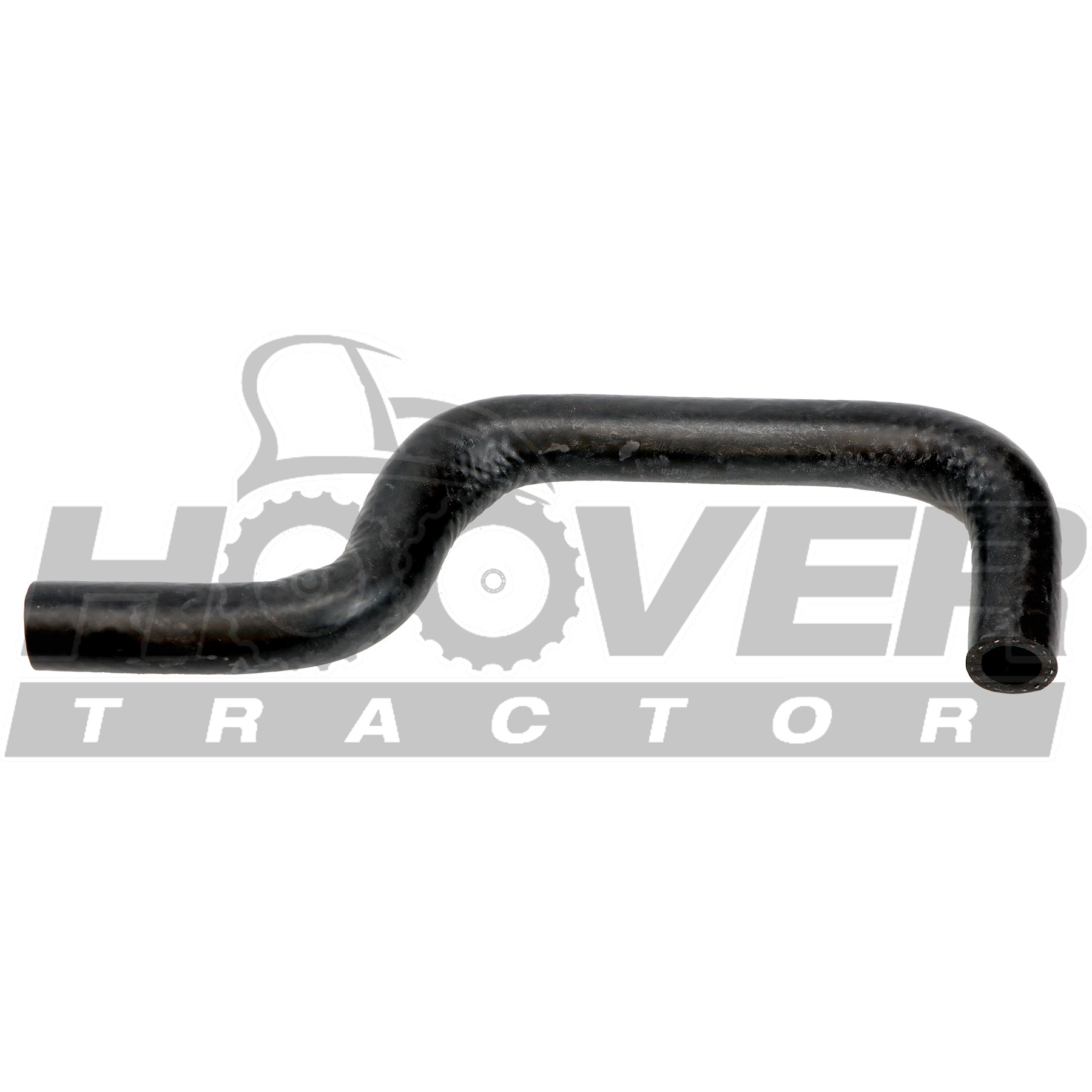

  • 12 HOSE, WATER RETURN

    HOSE, WATER RETURN

    • Part No. E5700-73382
    • 1 shown on diagram
    $11.99
  • 13

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • 2 shown on diagram
    $3.49

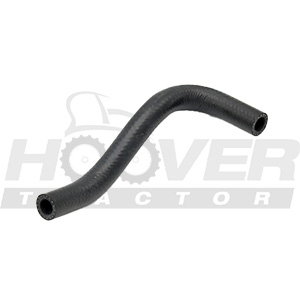

  • 14 Lower Drain Radiator Hose

    Lower Drain Radiator Hose

    • Part No. T2350-13551
    • 1 shown on diagram
    $17.99
  • 15

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • 2 shown on diagram
    $3.49
  • 16

    RUBBER 1

    • Part No. T2350-13561
    • Applied Dates Up to 2007-05-17
    • 1 shown on diagram
    $8.99
  • 17

    RUBBER 2

    • Part No. T2350-13571
    • Applied Dates Up to 2007-07-02
    • 2 shown on diagram
    $6.99
  • 18

    ROD(BONNET) v

    • Part No. T2350-50621
    • Applied Dates Up to 2003-05-06
    • * multiple options for #18
    • 1 shown on diagram
    $19.99
  • 18

    Rod (T2350-50622)

    • Part No. T2350-50622
    • Compatibility New repl old
    • Applied Dates 2003-05-07 and up
    • Serial No. 319400041 and up
    • * multiple options for #18
    • 1 shown on diagram
    $32.99
  • 19

    PLATE,LOOK

    • Part No. T2350-50641
    • T1.0
    • 2 shown on diagram
    $2.99
  • 20 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 2 shown on diagram
    $0.61
  • 21

    NUT, Replaced by 02014-50060

    • Part No. 02114-50060
    • 2 shown on diagram
    $0.00
  • 22

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 23

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 4 shown on diagram
    $4.49
  • 24

    GROMMET

    • Part No. T2350-50431
    • 4 shown on diagram
    $4.99
  • 25

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 26 GROMMET

    GROMMET

    • Part No. T4682-50251
    • 2 shown on diagram
    $1.89
  • 27

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 28

    SPONGE

    • Part No. T2350-50391
    • T25
    • 2 shown on diagram
    $9.99
  • 29

    WATER TANK ASSY

    • Part No. T2350-13601
    • * multiple options for #29
    • 1 shown on diagram
    $69.99
  • 29

    WATER TANK ASSY

    • Part No. T2350-13602
    • Compatibility New repl old
    • * multiple options for #29
    • 1 shown on diagram
    $55.99
  • 29

    ASSY RESERVOIR, RADIATOR v

    • Part No. T2350-13603
    • Compatibility Interchngable
    • * multiple options for #29
    • 1 shown on diagram
    $69.99
  • 30

    TANK, WATER dnr v

    • Part No. T2350-13611
    • 1 shown on diagram
    $37.99
  • 31

    CAP dnr v

    • Part No. 15531-7242-2
    • 1 shown on diagram
    $5.99
  • 32 Over Flow Hose 1

    Over Flow Hose 1

    • Part No. E5800-72711
    • OD13*ID8*L580
    • 1 shown on diagram
    $14.99
  • 33 Hose, 1 (T2350-13601004)

    Hose, 1 (T2350-13601004)

    • Part No. T2350-13601004
    • 1 shown on diagram
    $5.99
  • 34

    PACKING

    • Part No. 15532-7243-2
    • 1 shown on diagram
    $3.49
  • 35

    Hose, 2 (T2350-13601006)

    • Part No. T2350-13601006
    • 1 shown on diagram
    $3.99
  • 36

    Hose Clamp (14971-4275-1)

    • Part No. 14971-4275-1
    • DIA1.0*ID7.8
    • 1 shown on diagram
    $1.59
  • 37 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 38

    CAP v, Replaced by P15110900

    • Part No. T4686-72161010
    • 1 shown on diagram
    $0.00
