POSITION CONTROL LEVER GROUP - CK20M-T710A

Kioti TRACTOR | CK Series | CK20J

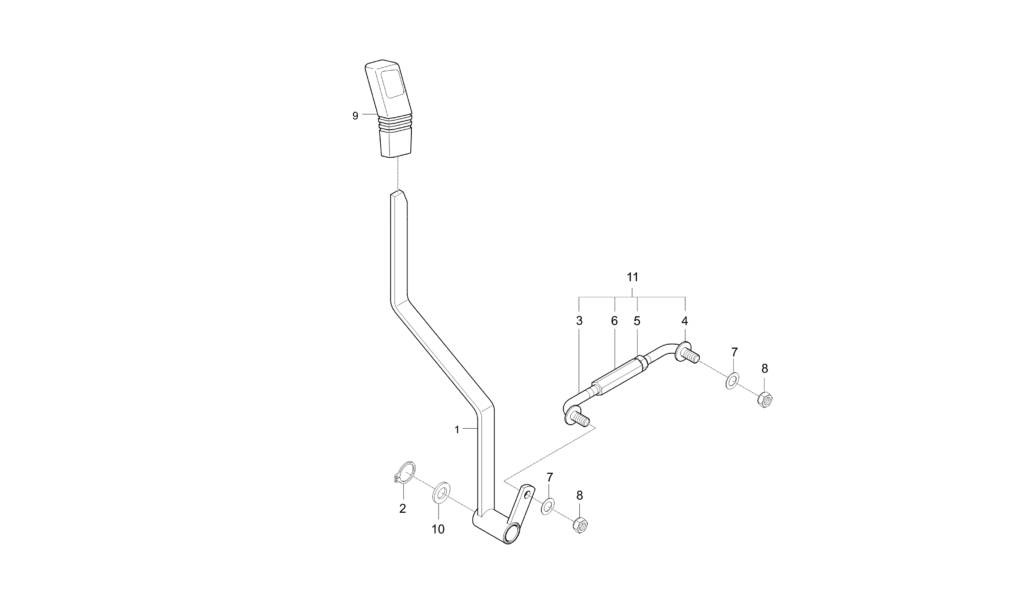

Diagram for POSITION CONTROL LEVER GROUP - CK20M-T710A
  • 1

    LEVER,CONTRAL dnr v

    • Part No. T2350-65411
    • Applied Dates Up to 2003-05-06
    • * multiple options for #1
    • 1 shown on diagram
    $37.99
  • 1

    LEVER,POSITION CONTROL

    • Part No. T2350-65412
    • Compatibility New repl old
    • Applied Dates 2003-05-07 and up
    • Serial No. 319400041 to 319400260
    • * multiple options for #1
    • 1 shown on diagram
    $57.99
  • 1

    LEVER, POSITING CONTROL

    • Part No. T2350-65412BB
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $57.99
  • 2 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • DIA16
    • 1 shown on diagram
    $0.85
  • 3

    Joint Bolt ( K2400-22521) obs

    • Part No. K2400-22521
    • Applied Dates Up to 2007-07-22
    • Serial No. Up to 319400260
    • * multiple options for #3
    • 1 shown on diagram
    $51.99
  • 3

    ROD, 2

    • Part No. T2350-65431003
    • Compatibility Call for compat
    • Applied Dates 2007-07-23 and up
    • Serial No. G19400001 and up
    • Ø8.0
    • * multiple options for #3
    • 1 shown on diagram
    $18.99
  • 4

    Boll Joint (RH) (K2400-22541)

    • Part No. K2400-22541
    • Applied Dates Up to 2007-07-22
    • Serial No. Up to 319400260
    • M8*P1.25
    • * multiple options for #4
    • 1 shown on diagram
    $46.99
  • 4

    ROD, 1

    • Part No. T2350-65431002
    • Compatibility Call for compat
    • Applied Dates 2007-07-23 and up
    • Ø8
    • * multiple options for #4
    • 1 shown on diagram
    $15.99
  • 5 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates 2007-07-07 to 2007-07-22
    • Serial No. 319400001 to 319400260
    • M8*P1.25
    • * multiple options for #5
    • 1 shown on diagram
    $0.67
  • 5 NUT

    NUT

    • Part No. 02114-50080
    • Compatibility Call for compat
    • Applied Dates 2007-07-23 and up
    • M8*P1.25
    • * multiple options for #5
    • 1 shown on diagram
    $0.67
  • 6

    ROD

    • Part No. T2350-65421
    • Applied Dates Up to 2007-07-22
    • * multiple options for #6
    • 1 shown on diagram
    $5.49
  • 6

    Turn Buckle (66591-4241-4)

    • Part No. 66591-4241-4
    • Compatibility Call for compat
    • Applied Dates 2007-07-23 and up
    • HEX12
    • * multiple options for #6
    • 1 shown on diagram
    $15.99
  • 7 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates 2002-12-13 to 2007-07-22
    • Serial No. 219400001 to 319400260
    • M08
    • * multiple options for #7
    • 2 shown on diagram
    $0.61
  • 7 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Compatibility Call for compat
    • Applied Dates 2007-07-23 to 2014-07-13
    • * multiple options for #7
    • 2 shown on diagram
    $0.79
  • 8 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates Up to 2007-07-22
    • M8*P1.25
    • * multiple options for #8
    • 2 shown on diagram
    $0.67
  • 8 NUT, LOCK(M8)

    NUT, LOCK(M8)

    • Part No. 41011-5151-4
    • Compatibility New repl old
    • Applied Dates 2007-07-23 and up
    • Serial No. G19400001 and up
    • * multiple options for #8
    • 2 shown on diagram
    $2.49
  • 9

    Grip, Replaced by T2350-24462

    • Part No. T2350-24461
    • Applied Dates Up to 2003-07-07
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    GRIP

    • Part No. T2350-24462
    • Compatibility Interchngable
    • Applied Dates 2003-07-08 and up
    • Serial No. 319400321 and up
    • * multiple options for #9
    • 1 shown on diagram
    $9.99
  • 9

    Position Control Grip (T2368-24461)

    • Part No. T2368-24461
    • Compatibility New repl old
    • Applied Dates 2011-07-01 and up
    • * multiple options for #9
    • 1 shown on diagram
    $9.99
  • 10

    Flat Washer M16

    • Part No. 04013-50160
    • Applied Dates 2003-06-19 and up
    • M16
    • 1 shown on diagram
    $1.59
  • 11 Position Control Rod ( T2350-65431) dnr

    Position Control Rod ( T2350-65431) dnr

    • Part No. T2350-65431
    • Applied Dates 2007-07-23 and up
    • 1 shown on diagram
    $47.99
