ACCELERATOR GROUP - CK20M-T800A

Kioti TRACTOR | CK Series | CK20J

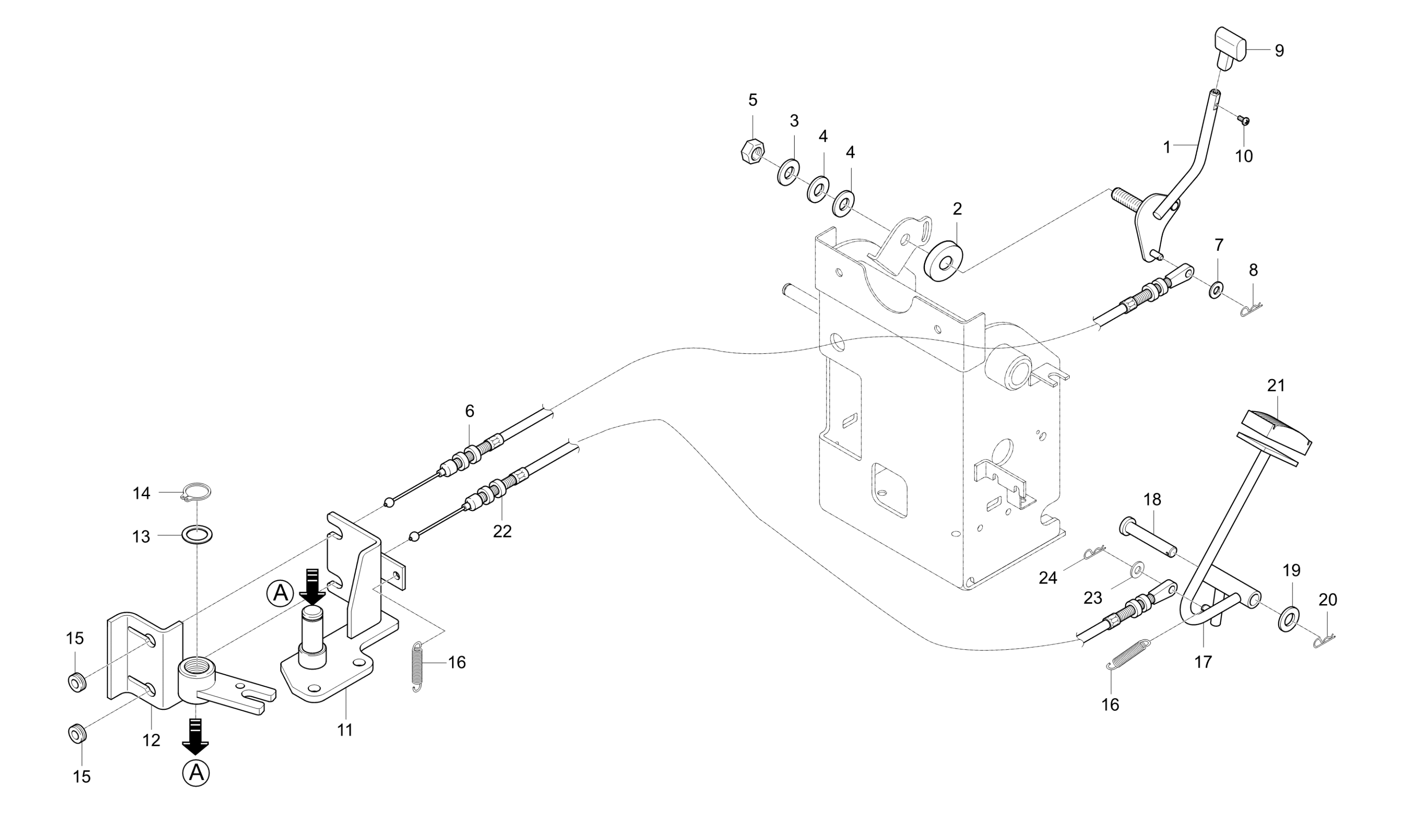

Diagram for ACCELERATOR GROUP - CK20M-T800A
  • 1

    LEVER 1,ACCEL

    • Part No. T2350-60083
    • 1 shown on diagram
    $39.99
  • 2

    LINING

    • Part No. T2670-60091
    • 1 shown on diagram
    $18.99
  • 3

    WASHER

    • Part No. T2350-60191
    • Applied Dates Up to 2003-05-06
    • T1.6
    • * multiple options for #3
    • 1 shown on diagram
    $0.71
  • 3 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • Compatibility Interchngable
    • Applied Dates 2003-01-27 to 2002-11-25
    • Serial No. 319400001 to 319400260
    • M12
    • * multiple options for #3
    • 1 shown on diagram
    $0.85
  • 4

    SPRING

    • Part No. T4835-17241
    • 2 shown on diagram
    $4.49
  • 5

    NUT

    • Part No. 02174-50120
    • Applied Dates Up to 2007-09-03
    • M12*P1.25
    • 2 shown on diagram
    $0.85
  • 6

    CABEL 1, ACCEL

    • Part No. T2350-60021
    • 1 shown on diagram
    $23.99
  • 7 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 8

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 9

    GRIP v

    • Part No. T2350-60141
    • Applied Dates Up to 2003-11-25
    • * multiple options for #9
    • 1 shown on diagram
    $9.99
  • 9

    GRIP, LEVER v

    • Part No. T2350-60142
    • Compatibility New repl old
    • Applied Dates 2003-11-26 to 2009-01-15
    • Serial No. D19400001 and up
    • * multiple options for #9
    • 1 shown on diagram
    $13.99
  • 10

    SCREW v

    • Part No. 03024-50516
    • 1 shown on diagram
    $0.79
  • 11

    BRACKET 1 BRACKET

    • Part No. T2350-60062
    • 1 shown on diagram
    $19.99
  • 12

    SUPPORT, ACCLE2

    • Part No. T2350-60071
    • 1 shown on diagram
    $29.99
  • 13 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $0.85
  • 14

    RING,SNAP

    • Part No. 04612-00120
    • #12
    • 1 shown on diagram
    $0.79
  • 15

    GROMMET

    • Part No. T4682-55801
    • 2 shown on diagram
    $3.99
  • 16

    SPRING

    • Part No. T2350-60131
    • DIA1.0
    • 2 shown on diagram
    $4.99
  • 17

    LEVER 3, ACCEL

    • Part No. T2350-60112
    • * multiple options for #17
    • 1 shown on diagram
    $14.99
  • 17

    Accelerator Lever 3, (T2350-60113)

    • Part No. T2350-60113
    • Compatibility Old repl new
    • * multiple options for #17
    • 1 shown on diagram
    $14.99
  • 18

    Pin, Joint M8x65mm

    • Part No. 05122-50865
    • 1 shown on diagram
    $3.99
  • 19 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 1 shown on diagram
    $0.79
  • 20 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
  • 21

    RUBBER, PEDAL

    • Part No. T2350-26661
    • 1 shown on diagram
    $7.99
  • 22

    CABEL 2, ACCEL

    • Part No. T2350-60051
    • 1 shown on diagram
    $27.99
  • 23 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 24

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
