SEAT GROUP - CK20M-T850A

Kioti TRACTOR | CK Series | CK20J

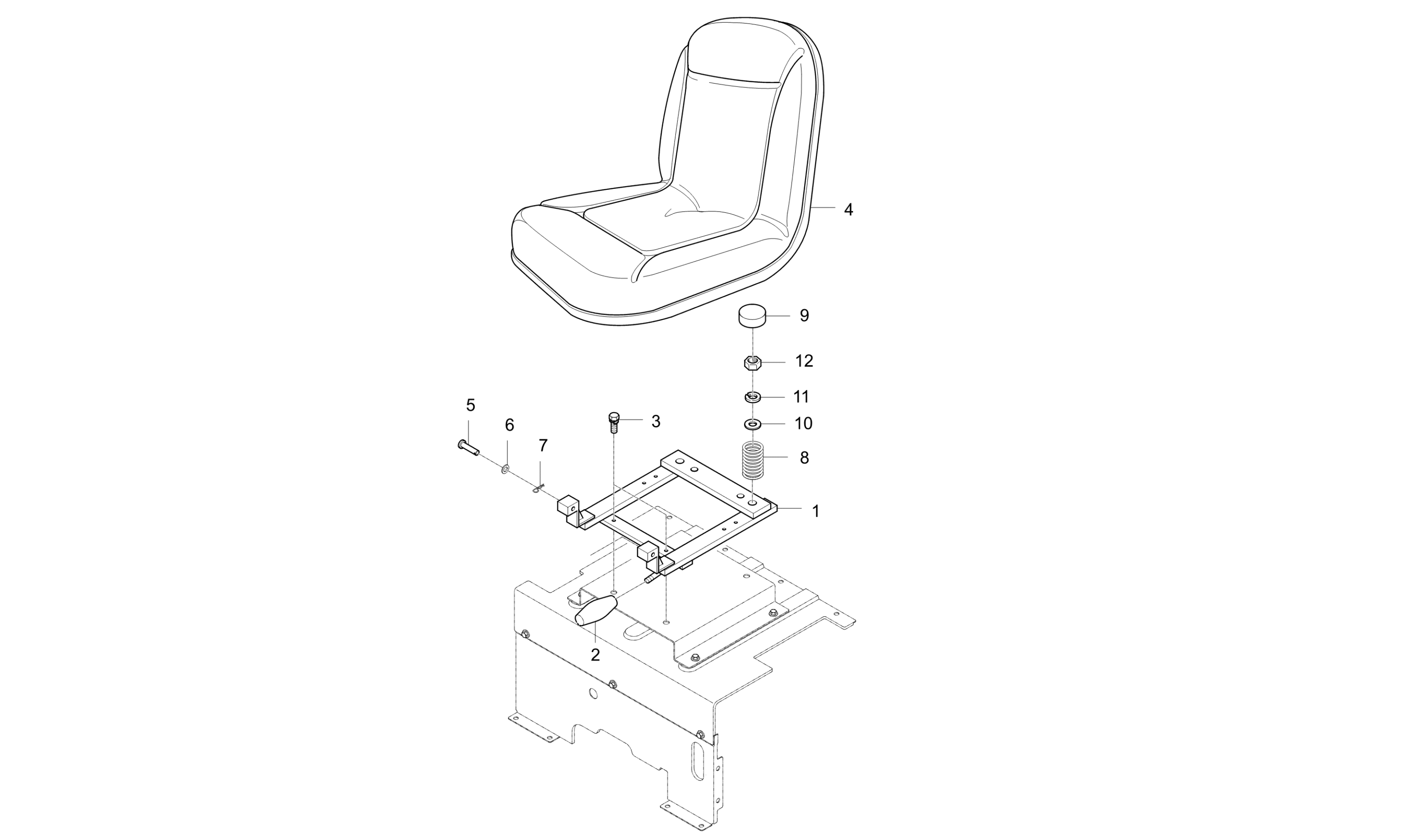

Diagram for SEAT GROUP - CK20M-T850A
  • 1

    ASSY,SEAT SUPPORT

    • Part No. T2350-18402
    • Applied Dates Up to 2003-03-14
    • * multiple options for #1
    • 1 shown on diagram
    $99.99
  • 1

    ASSY,SEAT SUPPORT

    • Part No. T2350-18403
    • Compatibility New repl old
    • Applied Dates 2003-03-15 to 2004-12-29
    • Serial No. 319400041 to D19400150
    • * multiple options for #1
    • 1 shown on diagram
    $129.99
  • 2

    KNOB

    • Part No. 76KP-1737-1
    • 1 shown on diagram
    $1.49
  • 3 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • M10*P1.25
    • 4 shown on diagram
    $2.49
  • 4

    ASSY, SEAT V

    • Part No. T2350-19501
    • 1 shown on diagram
    $389.99
  • 5 Pin, Joint M10x55mm

    Pin, Joint M10x55mm

    • Part No. 05122-51055
    • DIA10XL55
    • 2 shown on diagram
    $3.99
  • 6 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 7

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 8

    SPRING

    • Part No. 84612-1851-0
    • DIA5.5
    • 2 shown on diagram
    $64.99
  • 9

    CUSHION

    • Part No. 76591-4155-1
    • 2 shown on diagram
    $7.49
  • 10 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 11 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 12 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.67
