SEAT FLOOR GROUP - CK20ME-T830A

Kioti TRACTOR | CK Series | CK20J

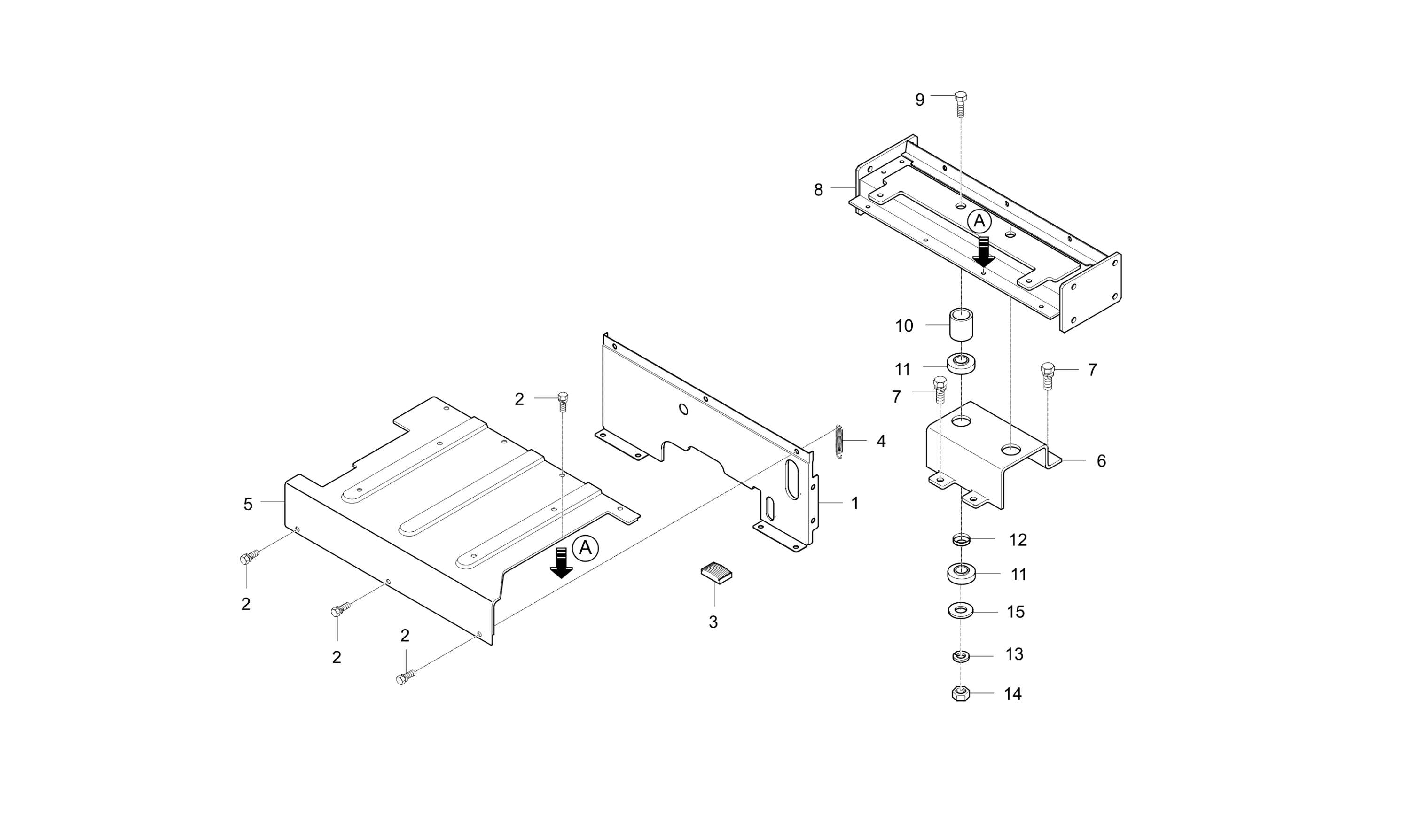

Diagram for SEAT FLOOR GROUP - CK20ME-T830A
  • 1

    COVER, FRONT

    • Part No. T2350-70412
    • 1 shown on diagram
    $77.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 7 shown on diagram
    $1.79
  • 3

    RUBBER, PEDAL

    • Part No. T2350-26661
    • Applied Dates Up to 2007-03-29
    • 1 shown on diagram
    $7.99
  • 4

    SPRING

    • Part No. T4520-62331
    • DIA2
    • 1 shown on diagram
    $5.99
  • 5

    Front Cover (T2350-70432)

    • Part No. T2350-70432
    • * multiple options for #5
    • 1 shown on diagram
    $99.99
  • 5

    Upper Cover (T2350-70433)

    • Part No. T2350-70433
    • Compatibility Interchngable
    • Applied Dates 2012-09-29 and up
    • * multiple options for #5
    • 1 shown on diagram
    $78.99
  • 6

    SUPPORT, ROOF dnr v

    • Part No. T2350-95221
    • T6.0
    • 1 shown on diagram
    $71.99
  • 7 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • Applied Dates Up to 2003-06-18
    • M10*P1.25
    • 4 shown on diagram
    $2.49
  • 8

    SUPPORT, FENDER

    • Part No. T2350-95213
    • 1 shown on diagram
    $294.99
  • 9

    BOLT

    • Part No. T2350-95242
    • 2 shown on diagram
    $8.49
  • 10

    Collar (T2350-95231)

    • Part No. T2350-95231
    • DIA25
    • 2 shown on diagram
    $6.99
  • 11

    RUBBER, CUSHION

    • Part No. T2350-95251
    • 4 shown on diagram
    $9.49
  • 12

    Spacer (T2350-95261)

    • Part No. T2350-95261
    • Applied Dates Up to 2007-12-19
    • T4.5
    • * multiple options for #12
    • 2 shown on diagram
    $36.99
  • 12 Flat Washer M16

    Flat Washer M16

    • Part No. 04015-50160
    • Compatibility Interchngable
    • Applied Dates 2008-01-01 and up
    • Serial No. H19400001 and up
    • * multiple options for #12
    • 2 shown on diagram
    $4.49
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 4 shown on diagram
    $1.29
  • 14 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 15 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 2 shown on diagram
    $1.19
