STEP GROUP - CK20M-T840A

Kioti TRACTOR | CK Series | CK20J

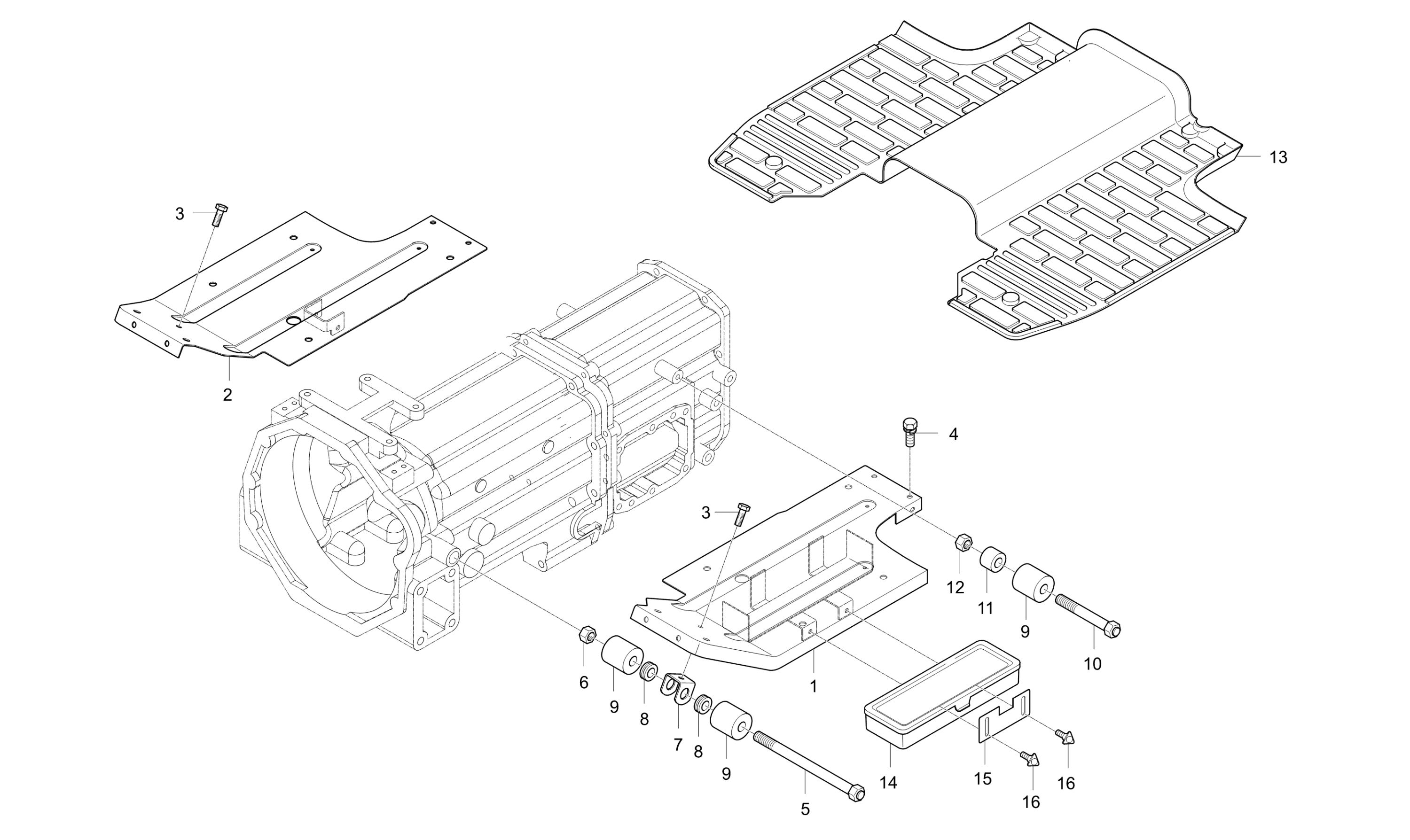

Diagram for STEP GROUP - CK20M-T840A
  • 1

    (LH) Step (T2350-70112)

    • Part No. T2350-70112
    • 1 shown on diagram
    $124.99
  • 2

    STEP(RH)

    • Part No. T2350-70122
    • Applied Dates Up to 2007-12-30
    • * multiple options for #2
    • 1 shown on diagram
    $114.99
  • 2

    PLATE RH, STEP

    • Part No. T2350-70124
    • Compatibility New repl old
    • Applied Dates 2008-07-01 and up
    • * multiple options for #2
    • 1 shown on diagram
    $114.99
  • 2

    RH Step Plate

    • Part No. T2350-70124OE
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $114.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 5

    Front Bolt, Replaced by T4157-70151

    • Part No. T2350-70151
    • Applied Dates Up to 2003-06-18
    • * multiple options for #5
    • 2 shown on diagram
    $13.99
  • 5

    Bolt, Front, Replaced by T4157-70151

    • Part No. T2350-70152
    • Compatibility Interchngable
    • Applied Dates 2003-06-19 and up
    • Serial No. 319400141 and up
    • * multiple options for #5
    • 2 shown on diagram
    $0.00
  • 6 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 7

    BRACKET

    • Part No. T2350-70161
    • 2 shown on diagram
    $6.49
  • 8

    GROMMET

    • Part No. T2350-70171
    • 4 shown on diagram
    $3.99
  • 9

    CUSHION v

    • Part No. T2350-70181
    • Applied Dates 2004-11-25 to 2007-03-12
    • 6 shown on diagram
    $11.99
  • 10

    Rear Bolt (T2350-70191)

    • Part No. T2350-70191
    • Applied Dates Up to 2003-06-18
    • * multiple options for #10
    • 2 shown on diagram
    $12.99
  • 10

    BOLT(FRONT)

    • Part No. T2350-70192
    • Compatibility Interchngable
    • Applied Dates 2003-06-25 and up
    • Serial No. 319400141 and up
    • * multiple options for #10
    • 2 shown on diagram
    $15.99
  • 11

    SPACER

    • Part No. T2350-70201
    • DIA21.7*T2.3
    • 2 shown on diagram
    $3.49
  • 12 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 13

    MAT, STEP

    • Part No. T2350-70232
    • * multiple options for #13
    • 1 shown on diagram
    $224.99
  • 13

    Step Mat (T2350-70233)

    • Part No. T2350-70233
    • Compatibility Interchngable
    • Applied Dates 2012-09-30 and up
    • * multiple options for #13
    • 1 shown on diagram
    $224.99
  • 14

    BOX,TOOL dnr v

    • Part No. T2350-70491
    • Applied Dates Up to 2003-09-26
    • * multiple options for #14
    • 1 shown on diagram
    $16.99
  • 14

    BOX, TOOL

    • Part No. T2350-70492
    • Compatibility Interchngable
    • Applied Dates 2003-12-02 and up
    • Serial No. 319400321 and up
    • * multiple options for #14
    • 1 shown on diagram
    $26.99
  • 15

    Plate 1.2mm

    • Part No. T2350-70141
    • T1.2
    • 1 shown on diagram
    $8.99
  • 16 BOLT, KNOB

    BOLT, KNOB

    • Part No. P4410-98251
    • 2 shown on diagram
    $4.49
