ROPS GROUP - CK20M-T920A

Kioti TRACTOR | CK Series | CK20J

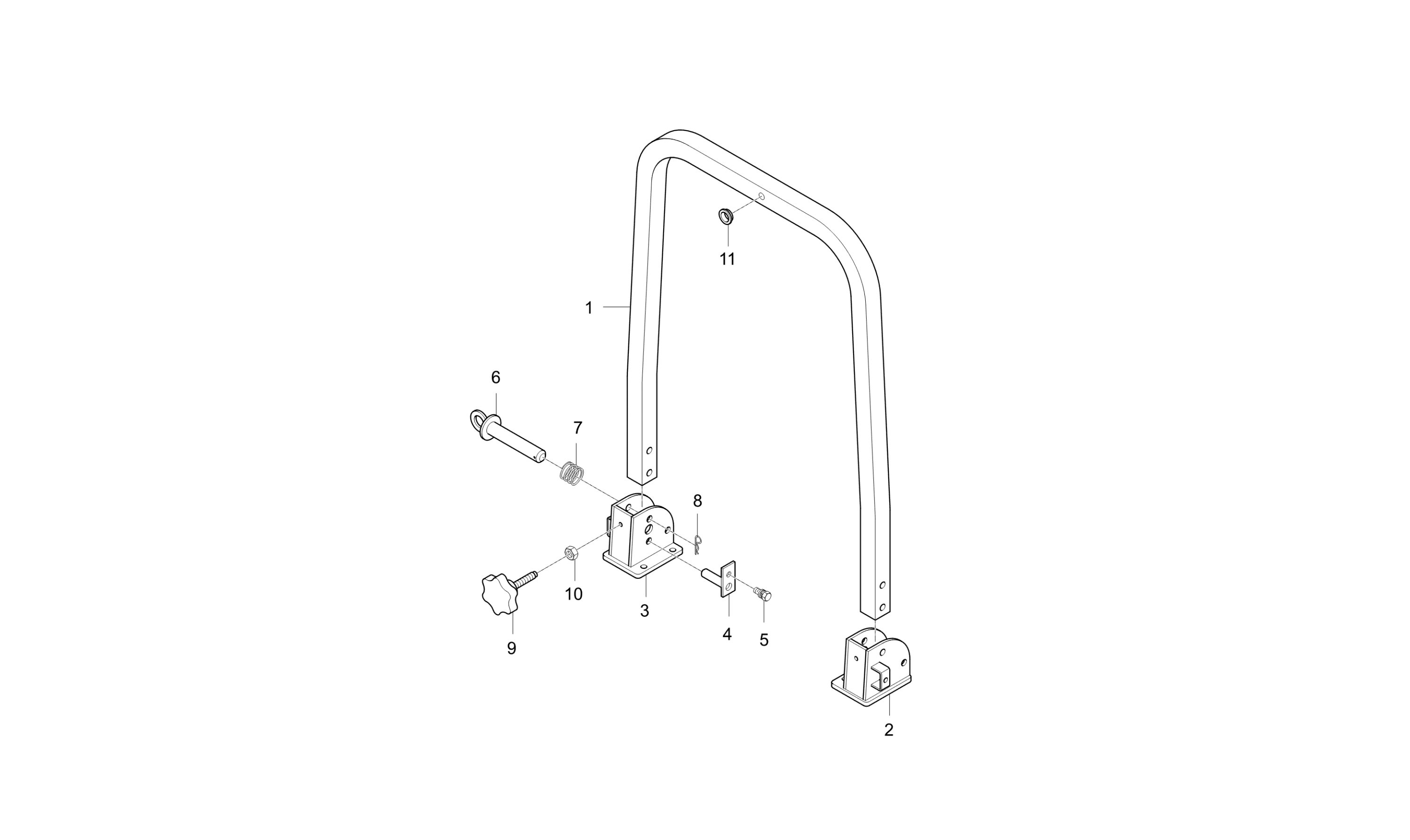

Diagram for ROPS GROUP - CK20M-T920A
  • 1

    ASS’Y, ROPS

    • Part No. T2355-97111
    • Applied Dates Up to 2004-12-29
    • * multiple options for #1
    • 1 shown on diagram
    $279.99
  • 1

    ASS’Y, ROPS dnr v

    • Part No. T2355-97112
    • Compatibility New repl old
    • Applied Dates 2004-12-30 to 2006-11-01
    • Serial No. E19400211 to F19400320
    • * multiple options for #1
    • 1 shown on diagram
    $374.99
  • 2

    SUPPORT LH V

    • Part No. T2355-97121
    • * multiple options for #2
    • 1 shown on diagram
    $99.99
  • 2

    SUPPORT, LH

    • Part No. T2355-97122
    • Compatibility Call for compat
    • * multiple options for #2
    • 1 shown on diagram
    $184.99
  • 3

    SUPPORTRH v

    • Part No. T2355-97131
    • * multiple options for #3
    • 1 shown on diagram
    $109.99
  • 3

    SUPPORT, RH

    • Part No. T2355-97132
    • Compatibility Call for compat
    • * multiple options for #3
    • 1 shown on diagram
    $184.99
  • 4 PIN, SET ROPS

    PIN, SET ROPS

    • Part No. T2185-97141
    • 2 shown on diagram
    $19.99
  • 5 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • Applied Dates Up to 2005-06-15
    • M10*P1.25
    • * multiple options for #5
    • 2 shown on diagram
    $2.49
  • 5

    BOLT

    • Part No. 01133-51020
    • Compatibility New repl old
    • M10XP1.25
    • * multiple options for #5
    • 2 shown on diagram
    $2.99
  • 6

    PIN , SET B ROPS 16×77 usable

    • Part No. T2185-97152
    • Applied Dates 2005-01-01 to 2005-08-17
    • Serial No. E19400001 to E19400130
    • * multiple options for #6
    • 2 shown on diagram
    $23.99
  • 6

    PIN, SET B ROPS

    • Part No. T2355-97151
    • Compatibility New repl old
    • Applied Dates 2005-08-22 and up
    • Serial No. E19400211 and up
    • * multiple options for #6
    • 2 shown on diagram
    $21.99
  • 7

    Spring (T2185-97161)

    • Part No. T2185-97161
    • Applied Dates Up to 2007-03-29
    • 2 shown on diagram
    $5.99
  • 8 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 2 shown on diagram
    $2.99
  • 9 BOLT, GRIP V, Replaced by T2185-97182

    BOLT, GRIP V, Replaced by T2185-97182

    • Part No. T2185-97181
    • Applied Dates 2005-01-01 to 2006-05-30
    • Serial No. E19400001 to E19400130
    • * multiple options for #9
    • 2 shown on diagram
    $0.00
  • 9 BOLT V

    BOLT V

    • Part No. T2185-97182
    • Compatibility New repl old
    • Applied Dates 2006-12-31 to 2012-10-17
    • Serial No. F19400321 and up
    • * multiple options for #9
    • 2 shown on diagram
    $34.99

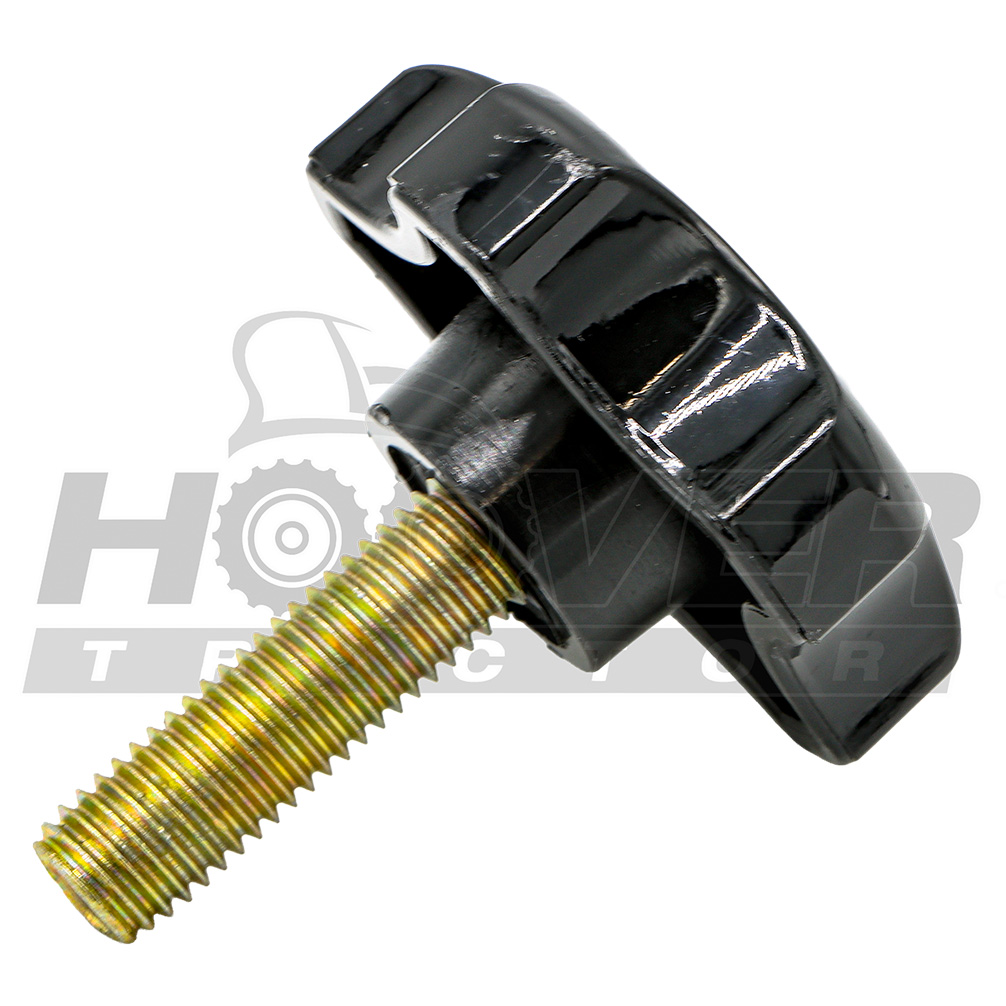

  • 9 GRIP, LOCK

    GRIP, LOCK

    • Part No. T4687-88102
    • Compatibility Call for compat
    • Applied Dates 2012-10-18 to 2012-12-27
    • * multiple options for #9
    • 2 shown on diagram
    $15.99
  • 9

    BOLT

    • Part No. T4665-97351
    • Compatibility Interchngable
    • Applied Dates 2014-12-10 and up
    • M12XP1.75
    • * multiple options for #9
    • 2 shown on diagram
    $3.99
  • 10 NUT

    NUT

    • Part No. 02074-50120
    • Applied Dates 2004-12-18 to 2004-12-13
    • M12XP1.25
    • * multiple options for #10
    • 2 shown on diagram
    $0.85
  • 10

    NUT

    • Part No. 02172-50120
    • Compatibility Interchngable
    • Applied Dates 2004-12-14 to 2007-12-20
    • Serial No. D19400151 and up
    • * multiple options for #10
    • 2 shown on diagram
    $0.79
  • 10

    NUT

    • Part No. T4668-97331
    • Compatibility Call for compat
    • Applied Dates 2012-10-18 and up
    • M12XP1.75
    • * multiple options for #10
    • 2 shown on diagram
    $1.59
  • 11

    Grommet ( T4620-60151)

    • Part No. T4620-60151
    • Applied Dates 2005-01-01 to 2005-09-13
    • Serial No. E19400001 to E19400130
    • * multiple options for #11
    • 1 shown on diagram
    $5.49
  • 11 PLUG

    PLUG

    • Part No. T4625-29291
    • Compatibility New repl old
    • Applied Dates 2005-09-14 to 2007-04-25
    • * multiple options for #11
    • 1 shown on diagram
    $1.79
