CYLINDER BLOCK GROUP - EC1-G111002

Kioti TRACTOR | CK Series | CK20HS

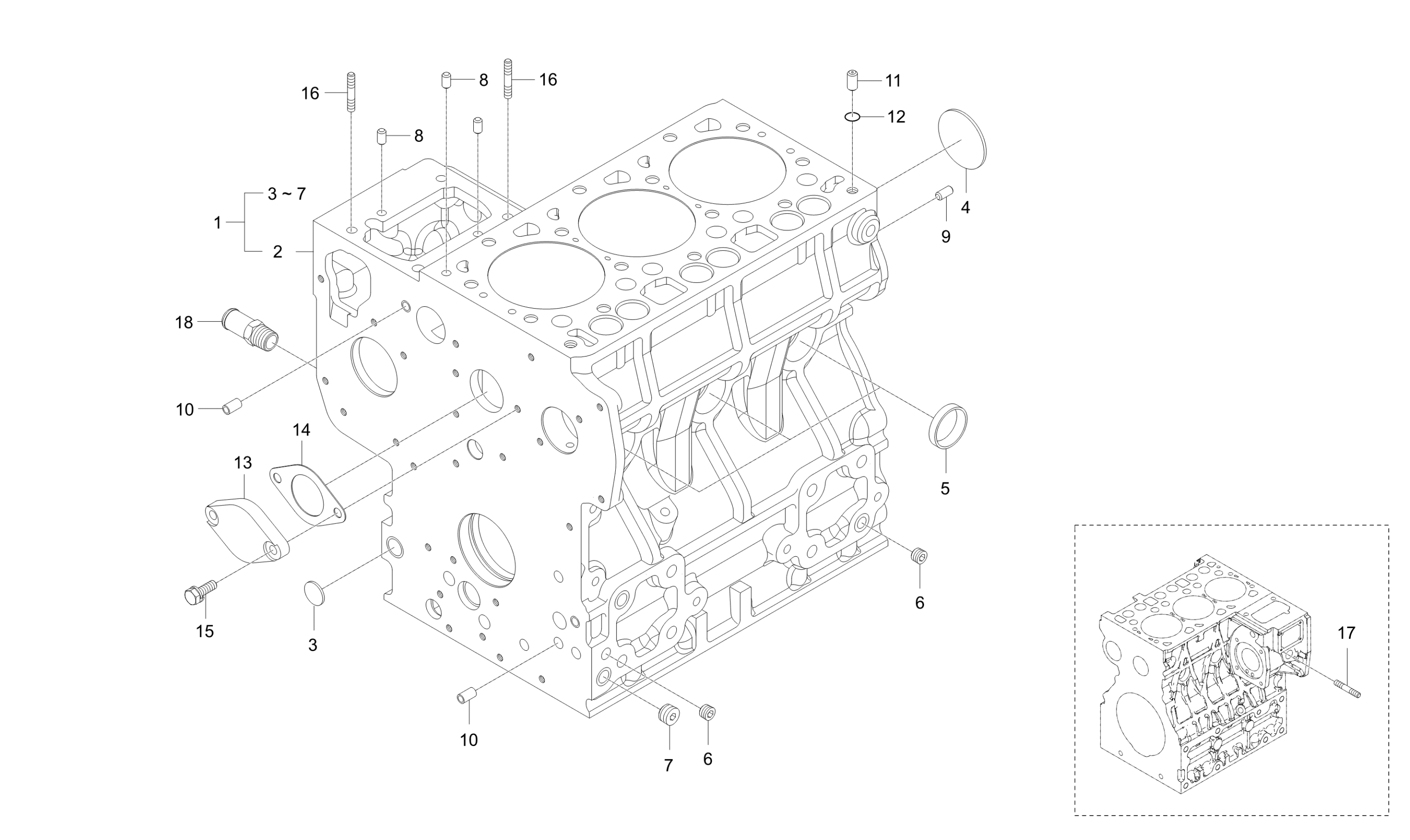

Diagram for CYLINDER BLOCK GROUP - EC1-G111002
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. E5763-01014
    • 1 shown on diagram
    $0.00
  • 2

    CYLINDER BLOCK

    • Part No. E5763-01114
    • 1 shown on diagram
    $0.00
  • 3 PLUG

    PLUG

    • Part No. 06311-75015
    • T1.6*18*18
    • 3 shown on diagram
    $1.99
  • 4

    PLUG

    • Part No. 06311-75040
    • 1 shown on diagram
    $3.49
  • 5 PLUG 30mm

    PLUG 30mm

    • Part No. 15321-9626-3
    • T1.6*50*50
    • 6 shown on diagram
    $4.49
  • 6 PLUG

    PLUG

    • Part No. E5900-96022
    • 9 shown on diagram
    $3.99
  • 7

    PLUG

    • Part No. E5900-96032
    • 1 shown on diagram
    $2.49
  • 8

    Parallel Pin (05012-00609)

    • Part No. 05012-00609
    • 4 shown on diagram
    $1.49
  • 9

    PIN, PARALLEL

    • Part No. 05012-00814
    • DIA10*20
    • 2 shown on diagram
    $1.49
  • 10

    PIN, TUBE

    • Part No. E5205-33961
    • DIA10*18
    • 2 shown on diagram
    $4.99
  • 11

    PIN, TUBE

    • Part No. 15221-3365-1
    • DIA8*18
    • 1 shown on diagram
    $7.49
  • 12 O RING

    O RING

    • Part No. E5500-33702
    • 1 shown on diagram
    $2.99
  • 13

    COVER

    • Part No. E5205-73911
    • T10*50*60
    • * multiple options for #13
    • 1 shown on diagram
    $14.99
  • 13

    COVER

    • Part No. E5205-73912
    • Compatibility New repl old
    • T10*50*60
    • * multiple options for #13
    • 1 shown on diagram
    $15.99
  • 14

    GASKET

    • Part No. E5700-73922
    • T0.5*65*49
    • 1 shown on diagram
    $3.99
  • 15

    BOLT w- WASHER

    • Part No. 01023-50618
    • M6XP1.0
    • 2 shown on diagram
    $1.79
  • 16 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 2 shown on diagram
    $3.99
  • 17

    STUD

    • Part No. 01513-50618
    • M6*1.0
    • 2 shown on diagram
    $3.49
  • 18

    Water Return Pipe (E5500-73343)

    • Part No. E5500-73343
    • 1 shown on diagram
    $9.99
