SPEED CONTROL LEVER GROUP - EC1-G153006

Kioti TRACTOR | CK Series | CK20HS

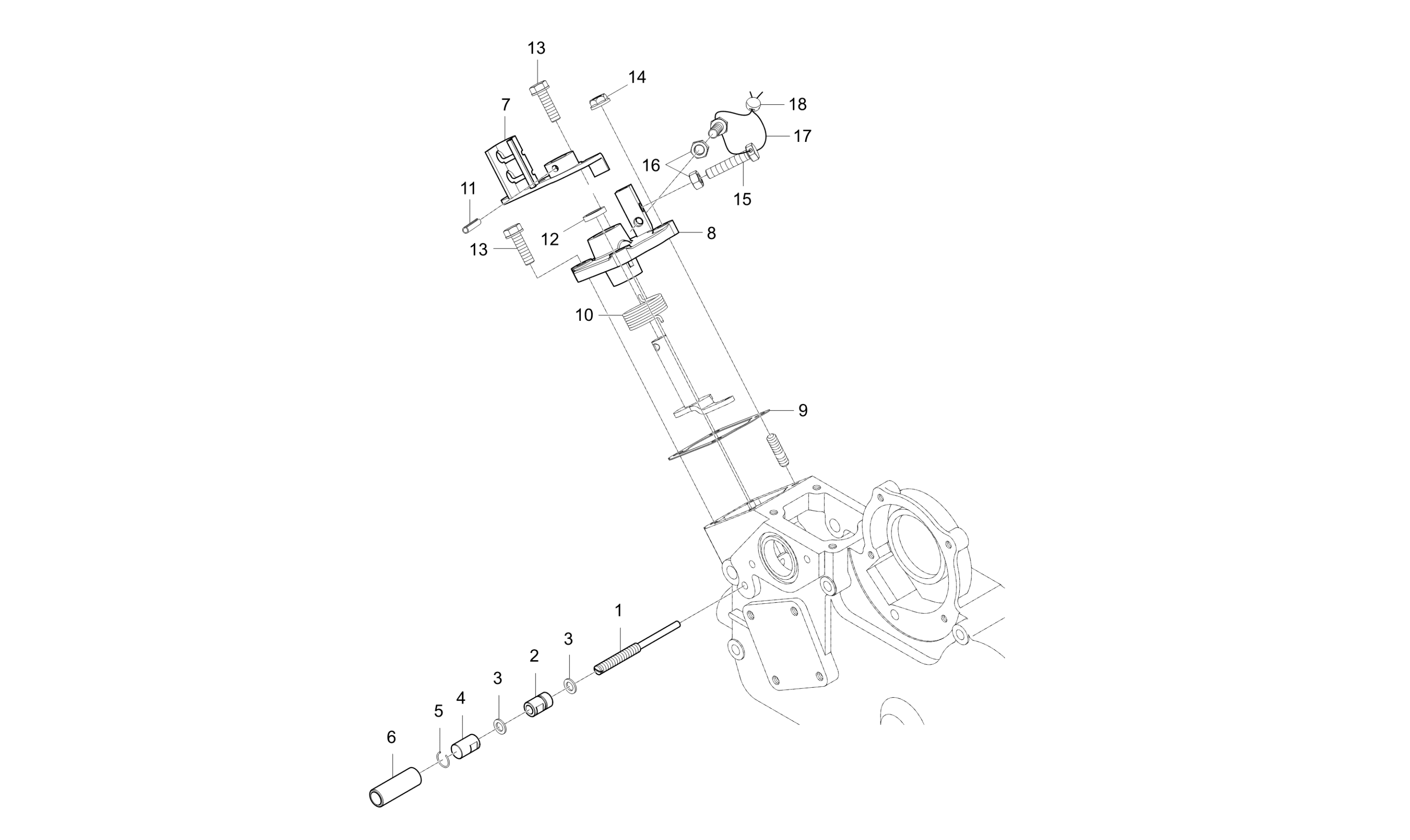

Diagram for SPEED CONTROL LEVER GROUP - EC1-G153006
  • 1

    ADJUSTING BOLT

    • Part No. E5760-54121
    • * multiple options for #1
    • 1 shown on diagram
    $5.99
  • 1

    ADJUSTING BOLT

    • Part No. E5760-54122
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $8.49
  • 1

    BOLT, FUEL ADJUSTING

    • Part No. E5760-54123
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $14.99
  • 2

    NUT

    • Part No. E6305-92021
    • 1 shown on diagram
    $21.99
  • 3

    GASKET

    • Part No. E6305-96652
    • D=9.8,T=1.0
    • 2 shown on diagram
    $2.99
  • 4

    CAP NUT

    • Part No. E6305-54221
    • 1 shown on diagram
    $15.99
  • 5

    SNAP RING

    • Part No. E6305-54281
    • D=0.8
    • 1 shown on diagram
    $2.49
  • 6

    CAP

    • Part No. E6305-54421
    • D=12,T=1.0
    • 1 shown on diagram
    $12.99
  • 7

    LEVER, SPEED CONTROL dnr v

    • Part No. E5760-57151
    • * multiple options for #7
    • 1 shown on diagram
    $31.99
  • 7

    LEVER, SPEED CONTROL v

    • Part No. E5760-57152
    • Compatibility Interchngable
    • * multiple options for #7
    • 1 shown on diagram
    $35.99

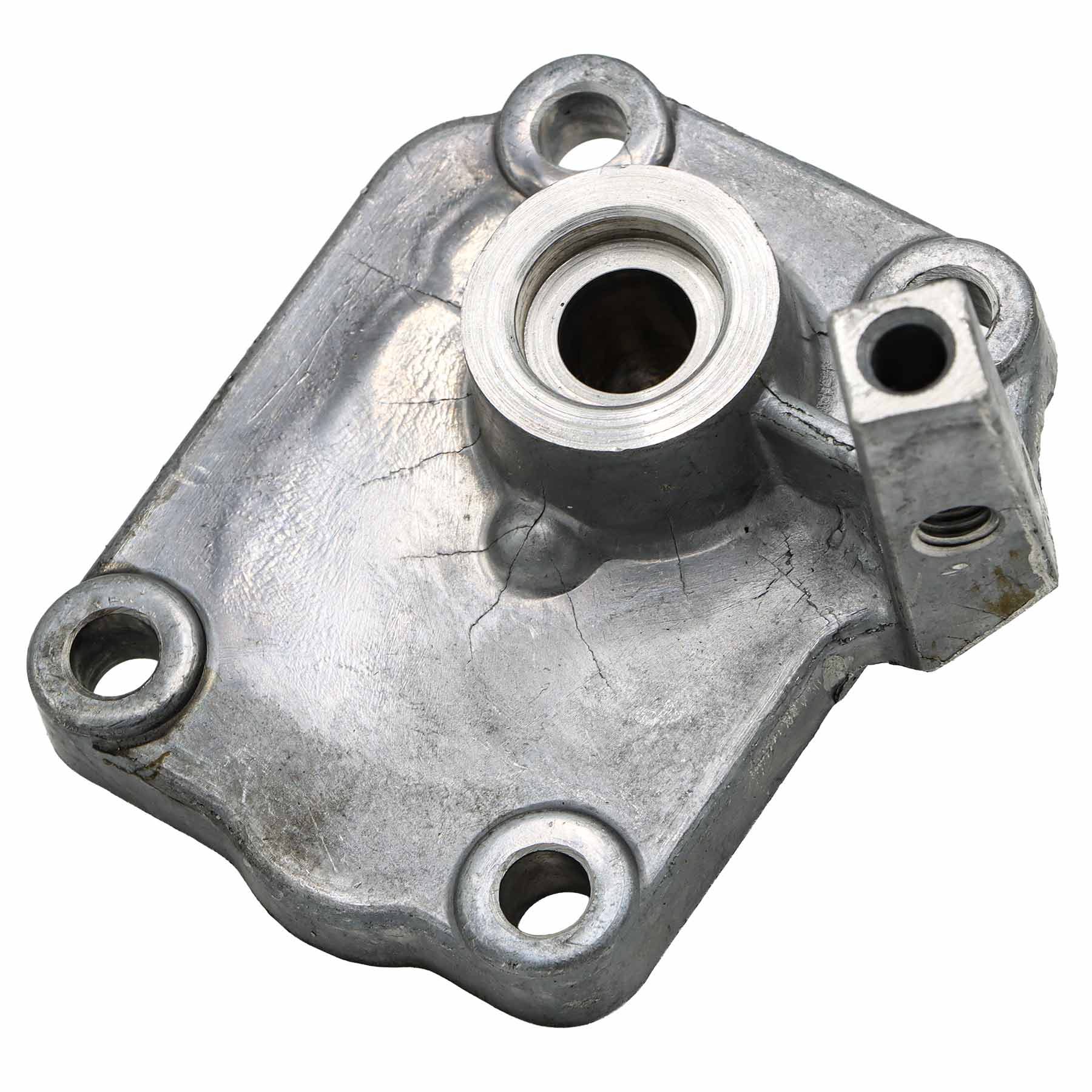

  • 8 PLATE, SPEED CONTROL

    PLATE, SPEED CONTROL

    • Part No. E5850-57112
    • 1 shown on diagram
    $25.99
  • 9 GASKET, SPEED CONTROL PLATE

    GASKET, SPEED CONTROL PLATE

    • Part No. E5850-57212
    • 1 shown on diagram
    $4.49
  • 10

    SPRING v

    • Part No. E5850-57921
    • * multiple options for #10
    • 1 shown on diagram
    $4.49
  • 10

    SPRING v

    • Part No. E5850-57922
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $3.99
  • 11 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00420
    • DIA4.4XL20
    • 1 shown on diagram
    $0.68
  • 12

    SEAL, OIL

    • Part No. 15471-5798-1
    • 1 shown on diagram
    $7.99
  • 13

    BOLT, WASHER

    • Part No. 01023-50620
    • M6XP1.0
    • * multiple options for #13
    • 3 shown on diagram
    $1.39
  • 13

    BOLT, FLANGE

    • Part No. 01754-50620
    • Compatibility Interchngable
    • M6XP1.0
    • * multiple options for #13
    • 3 shown on diagram
    $1.29
  • 14 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • * multiple options for #14
    • 1 shown on diagram
    $0.67
  • 14 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • Compatibility New repl old
    • M6XP1.0
    • * multiple options for #14
    • 1 shown on diagram
    $0.73
  • 15

    STOPPER (15108-5728-4)

    • Part No. 15108-5728-4
    • HEX10,M6*1.0
    • * multiple options for #15
    • 1 shown on diagram
    $5.99
  • 15

    SCREW, STOPPER

    • Part No. E5753-57281
    • Compatibility Call for compat
    • * multiple options for #15
    • 1 shown on diagram
    $4.99
  • 15

    SCREW, STOPPER

    • Part No. E5753-57282
    • Compatibility New repl old
    • * multiple options for #15
    • 1 shown on diagram
    $4.99
  • 16 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 17

    WIRE

    • Part No. 07811-10820
    • 1 shown on diagram
    $2.99
  • 18

    LEAD, SEALING

    • Part No. 07918-00001
    • 1 shown on diagram
    $0.96
