FUEL CAMSHAFT GROUP - EC1-G152003

Kioti TRACTOR | CK Series | CK20HS

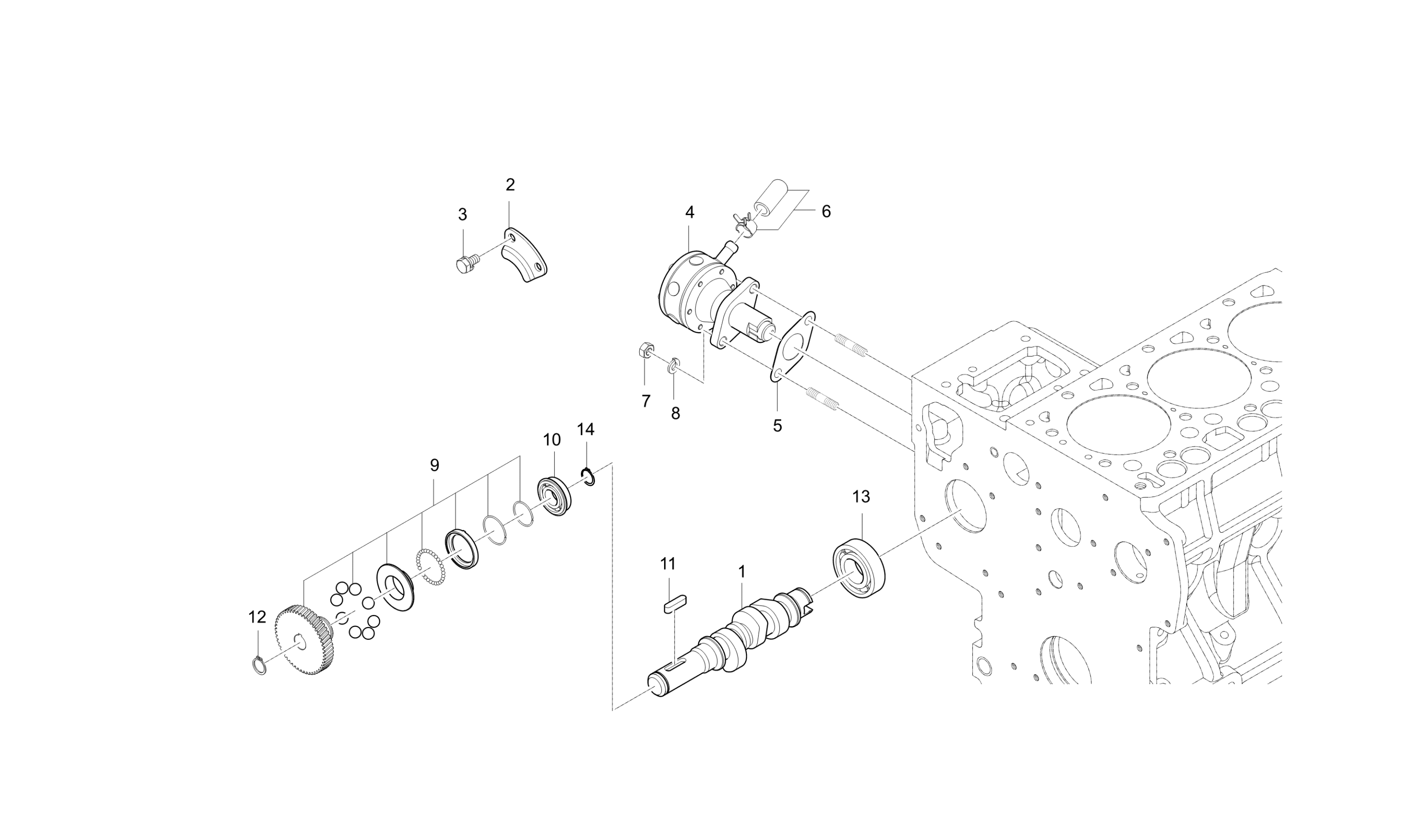

Diagram for FUEL CAMSHAFT GROUP - EC1-G152003
  • 1

    FUEL CAMSHAFT

    • Part No. E5760-16171
    • 1 shown on diagram
    $769.99
  • 2

    Fuel Camshaft Stopper (E5205-16321)

    • Part No. E5205-16321
    • T2.3*46*40
    • 1 shown on diagram
    $5.99
  • 3

    BOLT, WASHER v

    • Part No. 01023-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.09
  • 4

    Fuel Pump Assembly Replaced by E5775-52032 (15381-5203-0)

    • Part No. 15381-5203-0
    • * multiple options for #4
    • 1 shown on diagram
    $61.99
  • 4

    FUEL LIFT PUMP ASSY, Replaced by E5775-52032

    • Part No. E5775-52031
    • Compatibility Call for compat
    • * multiple options for #4
    • 1 shown on diagram
    $57.23
  • 4 Fuel Lift Pump

    Fuel Lift Pump

    • Part No. E5775-52032
    • Compatibility Interchngable
    • * multiple options for #4
    • 1 shown on diagram
    $71.99
  • 5 Gasket, Fuel Pump

    Gasket, Fuel Pump

    • Part No. E6200-52142
    • t0.5
    • 1 shown on diagram
    $3.49
  • 6

    ASSY HOSE, FUEL

    • Part No. EA15-0014A
    • 1 shown on diagram
    $76.99
  • 7 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 2 shown on diagram
    $0.61
  • 9

    ASSY GEAR, INJECTION PUMP v

    • Part No. EC15-0014A
    • 1 shown on diagram
    $364.99
  • 10

    BALL BEARING

    • Part No. 08153-06004
    • #6004
    • 1 shown on diagram
    $17.99
  • 11

    KEY, ROUND

    • Part No. 05712-00520
    • W5XL20
    • 1 shown on diagram
    $5.49
  • 12 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 13

    BALL BEARING

    • Part No. 08103-06004
    • #6004
    • 1 shown on diagram
    $15.99
  • 14

    SNAP RING

    • Part No. 04612-00190
    • DIA19
    • 1 shown on diagram
    $1.19
