SUNSHADE GROUP - T2555-G460

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

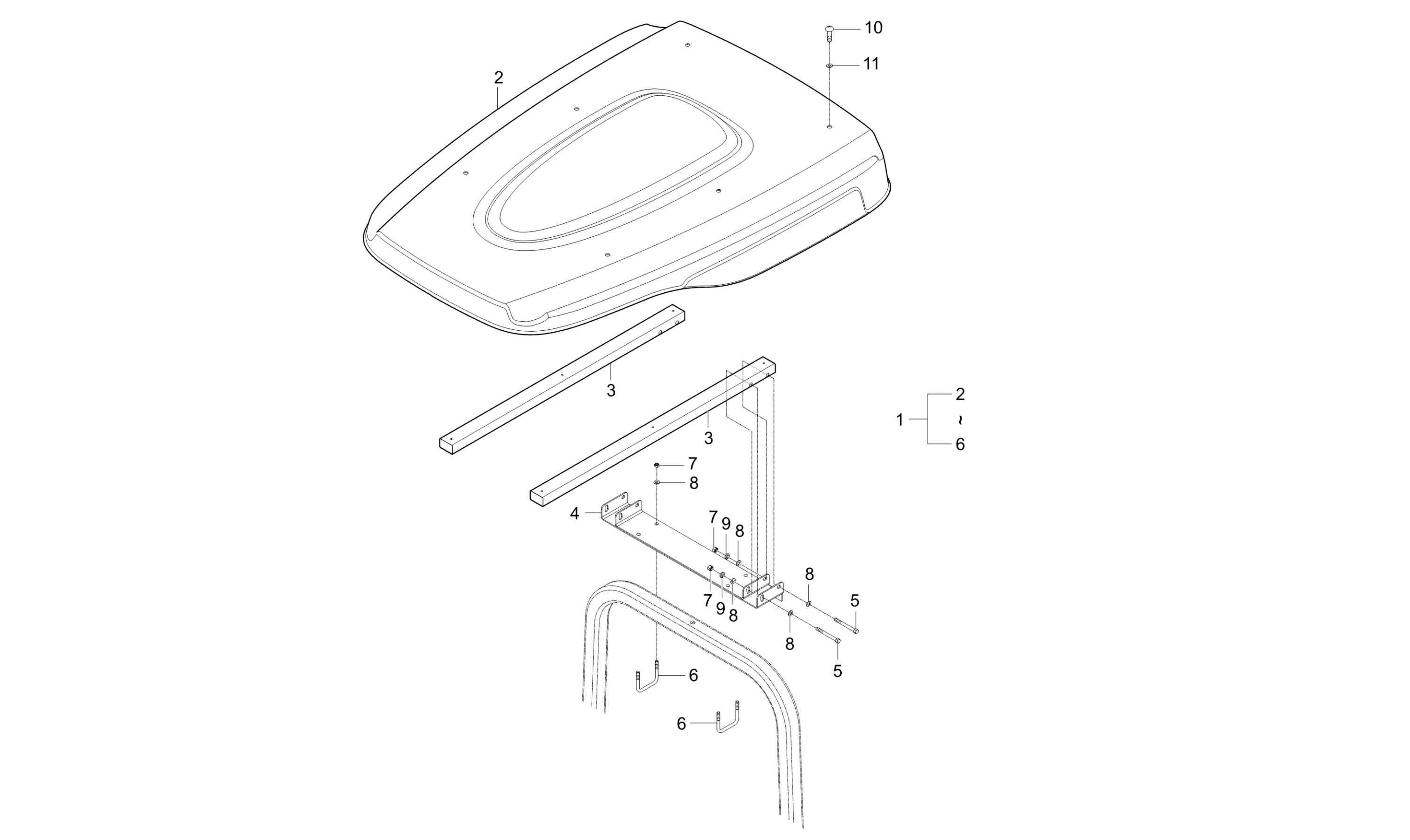

Diagram for SUNSHADE GROUP - T2555-G460
  • 1

    ASS’Y, SUNSHADE

    • Part No. T2555-85101
    • 1 shown on diagram
    $.00
  • 2

    SUNROOF

    • Part No. T2350-85113
    • T4.0
    • 1 shown on diagram
    $879.99
  • 3

    PIPE

    • Part No. T2350-85121
    • 50*30*T1.6
    • 2 shown on diagram
    $55.99
  • 4

    ASSY SUPPORT

    • Part No. T2555-85131
    • 1 shown on diagram
    $214.99
  • 5

    BOLT

    • Part No. T2350-85101004
    • M10x1.5x75
    • 4 shown on diagram
    $.00
  • 6

    U BOLT

    • Part No. T2350-85101005
    • M10x1.5
    • 2 shown on diagram
    $16.99
  • 7

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 8 shown on diagram
    $0.79
  • 8 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 12 shown on diagram
    $.73
  • 9 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 8 shown on diagram
    $0.79
  • 10 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 6 shown on diagram
    $0.79
  • 11 Flat Washer M5

    Flat Washer M5

    • Part No. 04015-50050
    • M5
    • 6 shown on diagram
    $.73
