ACCESSORIES_SERVICE PARTS GROUP(2) - TB2-G6F9002

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

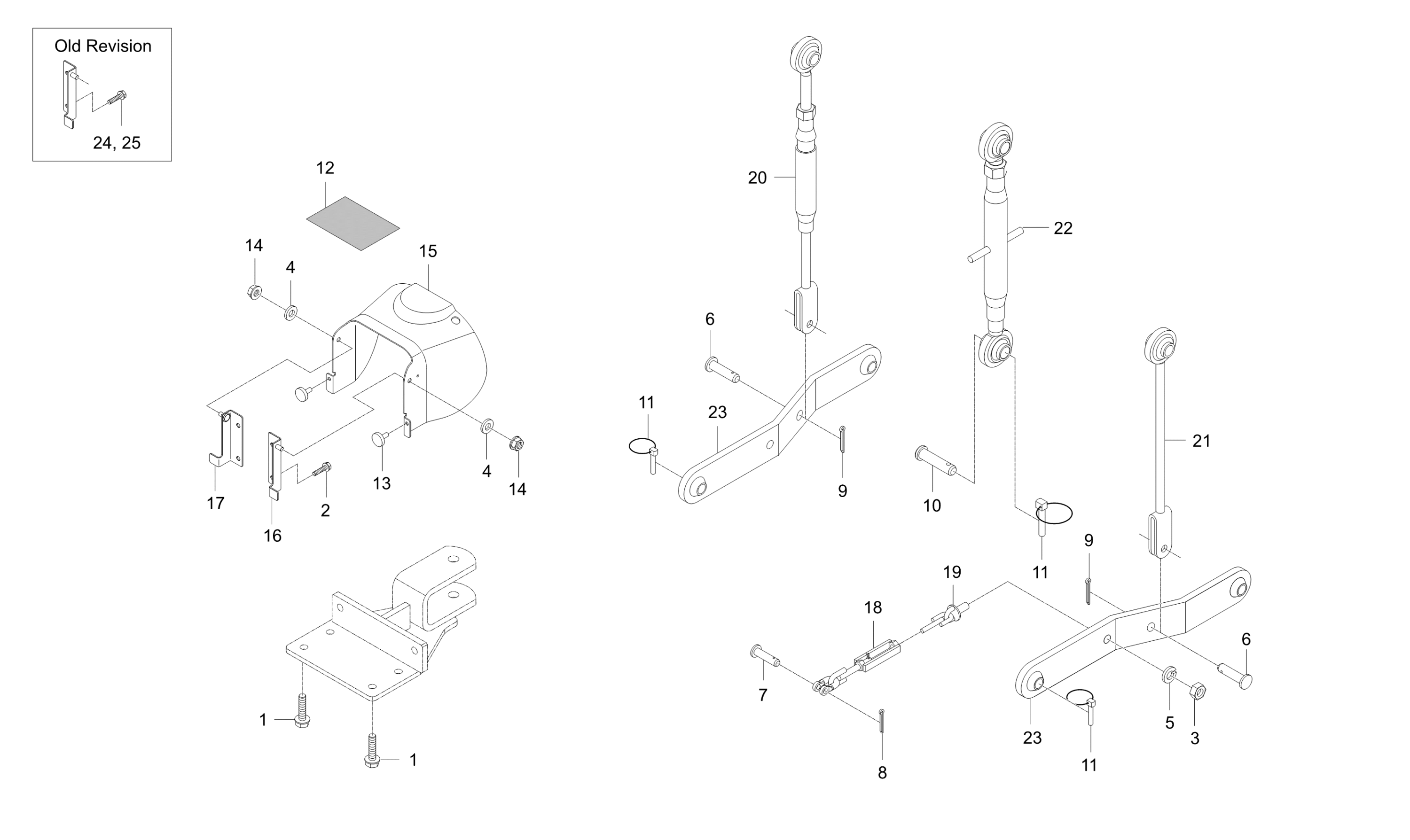

Diagram for ACCESSORIES_SERVICE PARTS GROUP(2) - TB2-G6F9002
  • 1

    WASHER BOLT

    • Part No. 01133-51230
    • M12XP1.25
    • 4 shown on diagram
    $5.49
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 3 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 4 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 2 shown on diagram
    $.67
  • 5 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 2 shown on diagram
    $1.29

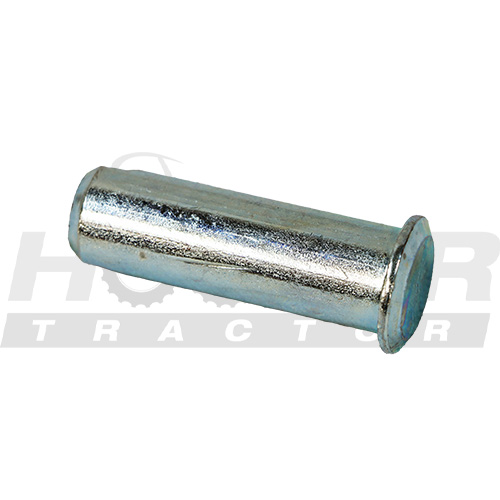

  • 6 PIN,HEAD 16×50

    PIN,HEAD 16×50

    • Part No. 05112-51650
    • 2 shown on diagram
    $7.99
  • 7

    Pin, Joint M10x35mm

    • Part No. 05122-51035
    • 2 shown on diagram
    $2.99
  • 8

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 2 shown on diagram
    $0.68
  • 9

    PIN,SPLIT

    • Part No. 05511-50440
    • 2 shown on diagram
    $0.4
  • 10

    Top Link Pin (31150-7136-5)

    • Part No. 31150-7136-5
    • DIA19
    • 1 shown on diagram
    $15.99
  • 11

    PIN, CLIP dnr v

    • Part No. 34150-3764-4
    • DIA10.0
    • 3 shown on diagram
    $5.99
  • 12

    LABEL, CAUTION

    • Part No. T2555-52262
    • 1 shown on diagram
    $4.99
  • 13

    RUBBER, CUSHION

    • Part No. T2555-55851
    • 2 shown on diagram
    $3.99
  • 14

    NUT

    • Part No. T2555-58731
    • 2 shown on diagram
    $1.89

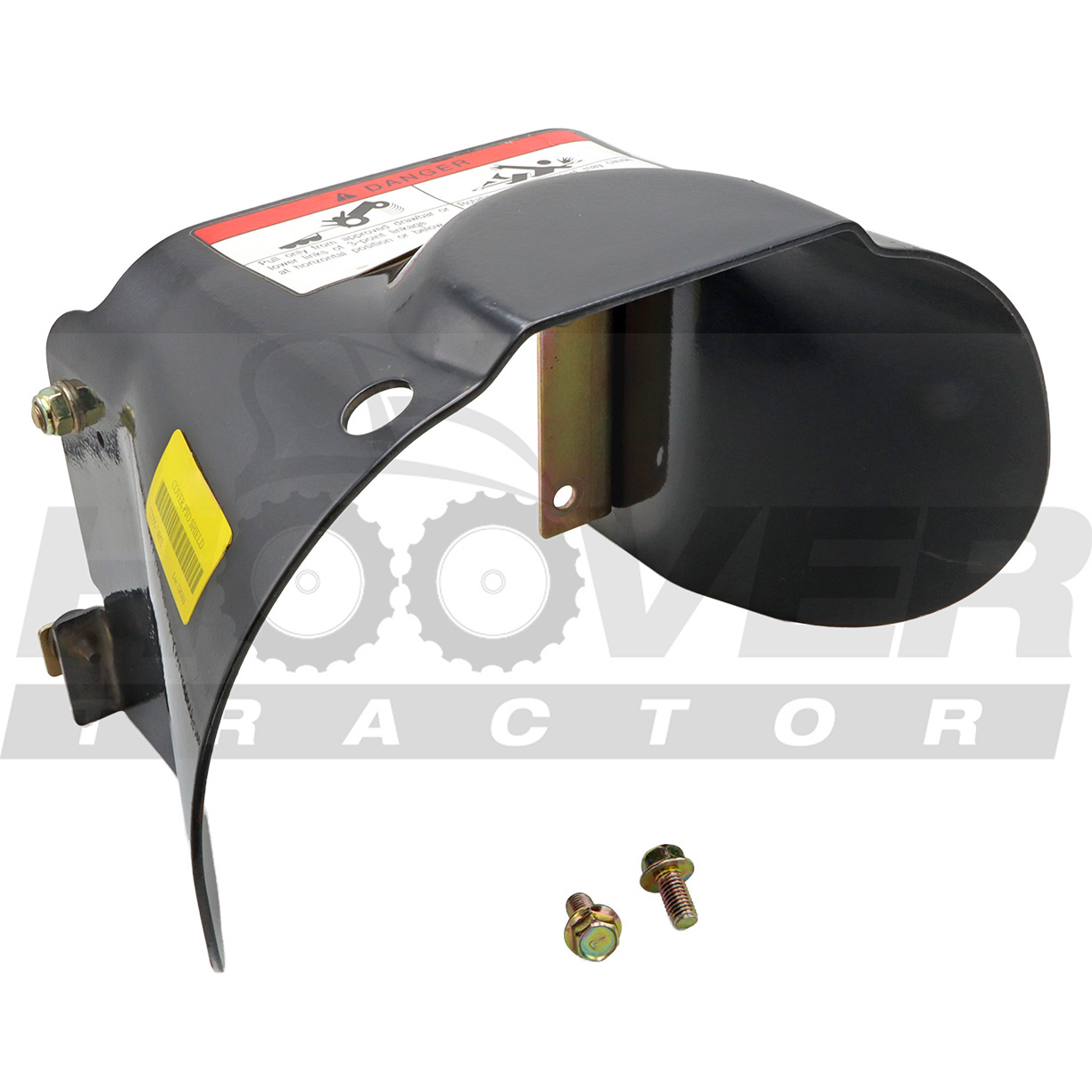

  • 15 COVER PTO SHIELD

    COVER PTO SHIELD

    • Part No. T2555-74052
    • 1 shown on diagram
    $77.99
  • 16

    BRACKET, PTO COVER dnr v

    • Part No. T2555-74061
    • 1 shown on diagram
    $11.99
  • 17

    BRACKET, PTO COVER dnr v

    • Part No. T2555-74071
    • 1 shown on diagram
    $11.99

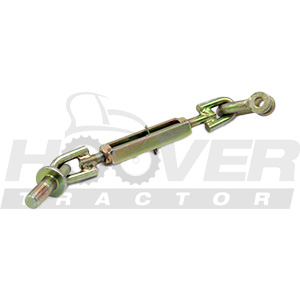

  • 18 CHECK-LINK ASSY

    CHECK-LINK ASSY

    • Part No. T2555-91001
    • 2 shown on diagram
    $79.99

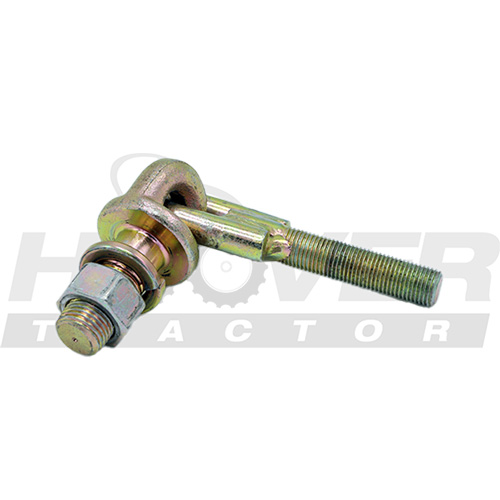

  • 19 CHECK LINK, 2

    CHECK LINK, 2

    • Part No. T2555-91041
    • 2 shown on diagram
    $55.99
  • 20 LIFT ROD ASSY, RH

    LIFT ROD ASSY, RH

    • Part No. T2555-91201
    • 1 shown on diagram
    $154.99

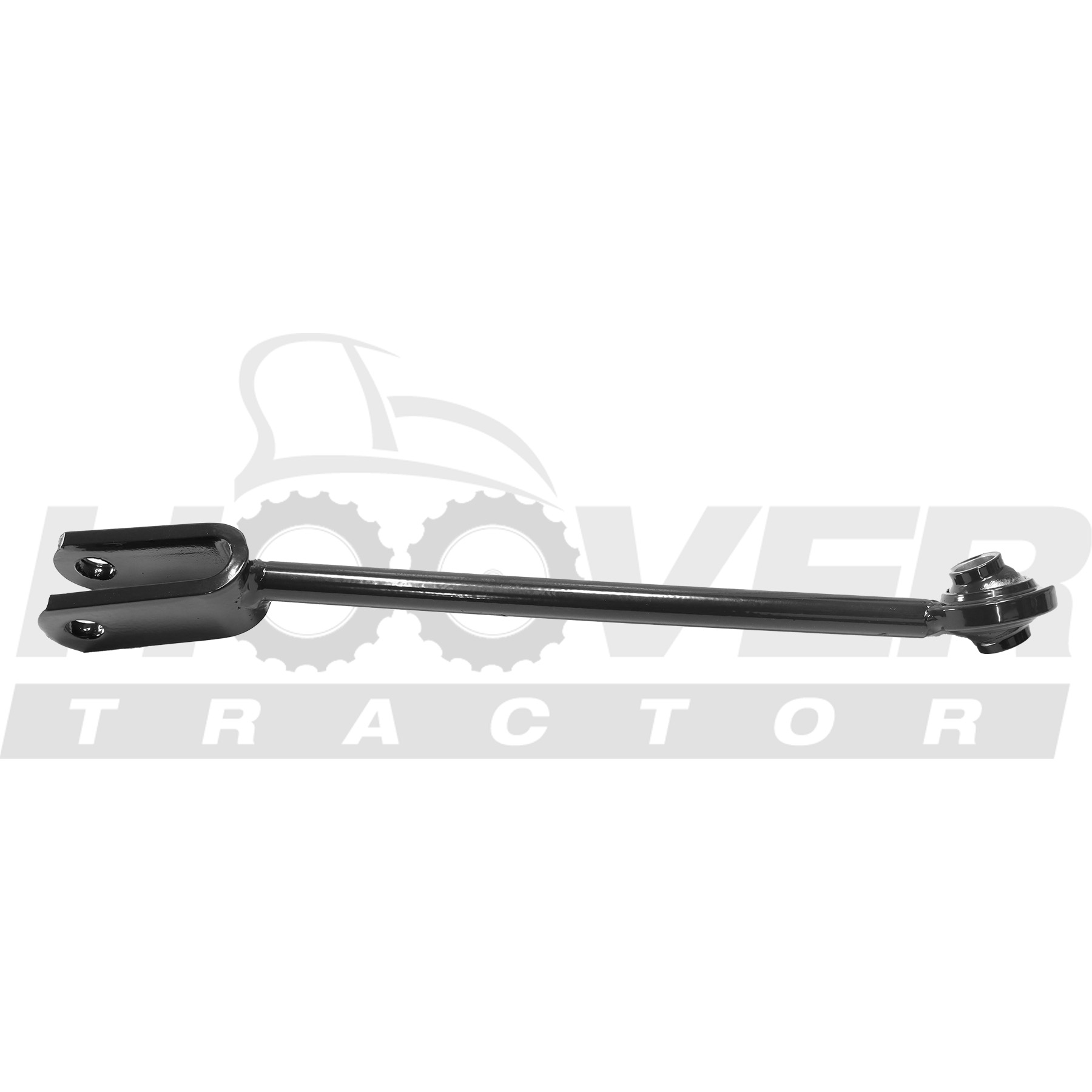

  • 21 LIFT ROD, LH

    LIFT ROD, LH

    • Part No. T2555-91311
    • 1 shown on diagram
    $129.99
  • 22

    TOP LINK ASSY

    • Part No. T2555-91702
    • 1 shown on diagram
    $289.99
  • 23

    COMP. LINK, LOWER

    • Part No. T2555-93011
    • 2 shown on diagram
    $244.99
  • 24 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 25 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 26

    ASSY LINK, CHECK

    • Part No. TB26-0404A
    • 2 shown on diagram
    $84.99
  • 27

    ASSY ROD, LIFT obs v

    • Part No. TB26-0352A
    • 1 shown on diagram
    $174.99
