REAR WORKING LAMP GROUP(OPTION) - TB2-G593101

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

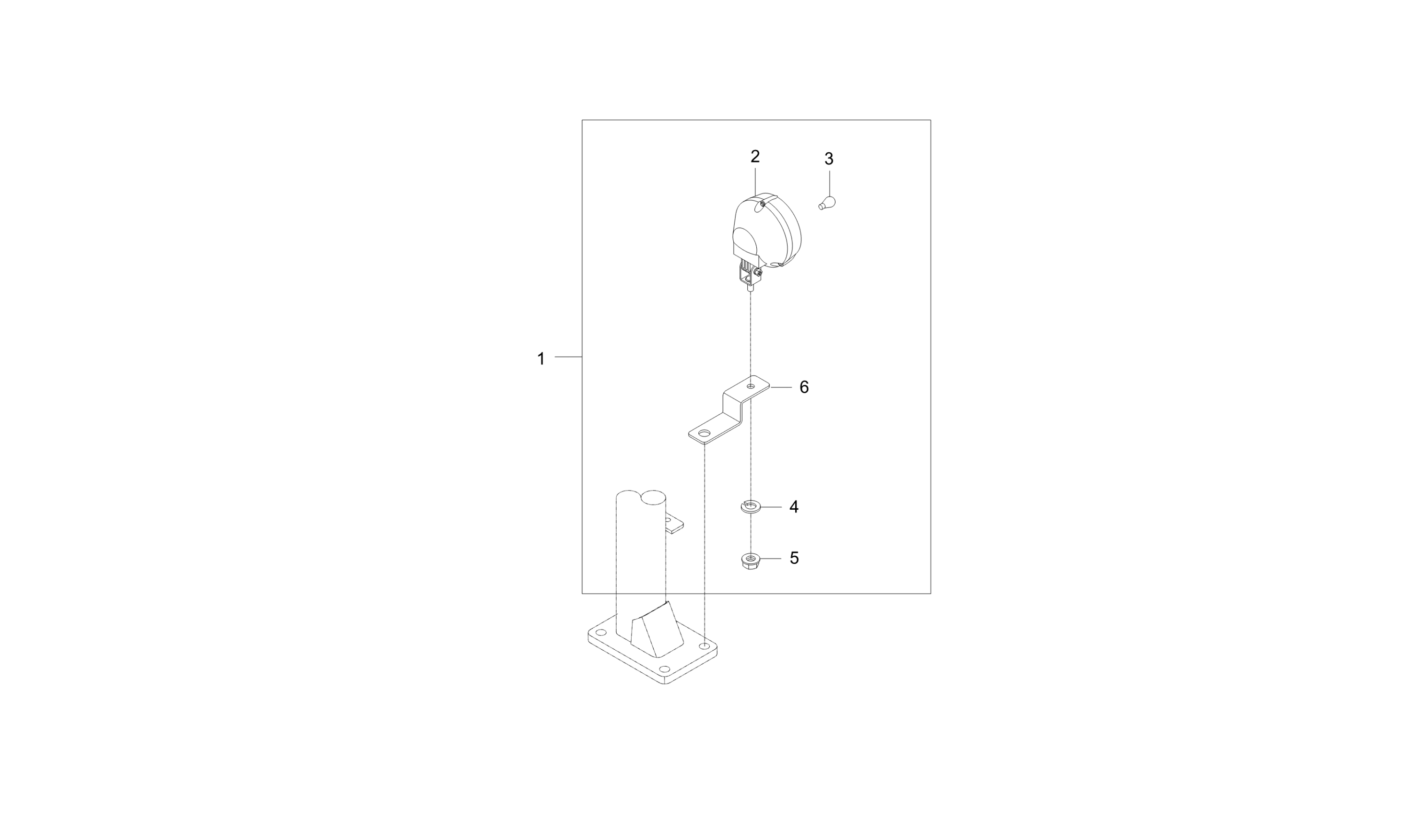

Diagram for REAR WORKING LAMP GROUP(OPTION) - TB2-G593101
  • 1

    KIT, WORKING LAMP

    • Part No. T2555-A06062101
    • 1 shown on diagram
    $.00
  • 2

    WORKING LIGHT ASSY

    • Part No. T2350-46612
    • 1 shown on diagram
    $74.99
  • 3

    BULB (12V 21W) v 1156

    • Part No. T4620-69272
    • 12V21W(S25S)
    • 1 shown on diagram
    $9.49
  • 4 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 5 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 1 shown on diagram
    $0.67
  • 6

    BRACKET

    • Part No. T2555-64491
    • T3.0
    • 1 shown on diagram
    $7.49
