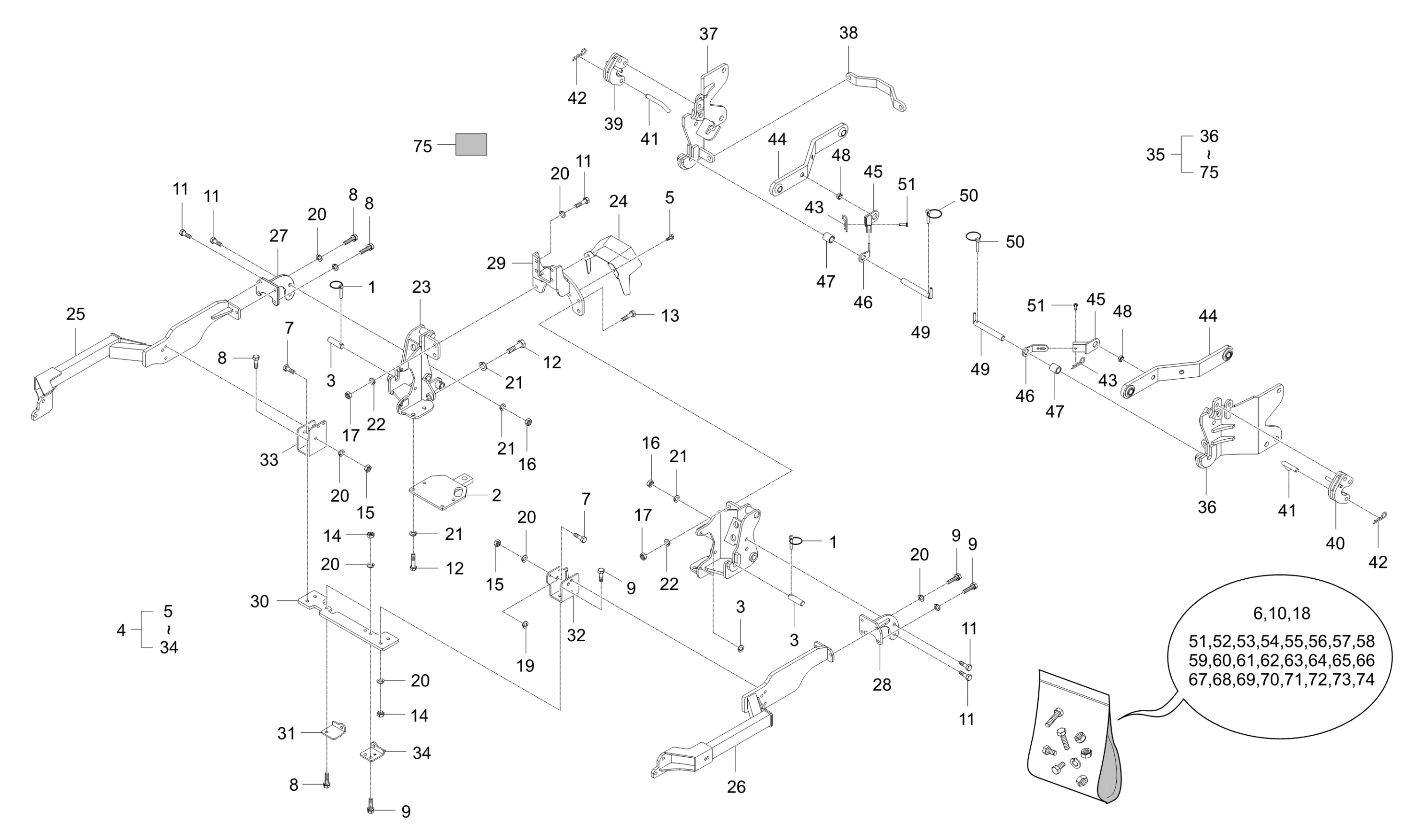

FRAME GROUP(BACKHOE SUB) - TB2-G622001

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

1
PIN, CLIP dnr v
- Part No. 34150-3764-4
- DIA10.0
- 2 shown on diagram
$5.99

PIN, CLIP dnr v quantity
2
HTICH
- Part No. T2555-67181
- 1 shown on diagram
$134.99

HTICH quantity
3
PIN, LOWER LINK
- Part No. T2555-93031
- 2 shown on diagram
$17.99

PIN, LOWER LINK quantity
4
4POINT FRAME TRACTOR ASSY
- Part No. TB26-A0003B
- * multiple options for #4
- 1 shown on diagram
$.00

4POINT FRAME TRACTOR ASSY quantity
4
4POINT FRAME TRACTOR ASSY
- Part No. TB26-A0003C
- Compatibility New repl old
- * multiple options for #4
- 1 shown on diagram
$.00

4POINT FRAME TRACTOR ASSY quantity
5
BOLT, FLANGE
- Part No. 01754-50816
- M8XP1.25
- 2 shown on diagram
$1.79

BOLT, FLANGE quantity
6
BOLT
- Part No. 01156-50825
- 4 shown on diagram
$1.79

BOLT quantity
7
BOLT
- Part No. 01176-51025
- M10*P1.25*25
- 2 shown on diagram
$2.49

BOLT quantity
8
BOLT
- Part No. 01176-51035
- 7 shown on diagram
$2.99

BOLT quantity
9
BOLT
- Part No. 01176-51035
- 8 shown on diagram
$2.99

BOLT quantity
10
BOLT
- Part No. 01176-51050
- M10*1.25
- 4 shown on diagram
$1.99

BOLT quantity
11
BOLT v
- Part No. 01176-51235
- 4 shown on diagram
$3.49

BOLT v quantity
12
BOLT v
- Part No. 01176-51245
- 6 shown on diagram
$4.99

BOLT v quantity
13
BOLT
- Part No. 01176-51445
- 4 shown on diagram
$7.49

BOLT quantity
14
Nut M10 P1.25
- Part No. 02176-50100
- M10XP1.25
- 7 shown on diagram
$.98

Nut M10 P1.25 quantity
15
Nut M10 P1.25
- Part No. 02176-50100
- M10XP1.25
- 2 shown on diagram
$.98

Nut M10 P1.25 quantity
16
NUT M12 P1.25
- Part No. 02176-50120
- M12XP1.25
- 4 shown on diagram
$1.49

NUT M12 P1.25 quantity
17
NUT
- Part No. 02176-50140
- M14XP1.5
- 4 shown on diagram
$1.79

NUT quantity
18
Flat Washer M8
- Part No. 04014-50080
- 2 shown on diagram
$.67

Flat Washer M8 quantity
19
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 4 shown on diagram
$.61

Spring Lock Washer M8 quantity
20
WASHER, SPRING
- Part No. 04512-50100
- M10
- 21 shown on diagram
$0.79

WASHER, SPRING quantity
21
M12 Spring Washer (04512-50120)
- Part No. 04512-50120
- M12
- 10 shown on diagram
$0.95

M12 Spring Washer (04512-50120) quantity
22
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 4 shown on diagram
$0.9

M14 Spring Lock Washer 04512-50140 quantity
23
BRACKET-LH TRACTOR
- Part No. TB26-0063A
- 1 shown on diagram
$.00

BRACKET-LH TRACTOR quantity
24
COVER, PTO
- Part No. TB26-0081A
- 1 shown on diagram
$42.99

COVER, PTO quantity
25
FRAME, SIDE-RR LH
- Part No. TB26-0082A
- 1 shown on diagram
$449.99

FRAME, SIDE-RR LH quantity
26
FRAME, SIDE-RR RH
- Part No. TB26-0093A
- 1 shown on diagram
$449.99

FRAME, SIDE-RR RH quantity
27
BRACKET, AXLE-RR LH
- Part No. TB26-0097A
- 1 shown on diagram
$.00

BRACKET, AXLE-RR LH quantity
28
BRACKET, AXLE-RR RH
- Part No. TB26-0101A
- 1 shown on diagram
$.00

BRACKET, AXLE-RR RH quantity
29
BRACKET-CTR TRACTOR
- Part No. TB26-0102A
- 1 shown on diagram
$.00

BRACKET-CTR TRACTOR quantity
30
FRAME, SUPPORT CROSS-CTR
- Part No. TB26-0106A
- 1 shown on diagram
$124.99

FRAME, SUPPORT CROSS-CTR quantity
31
BRACKET, LINK-CTR CROSS
- Part No. TB26-0107A
- 1 shown on diagram
$.00

BRACKET, LINK-CTR CROSS quantity
32
BRACKET-RH SIDE
- Part No. TB26-0108A
- 1 shown on diagram
$82.99

BRACKET-RH SIDE quantity
33
BRACKET-LH SIDE
- Part No. TB26-0111A
- 1 shown on diagram
$82.99

BRACKET-LH SIDE quantity
34
BRACKET, LINK-RH CENTER CROSS
- Part No. TB26-0113A
- 1 shown on diagram
$.00

BRACKET, LINK-RH CENTER CROSS quantity
35
4POINT FRAME BACKHOE ASSY
- Part No. TB26-A0004A
- 1 shown on diagram
$.00

4POINT FRAME BACKHOE ASSY quantity
36
BRACKET-LH BACKHOE
- Part No. TB26-0116A
- 1 shown on diagram
$.00

BRACKET-LH BACKHOE quantity
37
BRACKET-RH BACKHOE
- Part No. TB26-0124A
- 1 shown on diagram
$.00

BRACKET-RH BACKHOE quantity
38
BRACKET-CTR BACKHOE
- Part No. TB26-0126A
- 1 shown on diagram
$.00

BRACKET-CTR BACKHOE quantity
39
BRACKET, LOCK-LH
- Part No. TB26-0127A
- 1 shown on diagram
$.00

BRACKET, LOCK-LH quantity
40
BRACKET, LOCK-RH
- Part No. TB26-0131A
- 1 shown on diagram
$.00

BRACKET, LOCK-RH quantity
41
PIN-LOCK
- Part No. TB26-0132A
- DIA 16
- 2 shown on diagram
$.00

PIN-LOCK quantity
42
PIN, SNAP dnr v
- Part No. TB26-0133A
- DIA 3
- 2 shown on diagram
$0.24

PIN, SNAP dnr v quantity
43
PIN, SNAP dnr v
- Part No. TB26-0133A
- DIA 3
- 2 shown on diagram
$0.24

PIN, SNAP dnr v quantity
44
LINK, LOWER dnr v
- Part No. TB26-0134A
- 2 shown on diagram
$369.99

LINK, LOWER dnr v quantity
45
BRACKET, LINK
- Part No. TB26-0135A
- PLANTE
- 2 shown on diagram
$49.99

BRACKET, LINK quantity
46
LINK-SPACING
- Part No. TB26-0138A
- PLANTE
- 2 shown on diagram
$26.99

LINK-SPACING quantity
47
BUSHING
- Part No. TB26-0139A
- OD32 x ID22.4 x 37L
- 2 shown on diagram
$22.99

BUSHING quantity
48
BUSHING
- Part No. TB26-0140A
- OD25 x ID16.5 x 9L
- 2 shown on diagram
$9.99

BUSHING quantity
49
PIN, LOWER LINK
- Part No. TB26-0141A
- DIA22 x 164L
- 2 shown on diagram
$43.99

PIN, LOWER LINK quantity
50
PIN, SNAP
- Part No. TB26-0144A
- ø10 PLANTE
- 2 shown on diagram
$5.99

PIN, SNAP quantity
51
PIN, CONNECTING-LINK
- Part No. TB26-0145A
- ø8 PLANTE
- 2 shown on diagram
$15.99

PIN, CONNECTING-LINK quantity
52
BOLT
- Part No. TB26-0146A
- M16-2.0P 50L
- 2 shown on diagram
$4.99

BOLT quantity
53
BOLT
- Part No. TB26-0146A
- M16-2.0P 50L
- 2 shown on diagram
$4.99

BOLT quantity
54
WASHER, SPRING
- Part No. TB26-0147A
- M16 PLANTE
- 2 shown on diagram
$0.53

WASHER, SPRING quantity
55
WASHER, SPRING
- Part No. TB26-0147A
- M16 PLANTE
- 2 shown on diagram
$0.53

WASHER, SPRING quantity
56
Washer, Plain, Replaced by 10321-M1600
- Part No. TB26-0148A
- M16 PLANTE
- 2 shown on diagram
$0.82

Washer, Plain, Replaced by 10321-M1600 quantity
57
NUT, LOCK
- Part No. TB26-0149A
- M16-2.0P
- 2 shown on diagram
$1.39

NUT, LOCK quantity
58
NUT, LOCK
- Part No. TB26-0149A
- M16-2.0P
- 2 shown on diagram
$1.39

NUT, LOCK quantity
59
BOLT
- Part No. TB26-0150A
- M22-2.5P 60L
- 4 shown on diagram
$.00

BOLT quantity
60
WASHER, SPRING
- Part No. TB26-0151A
- M22 PLANTE
- 4 shown on diagram
$.00

WASHER, SPRING quantity
61
NUT
- Part No. TB26-0152A
- M22-2.5P
- 4 shown on diagram
$.00

NUT quantity
62
BOLT
- Part No. TB26-0153A
- M20-2.5P 60L
- 2 shown on diagram
$.00

BOLT quantity
63
WASHER, SPRING
- Part No. TB26-0154A
- M20 PLANTE
- 2 shown on diagram
$.00

WASHER, SPRING quantity
64
NUT
- Part No. TB26-0155A
- M20-2.5P
- 2 shown on diagram
$.00

NUT quantity
65
NUT
- Part No. TB26-0156A
- M16-2.0P
- 2 shown on diagram
$.00

NUT quantity
66
BOLT
- Part No. TB26-0157A
- M16-2.0P 60L
- 2 shown on diagram
$.00

BOLT quantity
67
BOLT
- Part No. TB26-0158A
- M10-1.5P 35L
- 4 shown on diagram
$.00

BOLT quantity
68
BOLT
- Part No. TB26-0159A
- M10-1.5P 40L
- 6 shown on diagram
$.00

BOLT quantity
69
WASHER, SPRING
- Part No. TB26-0160A
- ø10 PLANTE
- 10 shown on diagram
$.00

WASHER, SPRING quantity
70
NUT
- Part No. TB26-0161A
- M10-1.5P
- 10 shown on diagram
$.00

NUT quantity
71
BOLT dnr v
- Part No. TB26-0162A
- M12-1.25P 40L
- 4 shown on diagram
$3.99

BOLT dnr v quantity
72
WASHER, SPRING
- Part No. TB26-0163A
- ø12 PLANTE
- 4 shown on diagram
$0.24

WASHER, SPRING quantity
73
NUT
- Part No. TB26-0164A
- M12-1.25P
- 4 shown on diagram
$.00

NUT quantity
74
CABLE-TIE
- Part No. TB26-0165A
- 270L
- 2 shown on diagram
$.00

CABLE-TIE quantity
75
LABEL, DANGER
- Part No. TB26-0166A
- 2 shown on diagram
$.00

LABEL, DANGER quantity
76
WASHER, PLAIN
- Part No. TB36-1190A
- t4.7
- 1 shown on diagram
$.00

WASHER, PLAIN quantity
77
WASHER, PLAIN
- Part No. TB36-1190A
- t4.7
- 1 shown on diagram
$.00

WASHER, PLAIN quantity
78
WASHER, PLAIN
- Part No. TB36-1190A
- t4.7
- 1 shown on diagram
$.00

WASHER, PLAIN quantity
79
WASHER, PLAIN
- Part No. TB36-1190A
- t4.7
- 1 shown on diagram
$.00

WASHER, PLAIN quantity
80
WASHER, PLAIN
- Part No. TB36-1190A
- t4.7
- 1 shown on diagram
$.00

WASHER, PLAIN quantity
81
SUB ASSY BRACKET, BACKHOE
- Part No. TB26-0405A
- 1 shown on diagram
$.00

SUB ASSY BRACKET, BACKHOE quantity
82
SUB ASSY LINK
- Part No. TB26-0406A
- 1 shown on diagram
$.00

SUB ASSY LINK quantity
