TUBE.HYD - T2555-G680

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

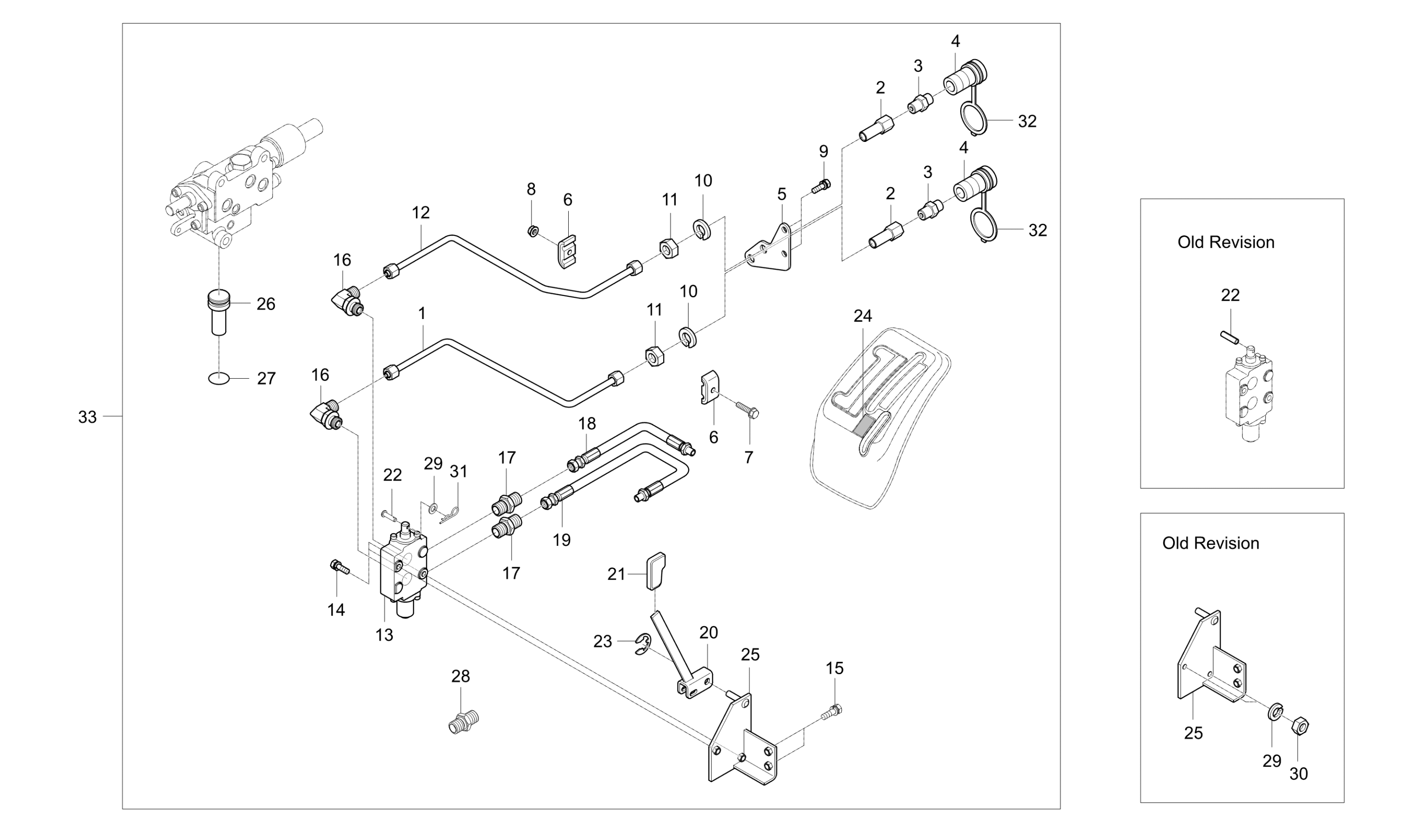

Diagram for TUBE.HYD - T2555-G680
  • 1

    Hydraulic Tube B

    • Part No. T2555-39131
    • 1 shown on diagram
    $61.99
  • 2

    CONNECTION

    • Part No. T2555-36051
    • 2 shown on diagram
    $26.99

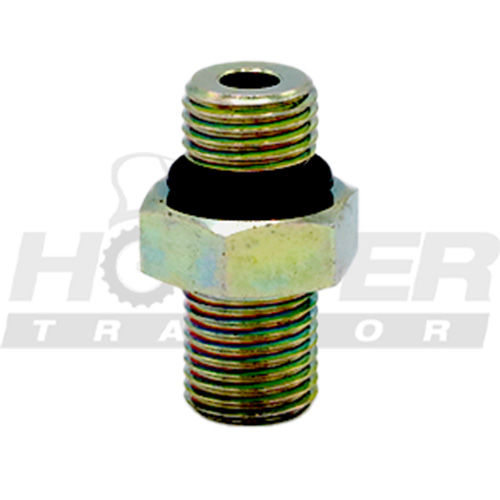

  • 3 CONNECTION

    CONNECTION

    • Part No. T2555-39351
    • 2 shown on diagram
    $18.99
  • 4

    COUPLER, QUICK-PT3/8

    • Part No. TB34-0085A
    • 2 shown on diagram
    $48.99
  • 5

    PLATE

    • Part No. T2555-39421
    • 2 shown on diagram
    $14.99
  • 6

    HOLDER, TUBE

    • Part No. T2555-36101
    • 2 shown on diagram
    $12.99
  • 7

    FLANGE BOLT

    • Part No. 01754-50630
    • M6XP1.0
    • 1 shown on diagram
    $0.92
  • 8 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 9 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 10

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.9
  • 11 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 12

    TUBE A, HYD

    • Part No. T2555-39121
    • 1 shown on diagram
    $77.99
  • 13

    Double Acting Valve

    • Part No. T2555-39101
    • 1 shown on diagram
    $679.99
  • 14

    Bolt, M8 P1.25 x 55mm

    • Part No. 01153-50855
    • HEX12.M8P1.25
    • 2 shown on diagram
    $2.49
  • 15 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 16

    ELBOW

    • Part No. T2555-39441
    • 2 shown on diagram
    $22.99
  • 17

    CONNECTOR

    • Part No. T4620-66161
    • PF1/4
    • 2 shown on diagram
    $13.99
  • 18

    HOSE ASSY, OIL DRAIN

    • Part No. T2555-39302
    • 1 shown on diagram
    $74.99

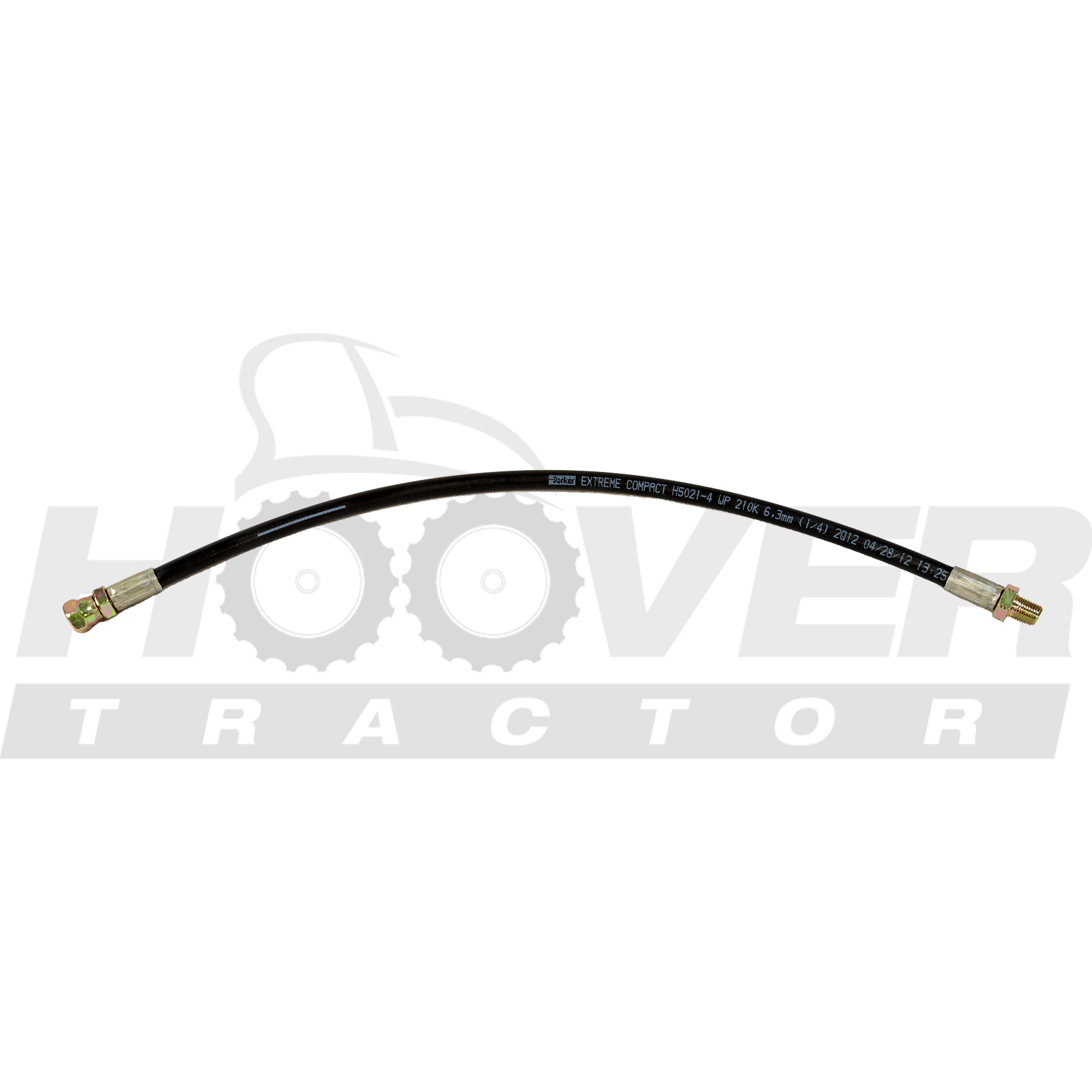

  • 19 HOSE ASSY P

    HOSE ASSY P

    • Part No. T2555-39311
    • 1 shown on diagram
    $78.99
  • 20

    LEVER, DOUBLE ACTING

    • Part No. T2555-61601
    • 1 shown on diagram
    $29.99

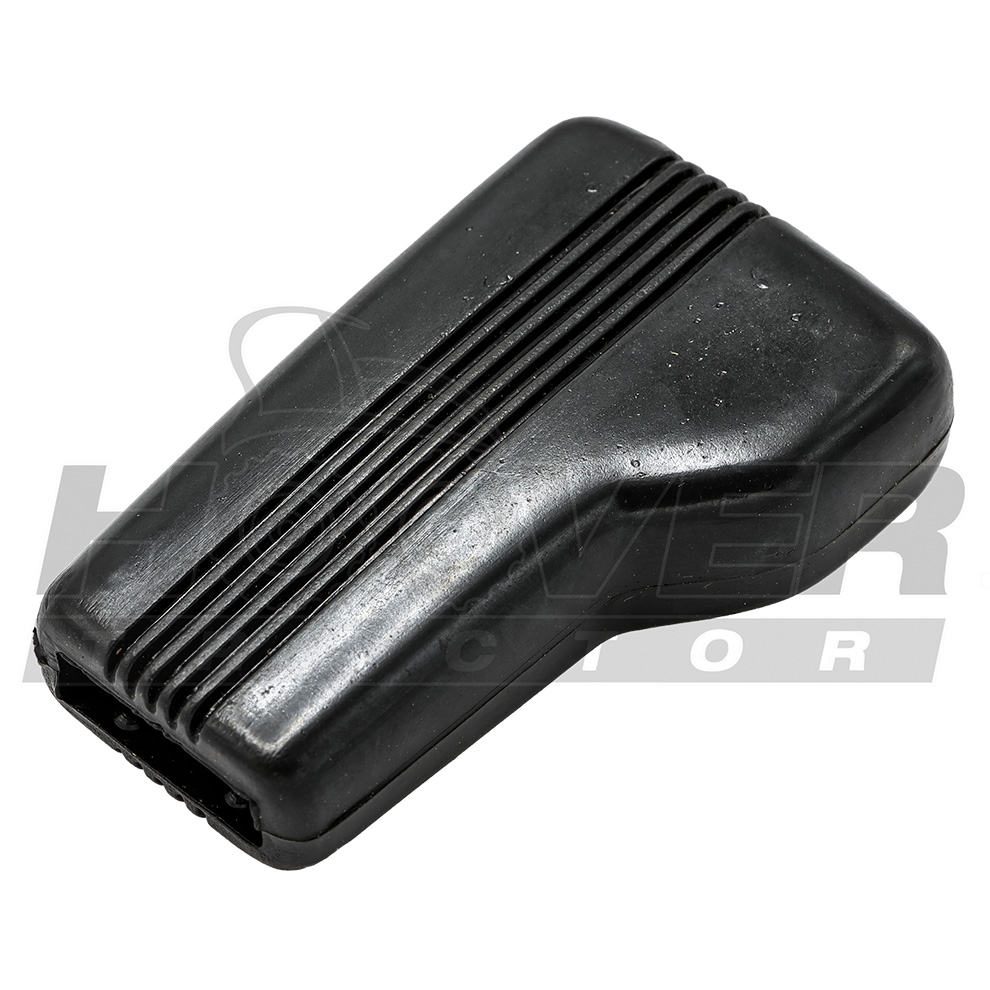

  • 21 GRIP v

    GRIP v

    • Part No. T4260-24462
    • 1 shown on diagram
    $6.49

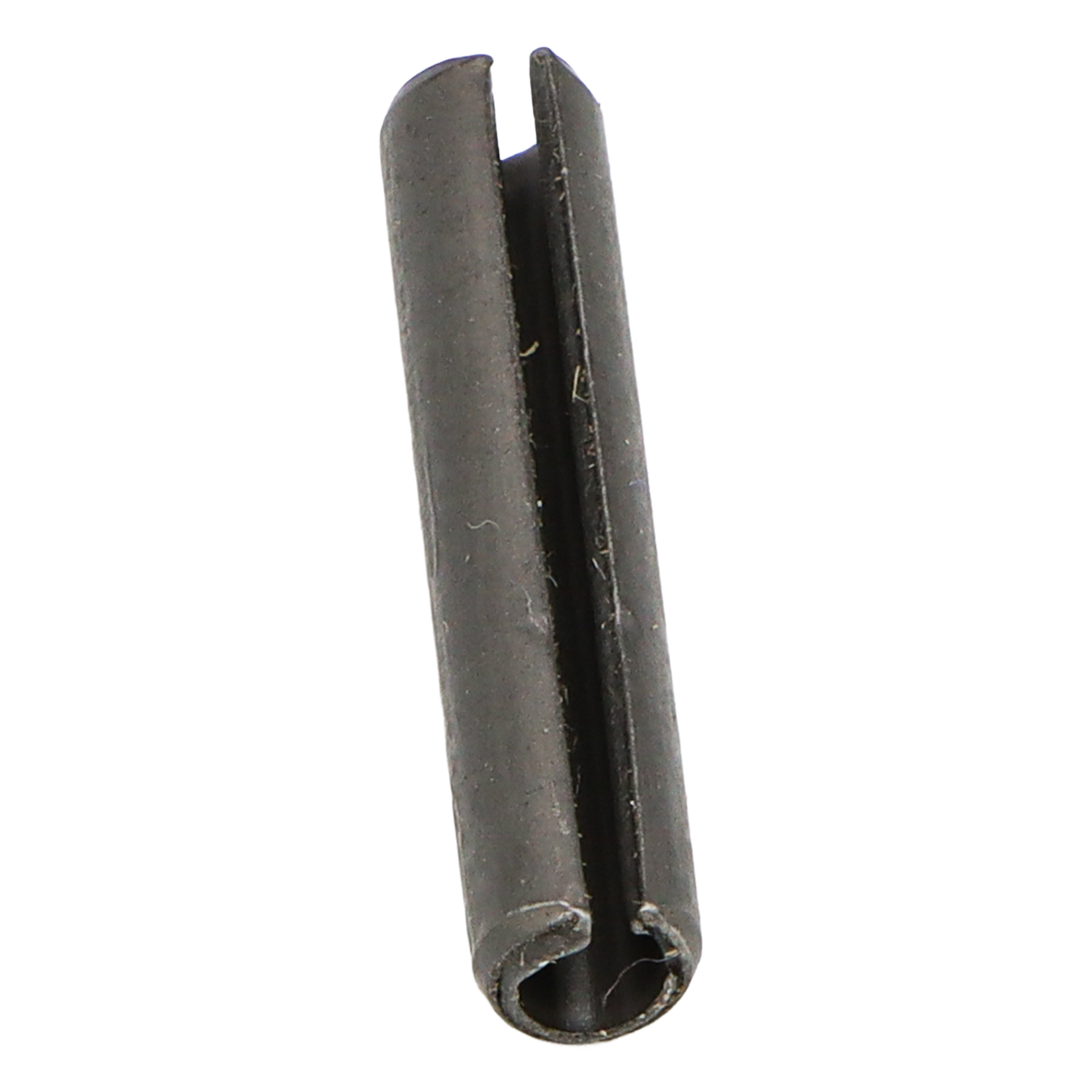

  • 22 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00525
    • DIA5.4XL25
    • 1 shown on diagram
    $0.9
  • 23

    SNAP RING

    • Part No. 04613-50080
    • DIA08
    • 1 shown on diagram
    $0.73
  • 24

    LABEL

    • Part No. T2555-52742
    • 1 shown on diagram
    $1.29
  • 25

    BRACKET

    • Part No. T2555-39013
    • 1 shown on diagram
    $52.99

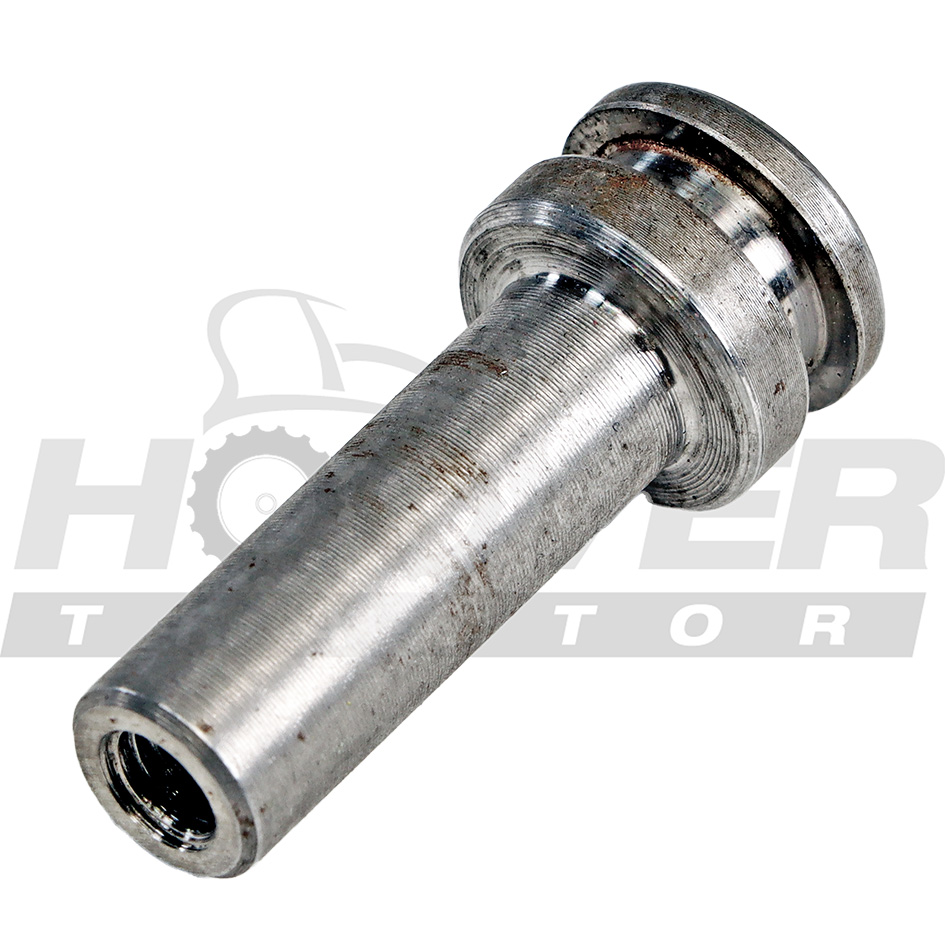

  • 26 VALVE

    VALVE

    • Part No. T2555-39331
    • 1 shown on diagram
    $19.99
  • 27 O RING

    O RING

    • Part No. 04811-00100
    • DIA9.8
    • 1 shown on diagram
    $0.68
  • 28

    CONNECTOR

    • Part No. T2555-39461
    • 1 shown on diagram
    $21.99
  • 29 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $.61
  • 30

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 1 shown on diagram
    $.67
  • 31

    OB PIN,SNAP

    • Part No. 05525-50500
    • DIA5
    • 1 shown on diagram
    $1.09
  • 32

    CAP, COUPLER SOCKET-3/8 v

    • Part No. TB14-0018A
    • 2 shown on diagram
    $2.49
  • 33

    Rear Hyd Valve Kit (Option Kit)

    • Part No. T2555-A06053105
    • 1 shown on diagram
    $.00
