REAR WORKING LAMP GROUP(OPTION) - TB3-G593103

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

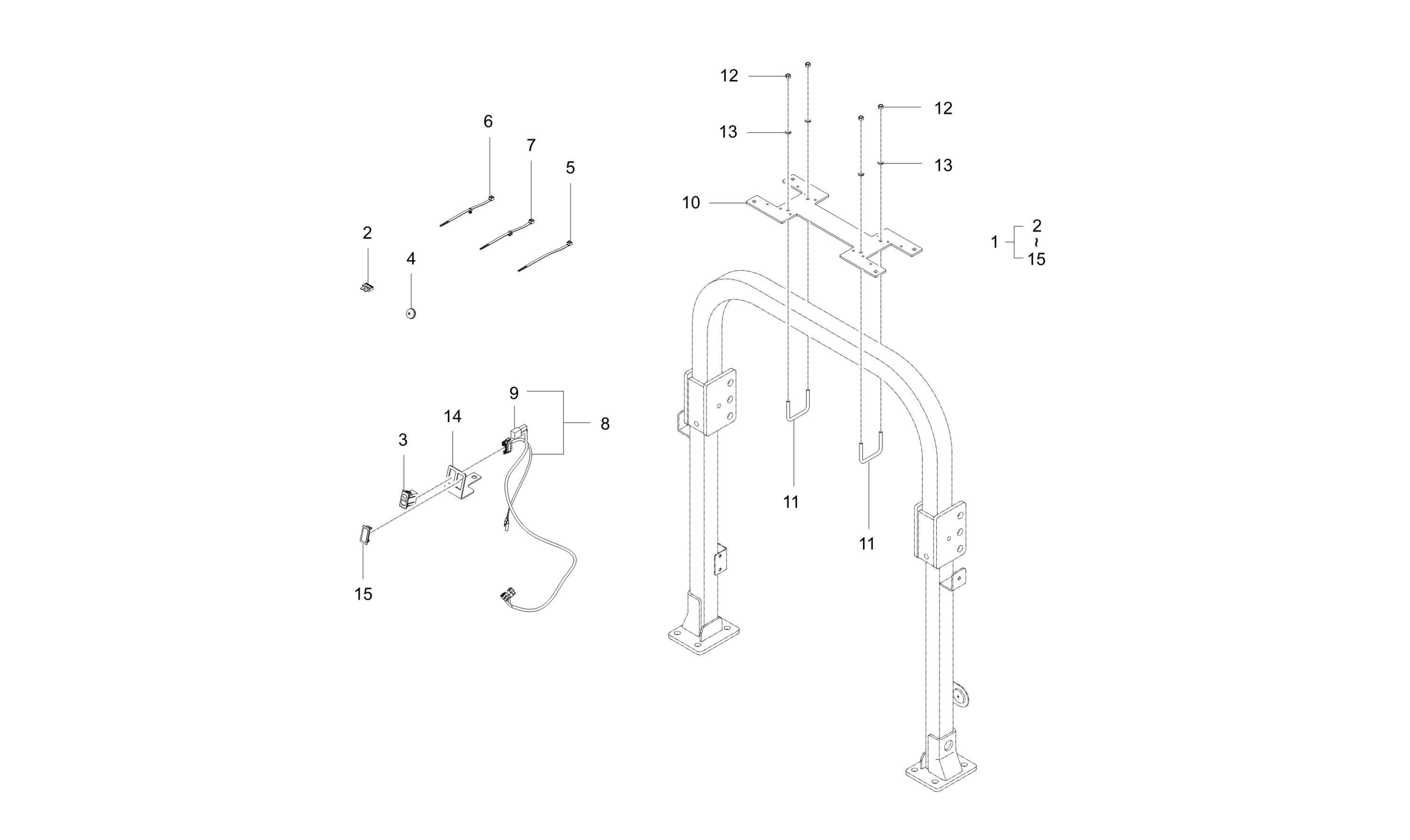

Diagram for REAR WORKING LAMP GROUP(OPTION) - TB3-G593103
  • 1

    OPTION KIT, WORK LAMP ASSY KIT-REAR

    • Part No. TB25-F0002A
    • 1 shown on diagram
    $.00
  • 2

    FUSE, 15A

    • Part No. 35820-7556-1
    • 1 shown on diagram
    $2.99
  • 3 ASSY SWITCH, WORKING LAMP-RR

    ASSY SWITCH, WORKING LAMP-RR

    • Part No. TD25-0208A
    • 1 shown on diagram
    $48.99
  • 4

    GROMMET

    • Part No. LF16-0227A
    • 1 shown on diagram
    $4.49
  • 5

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 20 shown on diagram
    $1.29
  • 6

    BAND v

    • Part No. T2198-82571
    • 6 shown on diagram
    $1.99
  • 7

    CLAMP

    • Part No. T5270-82551
    • 2 shown on diagram
    $6.99
  • 8

    ASSY WIRE HARNESS, WORKING LAMP-RR TB300

    • Part No. TB35-0077A
    • 1 shown on diagram
    $.00
  • 9

    RELAY 4P

    • Part No. T5710-69951
    • 1 shown on diagram
    $16.99
  • 10

    PLATE

    • Part No. TC26-2137A
    • T6.0
    • 1 shown on diagram
    $.00
  • 11

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 12

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 4 shown on diagram
    $0.79
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 14

    BRACKET, SWITCH

    • Part No. TB36-1291A
    • 1 shown on diagram
    $.00
  • 15 COVER

    COVER

    • Part No. T4025-68301
    • 1 shown on diagram
    $5.49
