SIDE FRAME GROUP(OPTION) - TB3-G6G5901

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

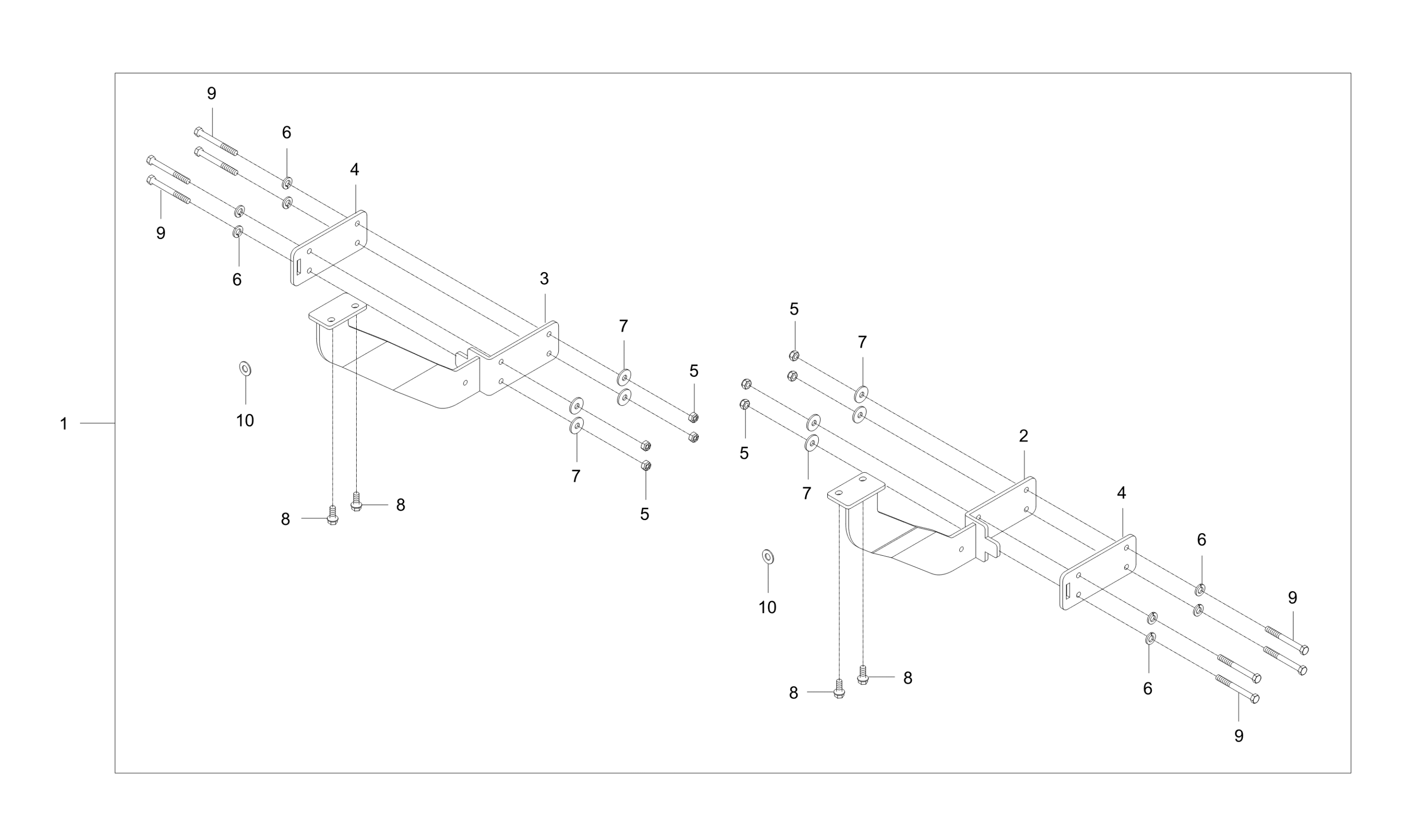

Diagram for SIDE FRAME GROUP(OPTION) - TB3-G6G5901
  • 1

    OPTION KIT, SIDE FRAME KIT

    • Part No. TB36-F0003A
    • 1 shown on diagram
    $.00
  • 2

    SUPPORT, FRAME-LH

    • Part No. TB36-1296A
    • 1 shown on diagram
    $.00
  • 3

    SUPPORT, FRAME-RH

    • Part No. TB36-1297A
    • 1 shown on diagram
    $.00
  • 4

    BRACKET-2

    • Part No. TC26-2135A
    • T6.0
    • 2 shown on diagram
    $.00
  • 5

    NUT

    • Part No. T2555-58731
    • 8 shown on diagram
    $1.89
  • 6 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 8 shown on diagram
    $0.79
  • 7 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 8 shown on diagram
    $1.09
  • 8 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
  • 9

    Bolt, M8 P1.25 x 75mm

    • Part No. 01153-50875
    • S45C
    • 8 shown on diagram
    $2.99
  • 10 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $.73
