FRONT WORKING LAMP GROUP - TB3-G593003

Kioti TRACTOR | CS Series | CS2510S (XY8500001 and up)

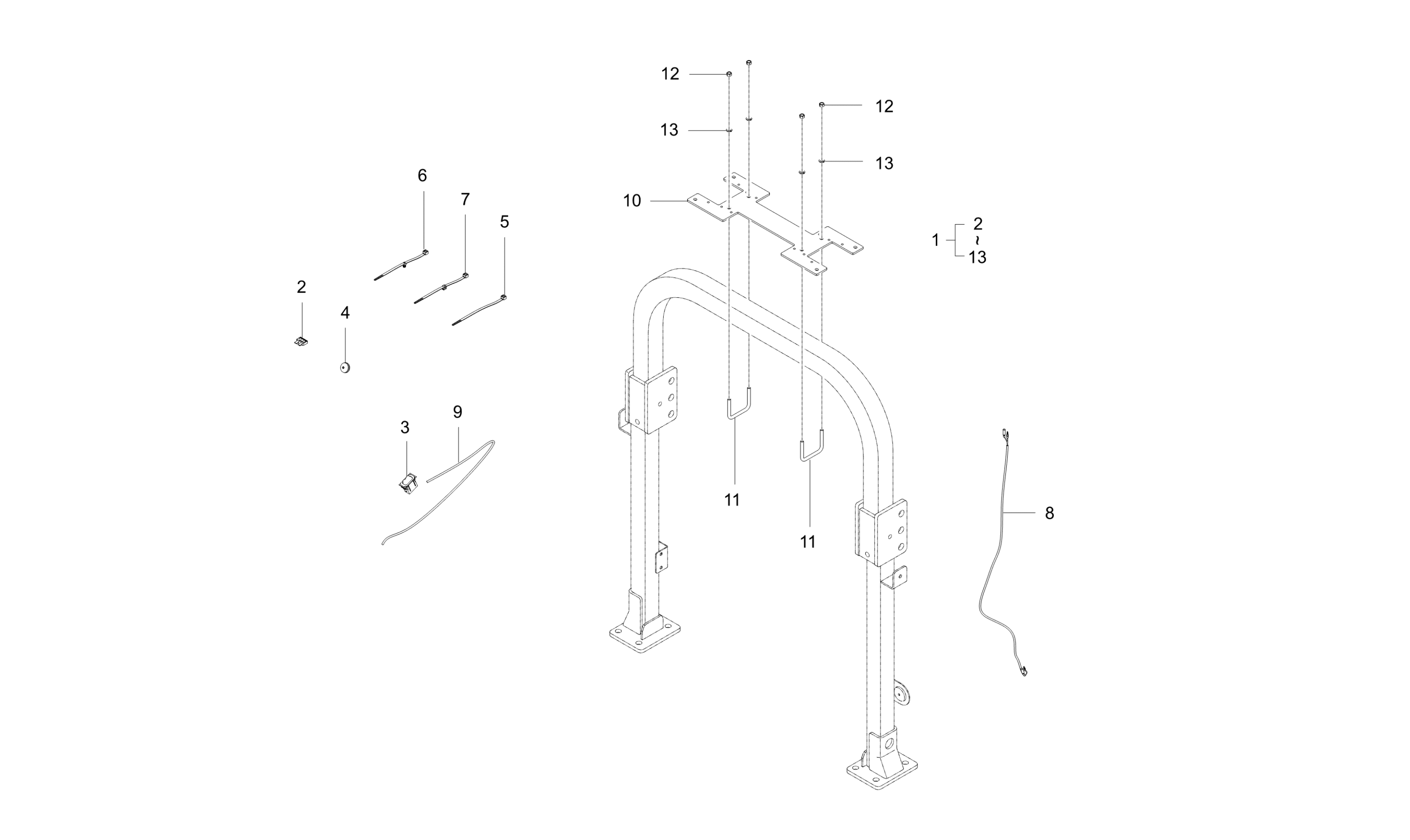

Diagram for FRONT WORKING LAMP GROUP - TB3-G593003
  • 1

    OPTION KIT, WORK LAMP ASSY KIT-FRONT

    • Part No. TB35-F0001A
    • 1 shown on diagram
    $.00
  • 2

    FUSE, 15A

    • Part No. 35820-7556-1
    • 1 shown on diagram
    $2.99
  • 3 SWITCH, WORKING LAMP, Replaced by TG15-0228A

    SWITCH, WORKING LAMP, Replaced by TG15-0228A

    • Part No. T4935-54221
    • 1 shown on diagram
    $.00
  • 4

    GROMMET

    • Part No. LF16-0227A
    • 1 shown on diagram
    $4.49
  • 5

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 20 shown on diagram
    $1.29
  • 6

    BAND v

    • Part No. T2198-82571
    • 6 shown on diagram
    $1.99
  • 7

    CLAMP

    • Part No. T5270-82551
    • 2 shown on diagram
    $6.99
  • 8

    ASSY WIRE HARNESS, WORKING LAMP-FR

    • Part No. TD25-0212A
    • 1 shown on diagram
    $.00
  • 9

    ASSY WIRE HARNESS, WORKING LAMP-FR SWITC

    • Part No. TB35-0064A
    • 1 shown on diagram
    $56.99
  • 10

    PLATE

    • Part No. TC26-2137A
    • T6.0
    • 1 shown on diagram
    $.00
  • 11

    U BOLT v

    • Part No. T2185-85101005
    • M10XP1.5
    • 2 shown on diagram
    $13.99
  • 12

    NUT

    • Part No. 02014-50100
    • M10XP1.5
    • 4 shown on diagram
    $0.79
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
