CLUTCH HOUSING GROUP - T5715-G214A

Kioti TRACTOR | DK Series | DK5010HS

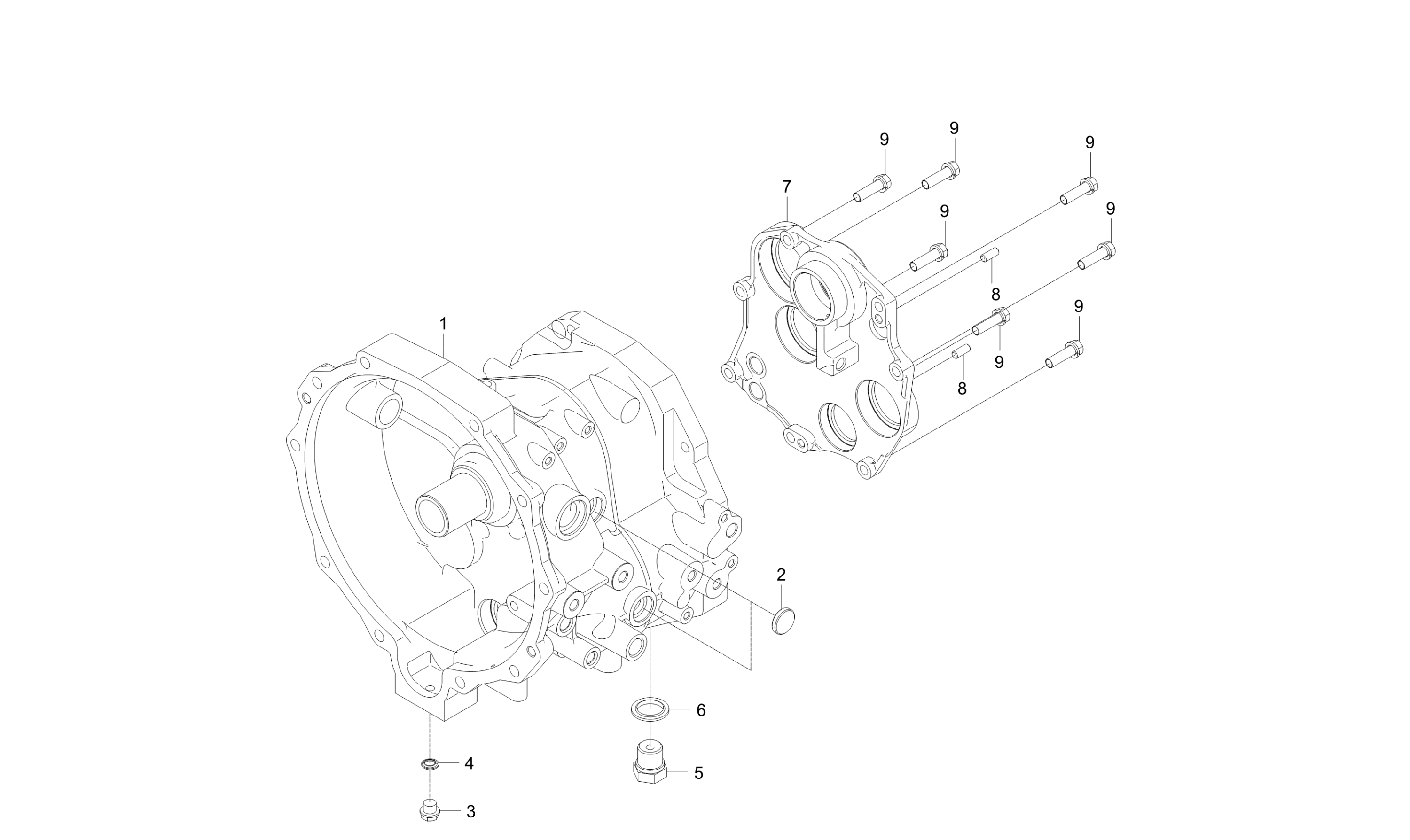

Diagram for CLUTCH HOUSING GROUP - T5715-G214A
  • 1

    HOUSING, CLUTCH dnr v, Replaced by T5715-14114

    • Part No. T5715-14112
    • Applied Dates Up to 2017-12-31
    • 1 shown on diagram
    $0.00
  • 2 CAP SEAL

    CAP SEAL

    • Part No. T4520-14872
    • 2 shown on diagram
    $6.49
  • 3 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 4 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 5

    PLUG v

    • Part No. 06311-55060
    • PS3/4
    • 1 shown on diagram
    $15.99
  • 6 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 7

    COVER, BEARING

    • Part No. T5715-14121
    • 1 shown on diagram
    $294.99
  • 8 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 9

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 7 shown on diagram
    $3.49
