SHUTTLE SHAFT GROUP - TD2-G251002

Kioti TRACTOR | DK Series | DK5010HS

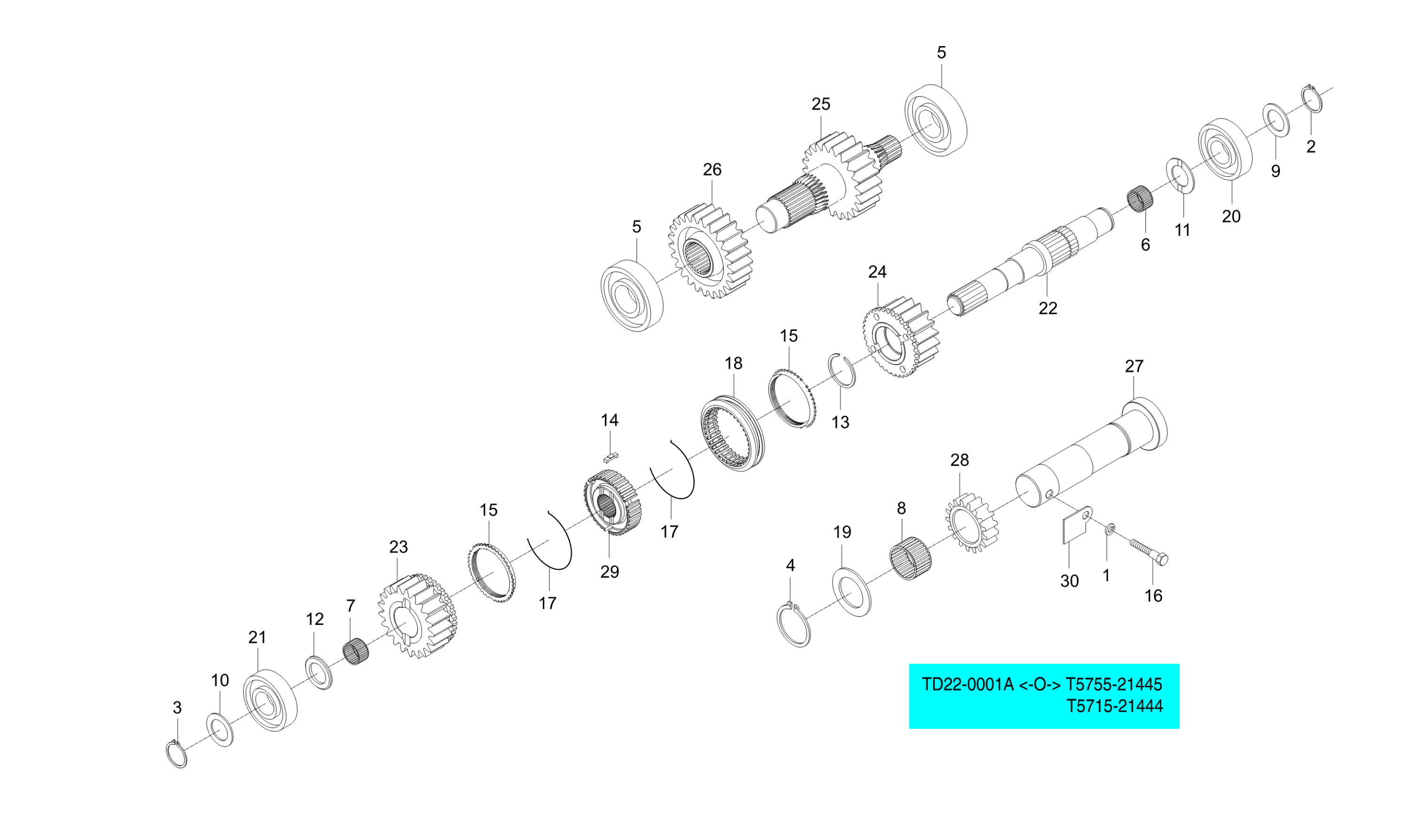

Diagram for SHUTTLE SHAFT GROUP - TD2-G251002
  • 1 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • Applied Dates 2014-10-15 and up
    • M10
    • 1 shown on diagram
    $0.79
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 3 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 4 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
  • 5 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 2 shown on diagram
    $29.99
  • 6

    BEARING,NEEDLE v

    • Part No. 08822-83327
    • 1 shown on diagram
    $31.99
  • 7

    BEARING,NEEDLE v

    • Part No. 08822-83327
    • 1 shown on diagram
    $31.99
  • 8

    BEARING,NEEDLE

    • Part No. 08823-54027
    • NTN,K354027
    • 1 shown on diagram
    $39.99
  • 9

    COLLAR v

    • Part No. 34150-2156-1
    • T2*42*42
    • 1 shown on diagram
    $3.49
  • 10

    COLLAR v

    • Part No. 34150-2156-1
    • T2*42*42
    • 1 shown on diagram
    $3.49
  • 11

    COLLAR, THRUST v

    • Part No. T2305-21762
    • T3.2
    • 1 shown on diagram
    $18.99
  • 12

    COLLAR, THRUST v

    • Part No. T2305-21762
    • T3.2
    • 1 shown on diagram
    $18.99
  • 13 Snap Ring

    Snap Ring

    • Part No. T2610-22821
    • 1 shown on diagram
    $9.99
  • 14

    KEY, SYNCHRONIZER v

    • Part No. T4240-21812
    • 3 shown on diagram
    $5.49
  • 15 SYNCHRONIZER ASSY

    SYNCHRONIZER ASSY

    • Part No. T4601-22851
    • 2 shown on diagram
    $269.99
  • 16

    BOLT SET

    • Part No. T4620-22791
    • 1 shown on diagram
    $12.99

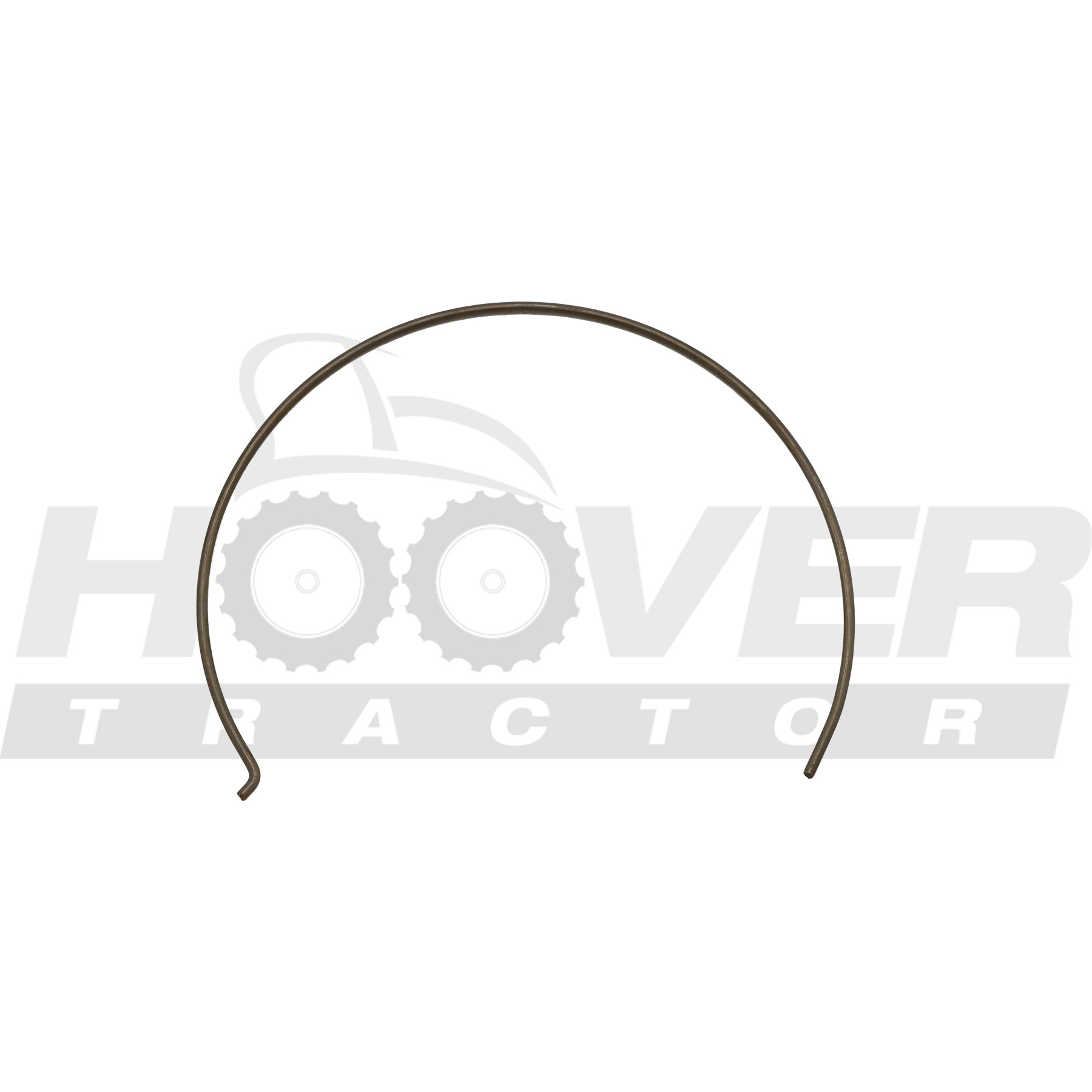

  • 17 SPRING,SYNCHRONIZER

    SPRING,SYNCHRONIZER

    • Part No. T4620-22822
    • DIA1.6
    • 2 shown on diagram
    $7.49
  • 18 Shift Collar

    Shift Collar

    • Part No. T4682-22842
    • 1 shown on diagram
    $154.99
  • 19

    COLLAR, THRUST

    • Part No. T4810-24541
    • 1 shown on diagram
    $33.99
  • 20

    BALL BEARING

    • Part No. T5210-96305
    • HC6305T2
    • 1 shown on diagram
    $44.99
  • 21

    BALL BEARING

    • Part No. T5210-96305
    • HC6305T2
    • 1 shown on diagram
    $44.99
  • 22

    SHAFT, SHUTTLE

    • Part No. T5715-22631
    • 1 shown on diagram
    $174.99
  • 23

    GEAR 21

    • Part No. T5755-22611
    • 1 shown on diagram
    $224.99
  • 24

    GEAR 18

    • Part No. T5755-22621
    • 1 shown on diagram
    $219.99
  • 25

    SHAFT, 22 GEAR

    • Part No. T5755-22641
    • 1 shown on diagram
    $299.99
  • 26

    GEAR 25

    • Part No. T5755-22651
    • 1 shown on diagram
    $164.99
  • 27

    SHAFT, IDDLE

    • Part No. T5755-22711
    • 1 shown on diagram
    $139.99
  • 28

    GEAR 17

    • Part No. T5755-22721
    • 1 shown on diagram
    $139.99
  • 29

    HUB, SYNCHRO

    • Part No. T5755-22811
    • 1 shown on diagram
    $149.99
  • 30

    STOPPER

    • Part No. TD22-0001A
    • 1 shown on diagram
    $6.99
