DIFF. LOCK FORK GROUP - T5715-G282A

Kioti TRACTOR | DK Series | DK5010HS

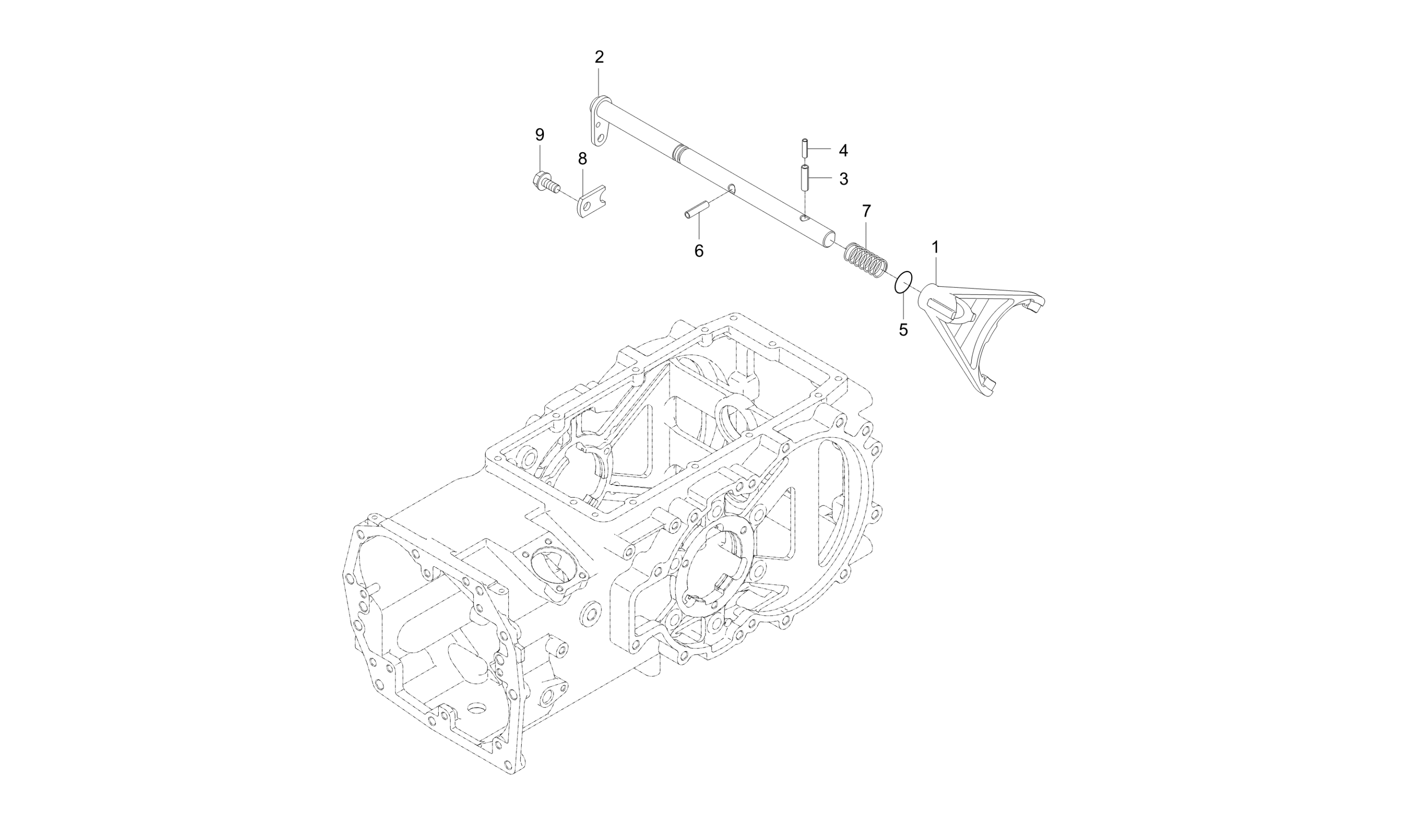

Diagram for DIFF. LOCK FORK GROUP - T5715-G282A
  • 1 FORK,SHAFT

    FORK,SHAFT

    • Part No. T5715-26631
    • 1 shown on diagram
    $124.99
  • 2

    CAM, DIFFERENTIAL LOCK

    • Part No. T5715-26682
    • Applied Dates 2015-03-20 and up
    • 1 shown on diagram
    $79.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 4 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00540
    • 1 shown on diagram
    $0.79
  • 5 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $0.90
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 7

    FRICTION SPRING

    • Part No. T2555-26641
    • 1 shown on diagram
    $9.99
  • 8

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Applied Dates Up to 2014-12-31
    • M8XP1.25
    • 1 shown on diagram
    $1.79
