SHUTTLE CLUTCH GROUP - TD2-G253001

Kioti TRACTOR | DK Series | DK5010HS

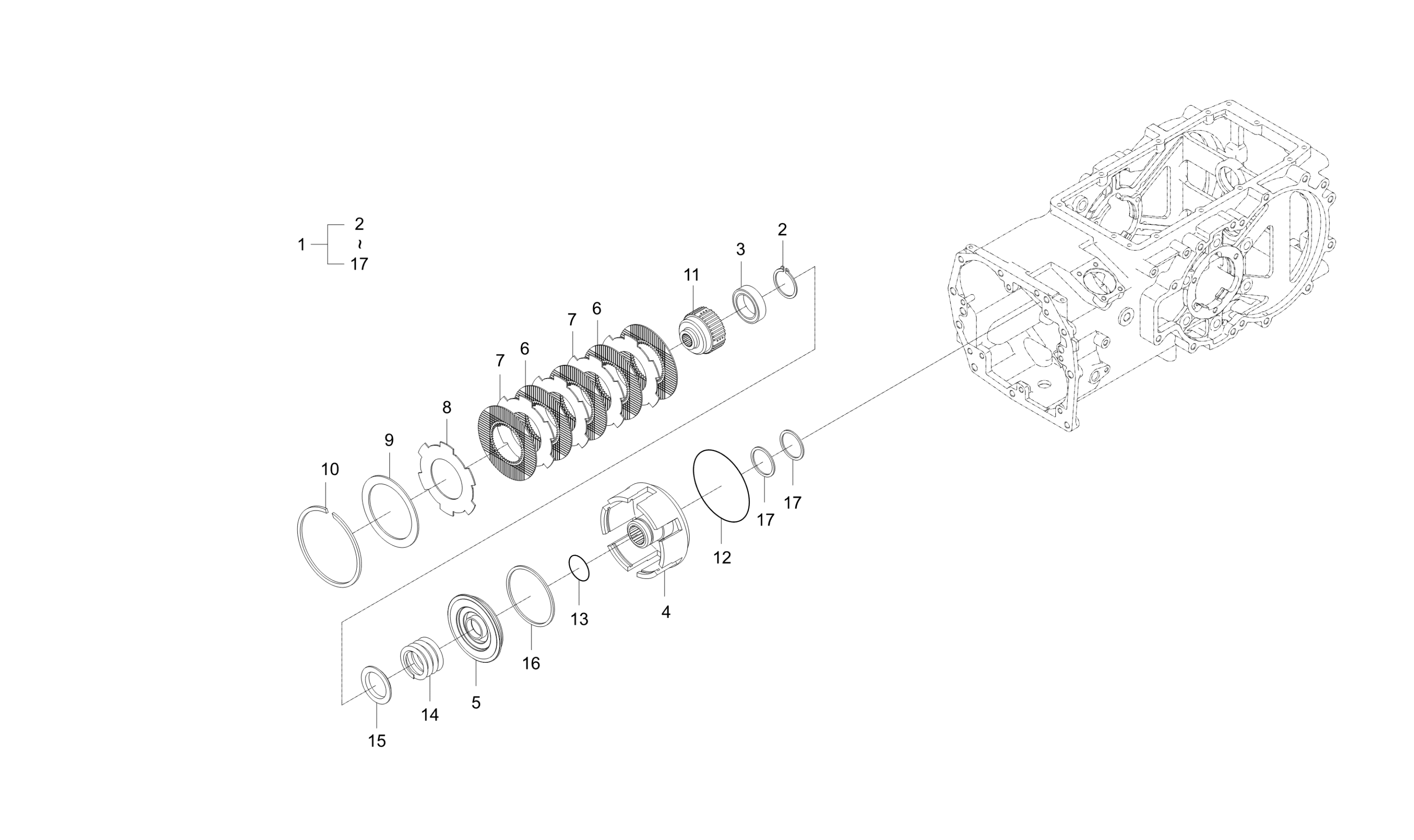

Diagram for SHUTTLE CLUTCH GROUP - TD2-G253001
  • 1

    ASSY, HYD CLUTCH

    • Part No. T5755-22103
    • *multiple options for # 1
    • 1 shown on diagram
    $1,059.99
  • 1

    ASSY, HYD CLUTCH obs v

    • Part No. T5755-22104
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $799.99
  • 2 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
  • 3

    BEARING,BALL

    • Part No. 08101-06907
    • #6907
    • 1 shown on diagram
    $49.99
  • 4

    BODY, CLUTCH

    • Part No. T5755-22112
    • 1 shown on diagram
    $0.00
  • 5

    PISTON

    • Part No. T5755-22152
    • 1 shown on diagram
    $0.00
  • 6

    DISK, CLUTCH

    • Part No. T5755-22272
    • 4 shown on diagram
    $29.99
  • 7

    PLATE, CLUTCH

    • Part No. T5755-22281
    • 4 shown on diagram
    $16.99
  • 8

    PLATE, PRESSURE

    • Part No. T5755-22321
    • T3.0
    • 1 shown on diagram
    $23.99
  • 9

    PLATE SPRING

    • Part No. T5755-22352
    • 1 shown on diagram
    $0.00
  • 10

    RING, SNAP

    • Part No. T5755-22361
    • T2.0
    • 1 shown on diagram
    $0.00
  • 11

    HUB, SPLINE

    • Part No. T5755-22512
    • 1 shown on diagram
    $0.00
  • 12

    O RING

    • Part No. T5755-22531
    • 1 shown on diagram
    $17.99
  • 13

    O RING

    • Part No. T5755-22541
    • 1 shown on diagram
    $6.99
  • 14

    SPRING

    • Part No. T5755-22551
    • 1 shown on diagram
    $42.99
  • 15

    SPRING SEAT obs

    • Part No. T5755-22561
    • 1 shown on diagram
    $55.99
  • 16

    ASSY RING, PISTON

    • Part No. T5755-22571
    • 1 shown on diagram
    $25.99
  • 17

    RING, SEAL dnr v

    • Part No. TD22-0084A
    • 2 shown on diagram
    $19.99
