PTO SHAFT GROUP - T5715-G270A

Kioti TRACTOR | DK Series | DK5010HS

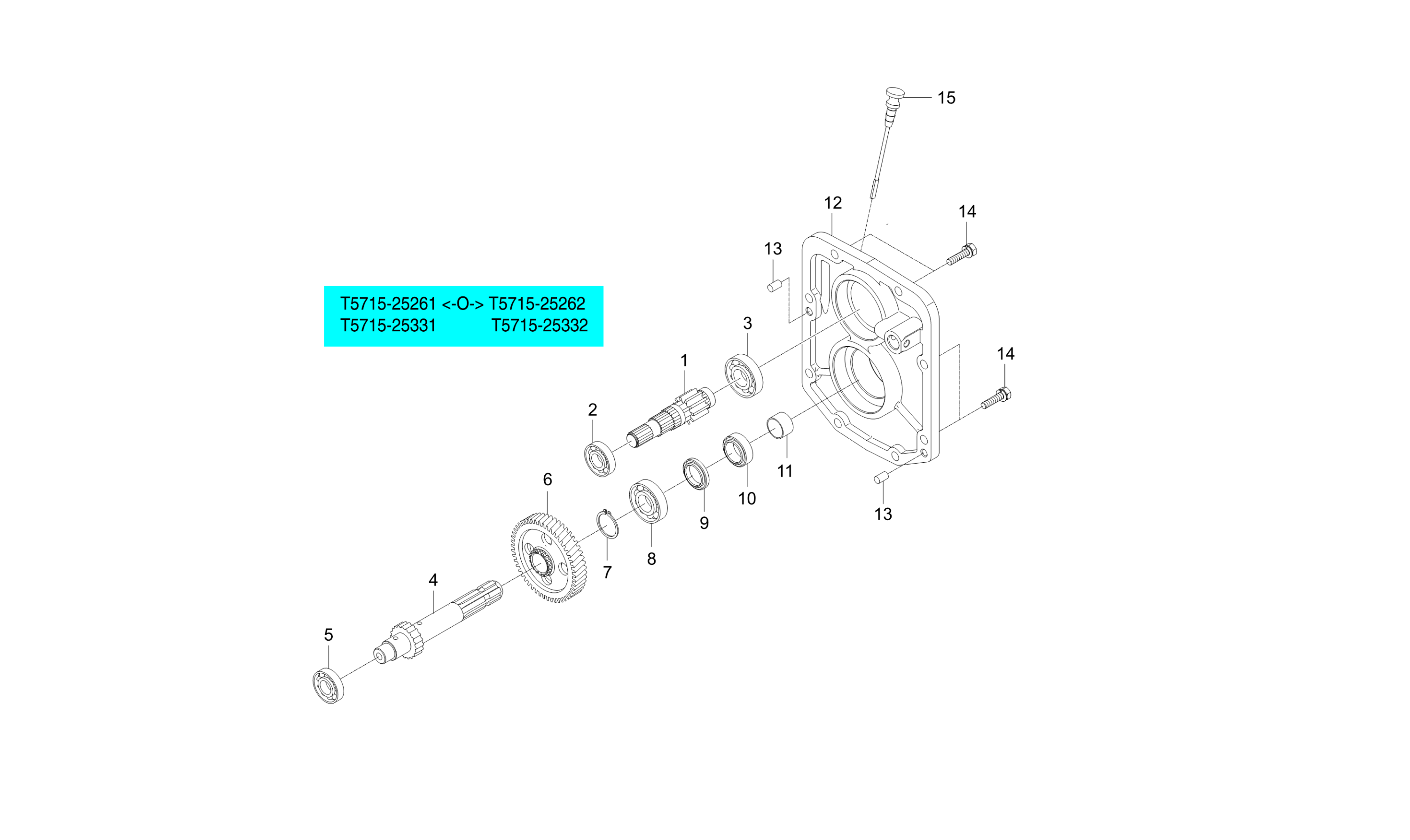

Diagram for PTO SHAFT GROUP - T5715-G270A
  • 1

    SHAFT, GEAR, Replaced by T5715-25263

    • Part No. T5715-25262
    • Applied Dates 2014-10-07 to 2018-11-20
    • 1 shown on diagram
    $0.00
  • 2

    BEARING,BALL

    • Part No. 08101-06305
    • Applied Dates 2014-05-15 and up
    • DIA25
    • 1 shown on diagram
    $24.99
  • 3 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 1 shown on diagram
    $29.99
  • 4

    SHAFT,PTO OUTPUT

    • Part No. T5715-25281
    • 1 shown on diagram
    $149.99
  • 5

    BEARING,BALL

    • Part No. 08101-06305
    • Applied Dates 2014-05-15 and up
    • DIA25
    • 1 shown on diagram
    $24.99
  • 6

    GEAR 47

    • Part No. T5715-25332
    • Applied Dates 2014-10-07 to 2018-11-20
    • 1 shown on diagram
    $139.99
  • 7 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • Applied Dates 2014-10-07 and up
    • DIA35
    • 1 shown on diagram
    $1.89
  • 8 BEARING, BALL 35x80x21

    BEARING, BALL 35x80x21

    • Part No. 08101-06307
    • DIA35
    • 1 shown on diagram
    $41.99
  • 9 SEAL, OIL V

    SEAL, OIL V

    • Part No. T4620-25442
    • 1 shown on diagram
    $25.99
  • 10 SEAL, OIL V

    SEAL, OIL V

    • Part No. T4620-25452
    • 1 shown on diagram
    $56.99
  • 11

    SLEEVE

    • Part No. T4620-25383
    • 1 shown on diagram
    $39.99
  • 12

    CASE PTO

    • Part No. T5710-25411
    • 1 shown on diagram
    $499.99
  • 13 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 2 shown on diagram
    $1.79
  • 14

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 8 shown on diagram
    $3.49
  • 15

    GAUGE,OIL

    • Part No. T5715-25901
    • 1 shown on diagram
    $44.99
