RANGE FORK GROUP - T5715-G254A

Kioti TRACTOR | DK Series | DK5010HS

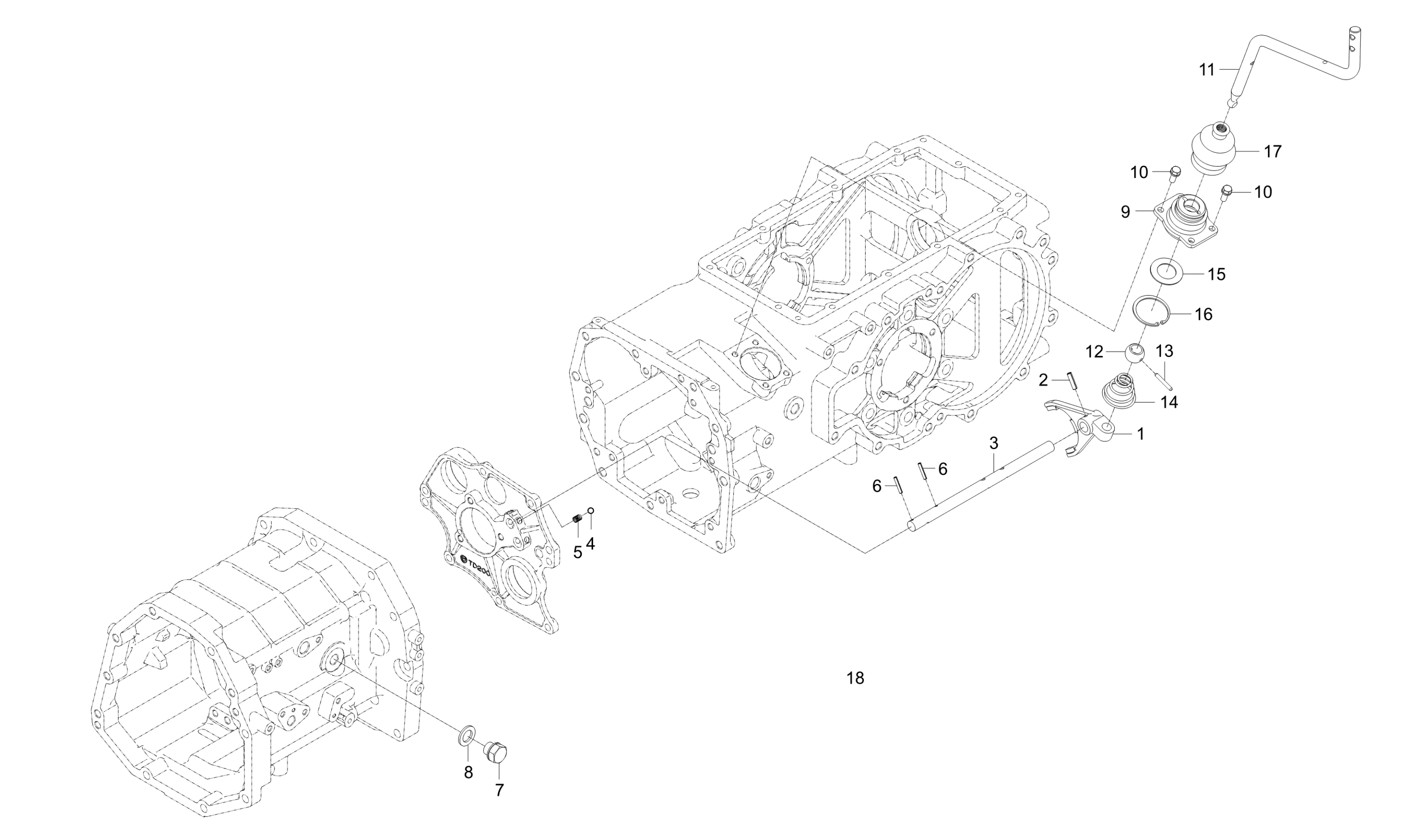

Diagram for RANGE FORK GROUP - T5715-G254A
  • 1

    FORK, SHIFT RANGE

    • Part No. T5715-23112
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $96.99
  • 2 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • Applied Dates 2014-12-04 and up
    • DIA6.4XL25
    • 1 shown on diagram
    $1.09
  • 3

    ROD, FORK RANGE

    • Part No. T5715-23131
    • 1 shown on diagram
    $154.99
  • 4 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 5 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00425
    • 2 shown on diagram
    $0.68
  • 7 PLUG M16 P 1.25

    PLUG M16 P 1.25

    • Part No. 06331-45016
    • M16P1.5
    • 1 shown on diagram
    $3.99
  • 8 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-01600
    • 1 shown on diagram
    $1.99
  • 9

    COVER, RANGE SHIFT

    • Part No. T5715-23152
    • 1 shown on diagram
    $86.99
  • 10 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates 2014-12-29 and up
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 11

    LEVER, RANGE, Replaced by T5715-23163

    • Part No. T5715-23162
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $0.00
  • 12

    BALL

    • Part No. T5715-21331
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $94.99
  • 13 PIN

    PIN

    • Part No. T5715-21341
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $11.99
  • 14

    SPRING,CONE

    • Part No. T5715-21361
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $89.99
  • 15

    WASHER

    • Part No. T5715-21371
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $14.99
  • 16 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • Applied Dates 2014-12-29 and up
    • DIA52
    • 1 shown on diagram
    $2.49
  • 17

    BOOT dnr v, Replaced by T5715-21382

    • Part No. T5715-21381
    • Applied Dates Up to 2015-07-24
    • 1 shown on diagram
    $0.00
  • 18

    OB PIN,SPRING

    • Part No. 05411-00412
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $0.90
