SHUTTLE FORK GROUP - T5755-G238A

Kioti TRACTOR | DK Series | DK5010HS

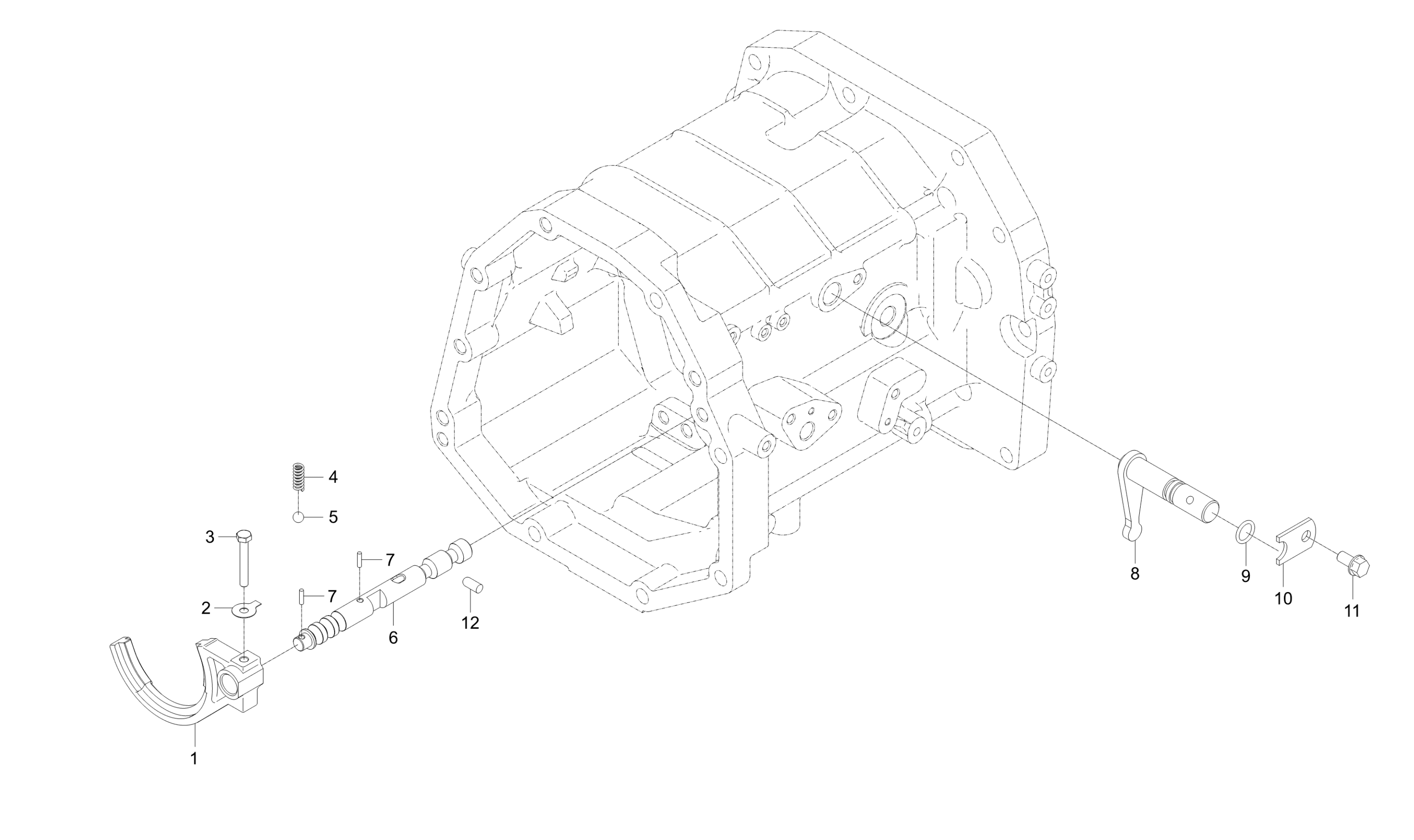

Diagram for SHUTTLE FORK GROUP - T5755-G238A
  • 1 FORK v

    FORK v

    • Part No. T5755-22762
    • Applied Dates 2014-08-21 and up
    • 1 shown on diagram
    $79.99
  • 2 WASHER v

    WASHER v

    • Part No. 04111-50060
    • M06
    • 1 shown on diagram
    $1.79
  • 3

    BOLT

    • Part No. T2610-22171
    • 1 shown on diagram
    $14.99
  • 4 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
    $3.49
  • 5 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 6

    ROD, FORK SHUTTLE

    • Part No. T5755-22162
    • Applied Dates 2014-11-12 and up
    • 1 shown on diagram
    $119.99
  • 7 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00425
    • 2 shown on diagram
    $0.68
  • 8

    ARM, SHIFT SHUTTLE

    • Part No. T5715-22121
    • 1 shown on diagram
    $46.99
  • 9 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $0.90
  • 10

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 11 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Applied Dates Up to 2014-12-31
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 12

    PIN

    • Part No. T2555-22291
    • 1 shown on diagram
    $6.49
