CLUTCH HOUSING GROUP - TC2-G222007

Kioti TRACTOR | CK Series | CK3510SEB

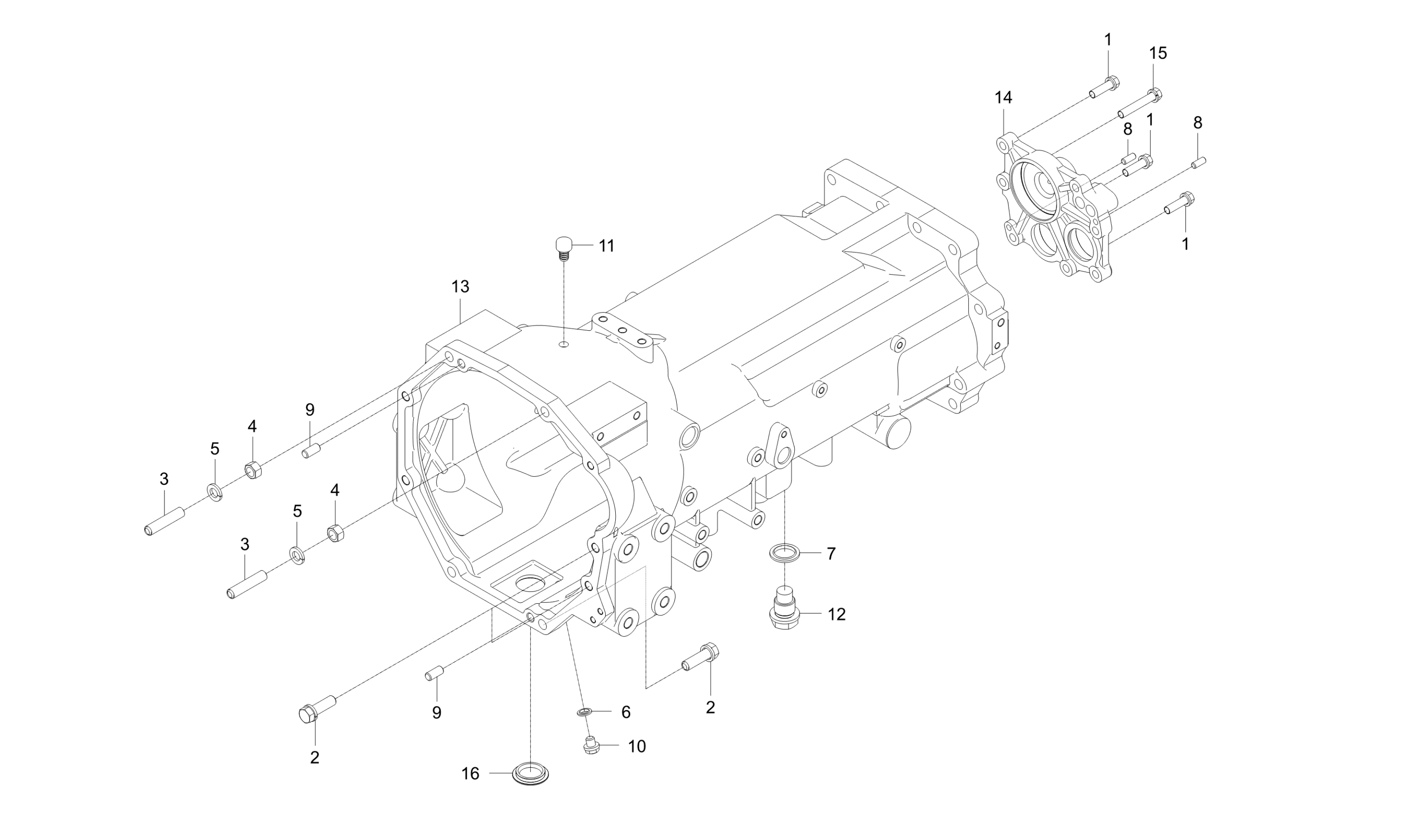

Diagram for CLUTCH HOUSING GROUP - TC2-G222007
  • 1

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 2 BOLT M12P1.25×40 v

    BOLT M12P1.25×40 v

    • Part No. 01177-51240
    • M12XP1.25 (9T/SP
    • 6 shown on diagram
    $2.99
  • 3

    STUD

    • Part No. 01574-51240
    • M12*1.25*30
    • 2 shown on diagram
    $6.99
  • 4 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 5
    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
  • 6 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 7 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 8 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 9

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 10
    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
  • 11

    PLUG v

    • Part No. T2305-43883
    • 1 shown on diagram
    $7.49
  • 12 PLUG

    PLUG

    • Part No. T4125-14261
    • 1 shown on diagram
    $39.99
  • 13

    TRK – HOUSING, CLUTCH v

    • Part No. TC22-0041C
    • * multiple options for #13
    • 1 shown on diagram
    $734.99
  • 13
    • Part No. TC22-0041D
    • Compatibility New repl old
    • * multiple options for #13
    • 1 shown on diagram
  • 14

    COVER, BEARING C/H

    • Part No. TC22-0049B
    • 1 shown on diagram
    $239.99
  • 15

    BOLT, WASHER

    • Part No. 01133-51060
    • 1 shown on diagram
    $2.99
  • 16

    PLUG dnr v

    • Part No. 38630-4484-3
    • 1 shown on diagram
    $7.99
