REAR DIFF LOCK GROUP - TC2-G283003

Kioti TRACTOR | CK Series | CK3510SEB

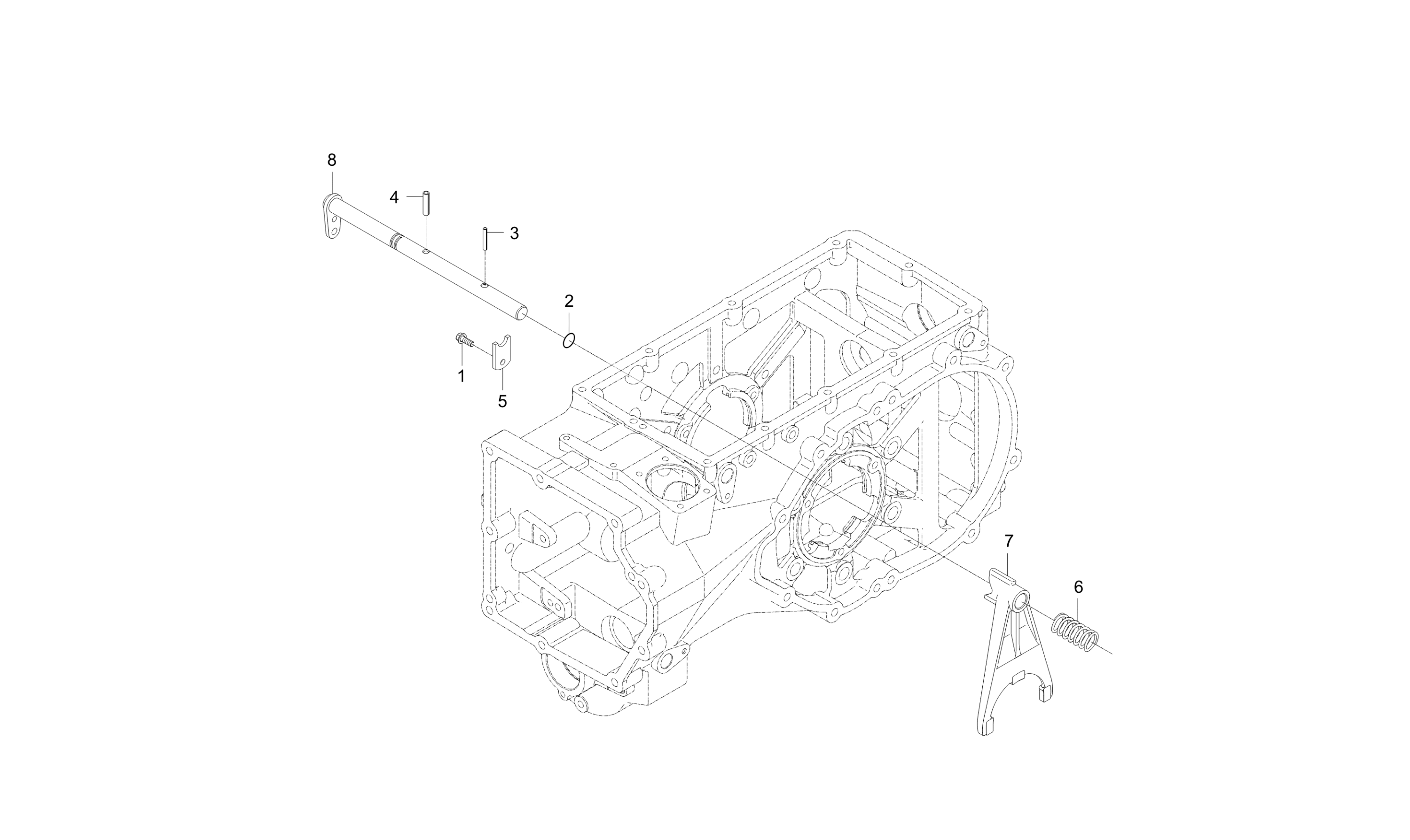

Diagram for REAR DIFF LOCK GROUP - TC2-G283003
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2 O RING

    O RING

    • Part No. 04811-00140
    • * multiple options for #2
    • 1 shown on diagram
    $.90
  • 2 O RING

    O RING

    • Part No. 04811-00140
    • Compatibility New repl old
    • * multiple options for #2
    • 2 shown on diagram
    $.90
  • 3 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00540
    • 1 shown on diagram
    $0.79
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 5

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 6

    FRICTION SPRING

    • Part No. T2555-26641
    • 1 shown on diagram
    $9.99
  • 7 FORK,SHAFT

    FORK,SHAFT

    • Part No. T5715-26631
    • 1 shown on diagram
    $124.99
  • 8
    • Part No. T5815-26682
    • * multiple options for #8
    • 1 shown on diagram
  • 8

    CAM,DIFFRENTIAL LOCK

    • Part No. T5815-26683
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $.00
