TRANSMISSION CASE GROUP - TC2-G224011

Kioti TRACTOR | CK Series | CK3510SEB

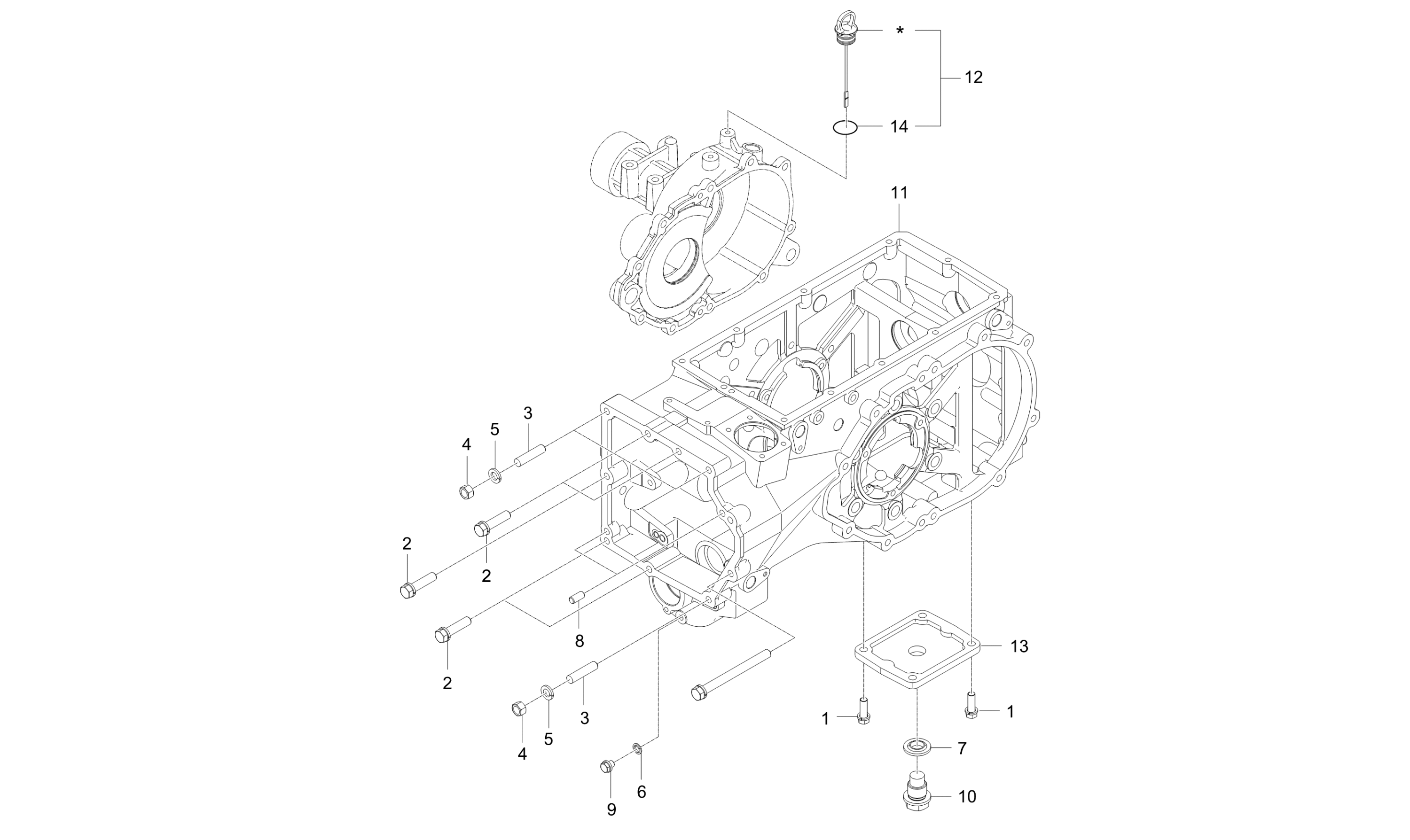

Diagram for TRANSMISSION CASE GROUP - TC2-G224011
  • 1

    BOLT, M10 P1.25×30

    • Part No. 01177-51030
    • M10XP1.25(9T)
    • 4 shown on diagram
    $3.49
  • 2

    BOLT

    • Part No. 01177-51250
    • M12XP1.25(9T)
    • 8 shown on diagram
    $3.99
  • 3

    STUD V

    • Part No. 01574-51250
    • 2 shown on diagram
    $6.49
  • 4 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 5
    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
  • 6 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 7 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 8

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 9
    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
  • 10 PLUG

    PLUG

    • Part No. T4125-14261
    • 1 shown on diagram
    $39.99
  • 11

    TRK CASE,TRANSMISSION

    • Part No. T5815-21116
    • 1 shown on diagram
    $964.99
  • 12

    GAUGE OIL

    • Part No. T5815-23973
    • Serial No. Up to WJJ700200
    • * multiple options for #12
    • 1 shown on diagram
    $49.99
  • 12
    • Part No. T5815-23974
    • Compatibility New repl old
    • Serial No. WJJ700201 and up
    • * multiple options for #12
    • 1 shown on diagram
  • 13

    COVER

    • Part No. T5815-24171
    • 1 shown on diagram
    $79.99
  • 14 O RING

    O RING

    • Part No. 04811-00200
    • DIA19.8
    • 2 shown on diagram
    $1.39
