SHUTTLE SHAFT GROUP - TC2-G251002

Kioti TRACTOR | CK Series | CK3510SEB

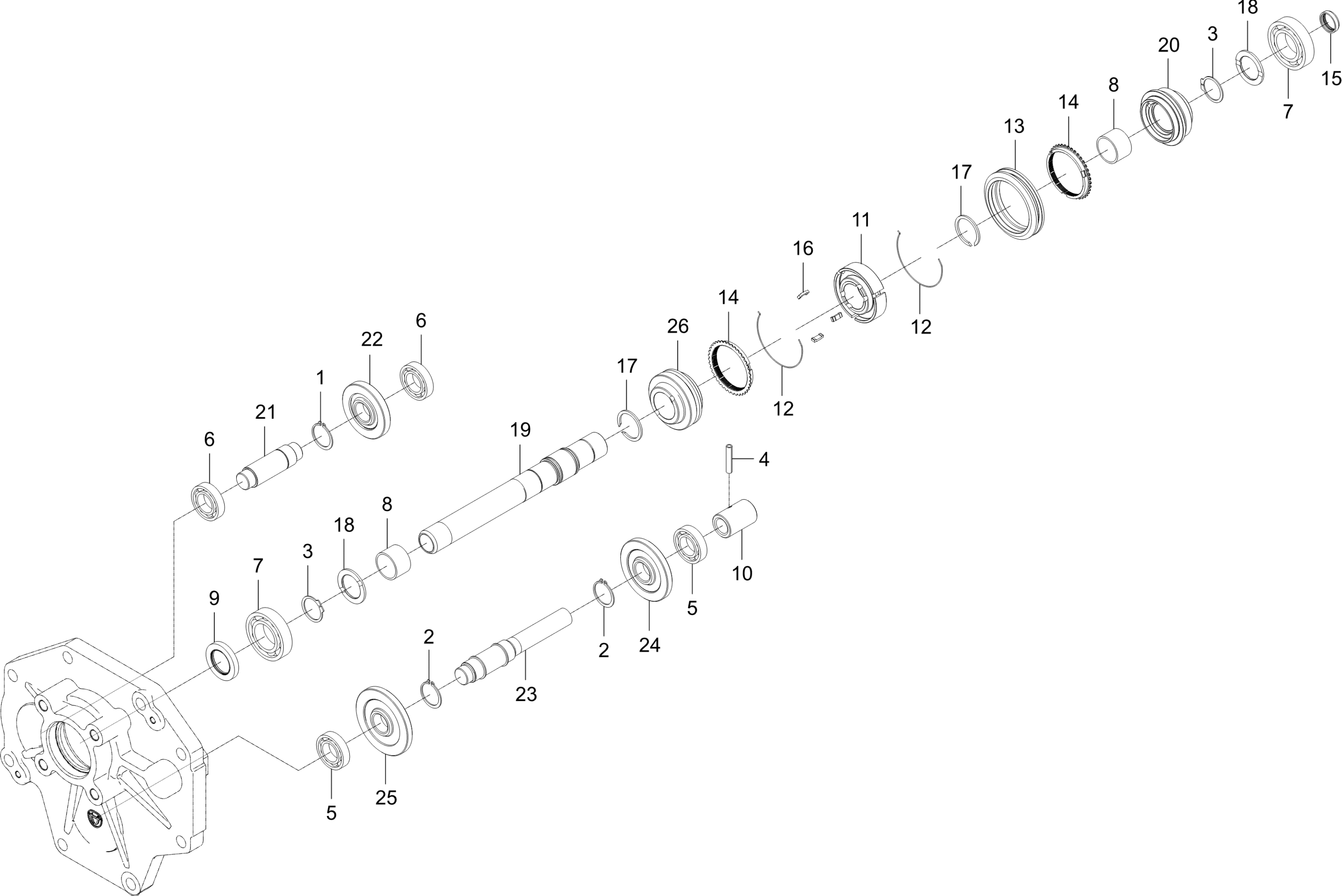

Diagram for SHUTTLE SHAFT GROUP - TC2-G251002
  • 1 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 1 shown on diagram
    $1.59
  • 2 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 2 shown on diagram
    $1.59
  • 3 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 2 shown on diagram
    $1.89
  • 4
    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
  • 5 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 2 shown on diagram
    $17.99
  • 6 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 2 shown on diagram
    $17.99
  • 7 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 2 shown on diagram
    $28.99
  • 8

    BEARING,NEEDLE

    • Part No. 08823-54027
    • NTN,K354027
    • 2 shown on diagram
    $39.99
  • 9

    SEAL,OIL

    • Part No. 09500-35558
    • 1 shown on diagram
    $56.99
  • 10 Coupling, 42.7 mm OD

    Coupling, 42.7 mm OD

    • Part No. T4620-44592
    • OD42.7*T1.6
    • 1 shown on diagram
    $39.99
  • 11
    • Part No. T2185-22812
    • 1 shown on diagram
  • 12

    SPRING, SYNCHRONIZER dnr v

    • Part No. T2185-22824
    • PI1.2
    • 2 shown on diagram
    $8.49
  • 13

    SHIFTER dnr v

    • Part No. T2185-22846
    • 1 shown on diagram
    $99.99

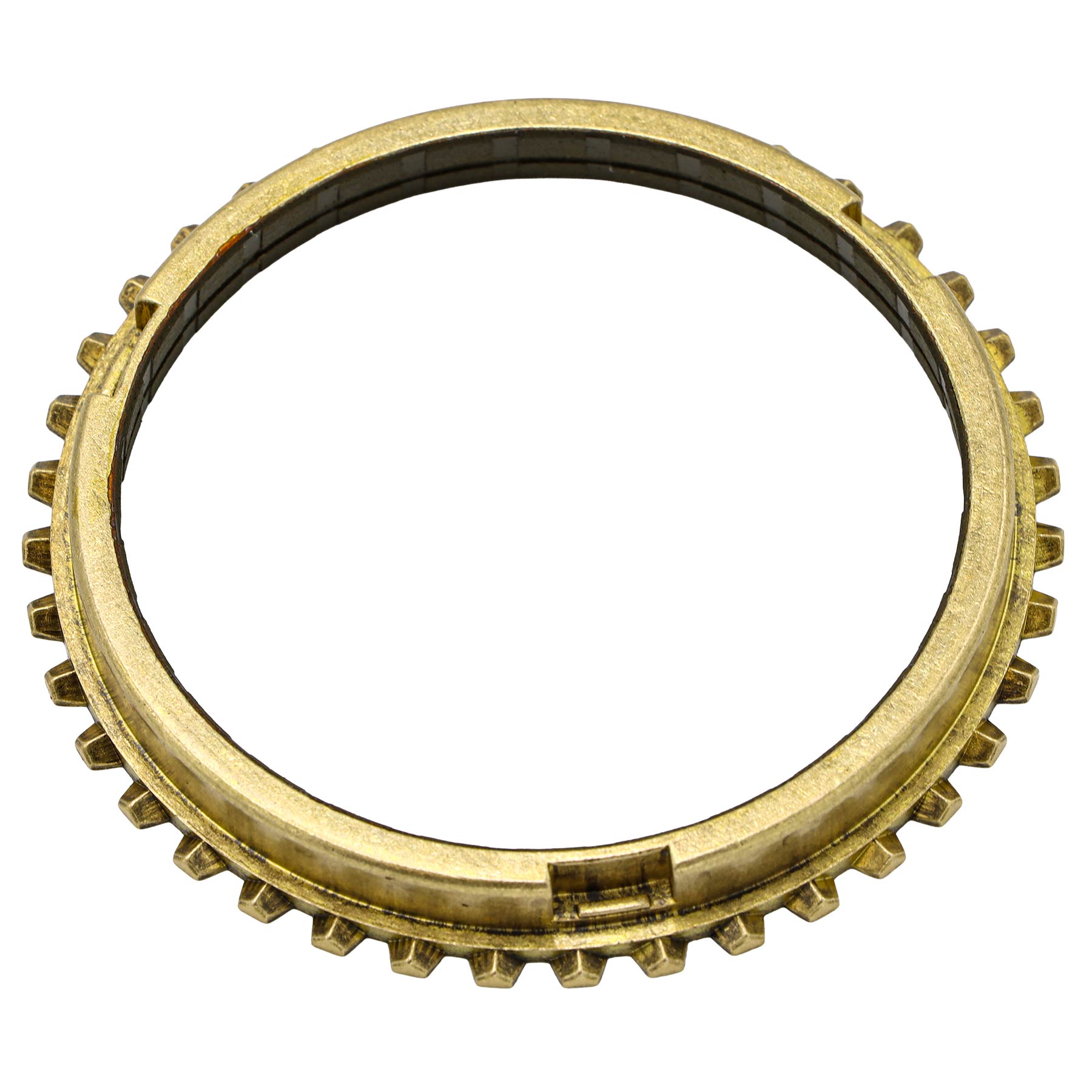

  • 14 RING,SYNCHRONIER V

    RING,SYNCHRONIER V

    • Part No. T2185-22852
    • 2 shown on diagram
    $47.99

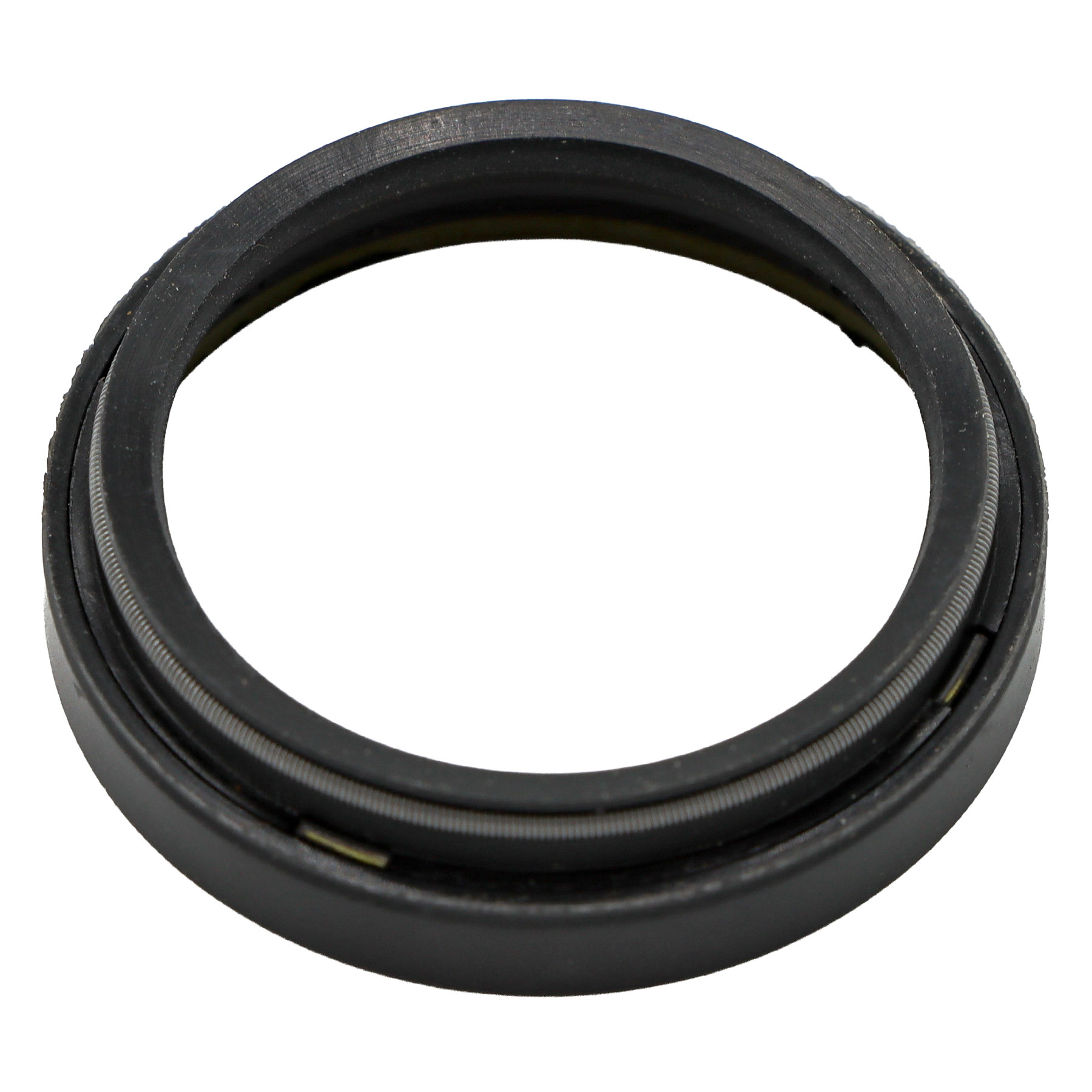

  • 15 SEAL, OIL

    SEAL, OIL

    • Part No. T2440-21361
    • 1 shown on diagram
    $5.99
  • 16 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 3 shown on diagram
    $6.99
  • 17
    • Part No. T4810-22852
    • 2 shown on diagram
  • 18

    COLLAR, THRUST

    • Part No. T4810-24541
    • 2 shown on diagram
    $33.99
  • 19

    SHAFT, SHUTTLE

    • Part No. TC22-0074B
    • 1 shown on diagram
    $294.99
  • 20
    • Part No. TC22-0075B
    • 1 shown on diagram
  • 21

    SHAFT, IDLE-REVERSE

    • Part No. TC22-0076A
    • 1 shown on diagram
    $75.99
  • 22

    GEAR-25

    • Part No. TC22-0077A
    • 1 shown on diagram
    $73.99
  • 23

    SHAFT, COUNTER-MAIN

    • Part No. TC22-0078A
    • 1 shown on diagram
    $87.99
  • 24
    • Part No. TC22-0079A
    • 1 shown on diagram
  • 25

    GEAR-31

    • Part No. TC22-0080A
    • 1 shown on diagram
    $85.99
  • 26
    • Part No. TC22-0081B
    • 1 shown on diagram
