MAIN SHIFT FORK GROUP - TC2-G242002

Kioti TRACTOR | CK Series | CK3520SEB

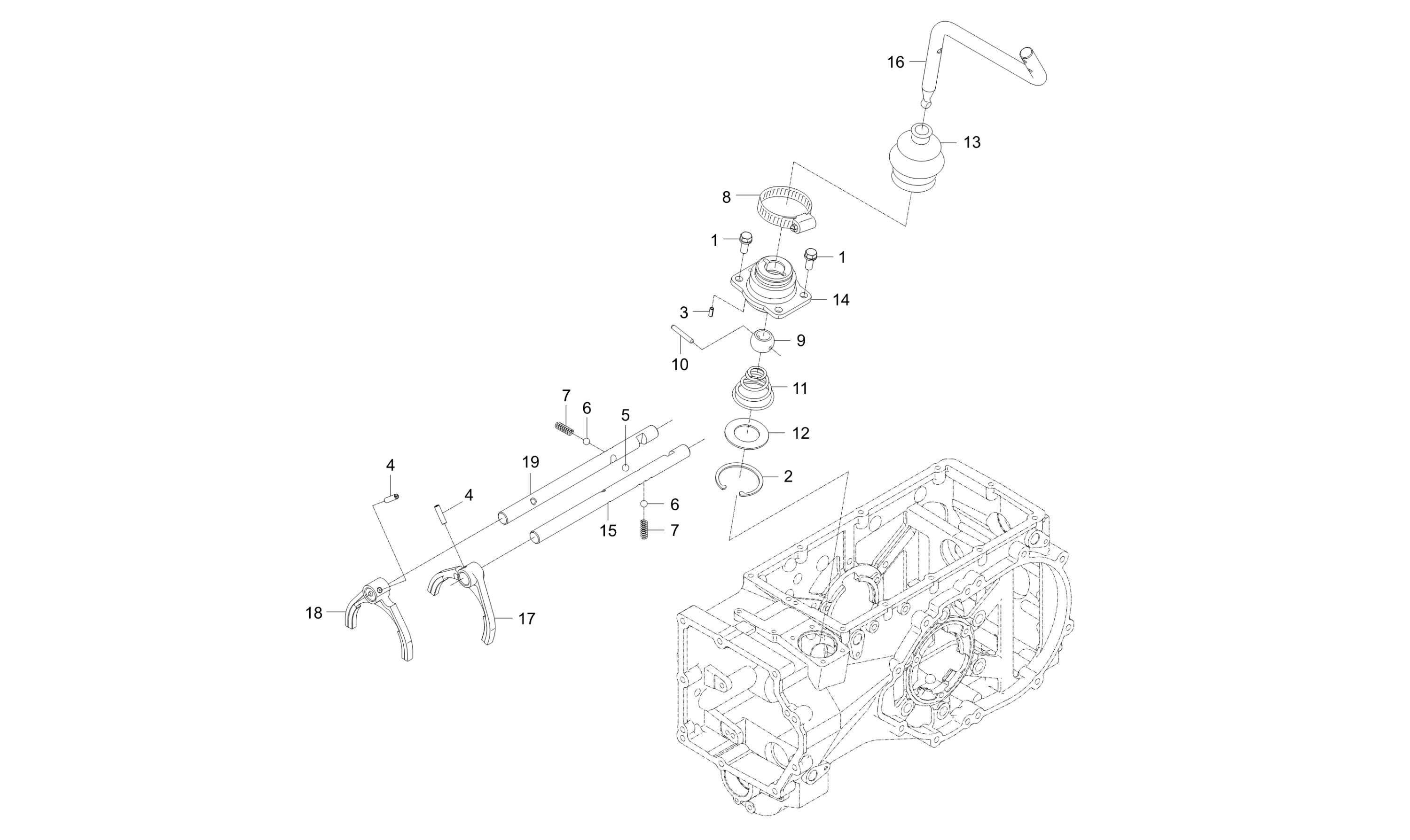

Diagram for MAIN SHIFT FORK GROUP - TC2-G242002
  • 1 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 3

    OB PIN,SPRING

    • Part No. 05411-00412
    • 1 shown on diagram
    $0.9
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00625
    • DIA6.4XL25
    • 2 shown on diagram
    $1.09
  • 5

    BALL v

    • Part No. 07715-00401
    • 1 shown on diagram
    $1.49
  • 6 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 2 shown on diagram
    $0.56
  • 7 FRICTION SPRING V

    FRICTION SPRING V

    • Part No. 62331-1853-2
    • DIA1.4
    • 2 shown on diagram
    $3.49
  • 8

    CLAMP, HOSE

    • Part No. E7300-11781
    • DIA65 Stan65#
    • 1 shown on diagram
    $6.49
  • 9

    BALL

    • Part No. T5715-21331
    • 1 shown on diagram
    $94.99
  • 10

    PIN dnr v

    • Part No. T5715-21342
    • 1 shown on diagram
    $8.49
  • 11

    SPRING,CONE

    • Part No. T5715-21361
    • 1 shown on diagram
    $89.99
  • 12

    Washer, Plain

    • Part No. T5715-21372
    • 1 shown on diagram
    $13.99
  • 13 JABARA (Rubber boot cover)

    JABARA (Rubber boot cover)

    • Part No. T5715-21383
    • 1 shown on diagram
    $36.99
  • 14

    COVER, RANGE SHIFT

    • Part No. T5715-23152
    • 1 shown on diagram
    $86.99
  • 15

    FORK, MAIN SPEED CHANGE

    • Part No. T5815-21242
    • 1 shown on diagram
    $114.99
  • 16

    LEVER, MAIN SHIFT v

    • Part No. T5815-23162
    • 1 shown on diagram
    $109.99
  • 17

    FORK, MAIN SHIFT 3,4

    • Part No. TC22-0085B
    • 1 shown on diagram
    $84.99
  • 18

    ROD, FORK 1,2

    • Part No. TC22-0086B
    • 1 shown on diagram
    $96.99
  • 19

    ROD, FORK-(3,4)

    • Part No. TC22-0087A
    • 1 shown on diagram
    $109.99
