PTO CLUTCH GROUP - TC2-G2C3003

Kioti TRACTOR | CK Series | CK3520SEB

Diagram for PTO CLUTCH GROUP - TC2-G2C3003
  • 1 RING,SNAP

    RING,SNAP

    • Part No. 04611-00550
    • DIA55
    • 1 shown on diagram
    $3.99

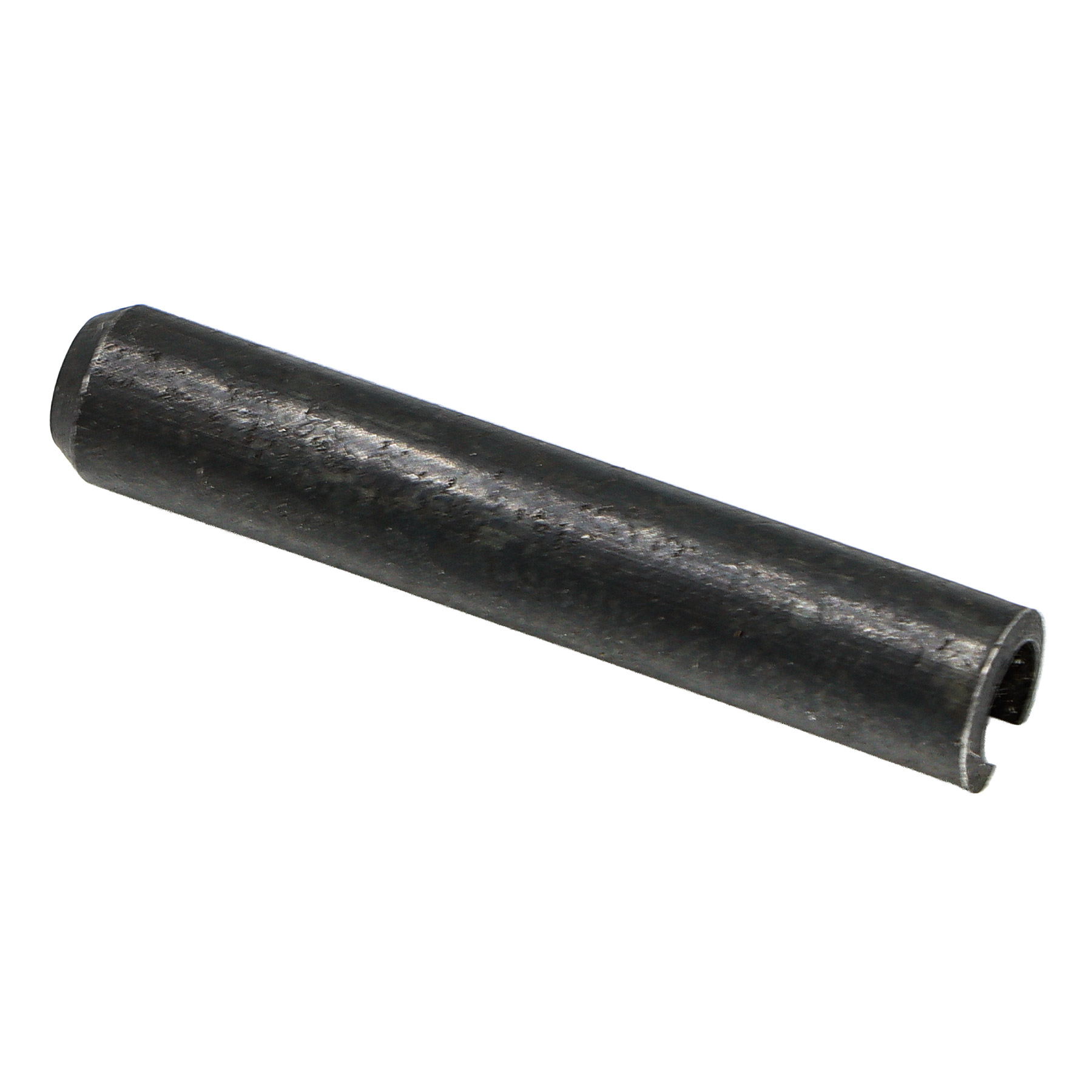

  • 2 PIN,SPRING (Roll) 5×28 05411-00528

    PIN,SPRING (Roll) 5×28 05411-00528

    • Part No. 05411-00528
    • 2 shown on diagram
    $0.9
  • 3 BEARING, BALL 30x55x13

    BEARING, BALL 30x55x13

    • Part No. 08101-06006
    • DIA30
    • 1 shown on diagram
    $23.99
  • 4 BEARING BALL v, Replaced by T4682-43731

    BEARING BALL v, Replaced by T4682-43731

    • Part No. 08101-06208
    • DIA40
    • 1 shown on diagram
    $.00
  • 5

    COUPLING

    • Part No. T2195-25241
    • 2 shown on diagram
    $41.99
  • 6

    ASSY CLUTCH, PTO

    • Part No. TC22-0051B
    • 1 shown on diagram
    $684.99
  • 7 RING SNAP

    RING SNAP

    • Part No. 04611-00920
    • DIA92
    • 1 shown on diagram
    $13.99
  • 8 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
  • 9

    BALL_BEARING

    • Part No. 08101-06807
    • DIA35
    • 1 shown on diagram
    $46.99
  • 10

    SNAP RING

    • Part No. 38430-2155-1
    • 1 shown on diagram
    $6.49
  • 11

    RING, PISTON

    • Part No. T2615-25661
    • 1 shown on diagram
    $6.99
  • 12

    RING, PISTON v

    • Part No. T2615-25671
    • 1 shown on diagram
    $7.49
  • 13

    SPACER

    • Part No. T2615-25681
    • 1 shown on diagram
    $5.99
  • 14

    PLATE, BRAKE

    • Part No. T2615-25711
    • 1 shown on diagram
    $44.99
  • 15

    PLATE, RETURN

    • Part No. T2615-25721
    • 1 shown on diagram
    $22.99
  • 16

    PLATE,PRESSURE

    • Part No. T2615-25742
    • 1 shown on diagram
    $93.99
  • 17

    DISK, CLUTCH

    • Part No. T2615-25771
    • 3 shown on diagram
    $37.99
  • 18

    PLATE,CLUTCH

    • Part No. T2615-25782
    • 3 shown on diagram
    $19.99
  • 19

    RUBBER

    • Part No. T2615-25791
    • 6 shown on diagram
    $1.29
  • 20

    SEALING

    • Part No. T5225-26112
    • * multiple options for #20
    • 2 shown on diagram
    $.00
  • 20

    RING, SEAL

    • Part No. T5225-26113
    • Compatibility Interchngable
    • * multiple options for #20
    • 2 shown on diagram
    $.00
  • 21

    PISTON

    • Part No. T5520-23651
    • 1 shown on diagram
    $77.99
  • 22

    BODY, PTO CLUTCH

    • Part No. TC22-0053B
    • 1 shown on diagram
    $229.99
  • 23

    HUB, SPLINE

    • Part No. TC22-0054B
    • 1 shown on diagram
    $99.99
  • 24

    SHAFT, PTO CLUTCH

    • Part No. TC22-0055B
    • 1 shown on diagram
    $174.99
  • 25

    SPRING v

    • Part No. TC22-0094A
    • 1 shown on diagram
    $11.99
  • 26

    SHAFT, DRIVE PTO

    • Part No. TC22-0083B
    • 1 shown on diagram
    $65.99
