PROPELLER SHAFT GROUP - TC2-G331004

Kioti TRACTOR | CK Series | CK3520SEB

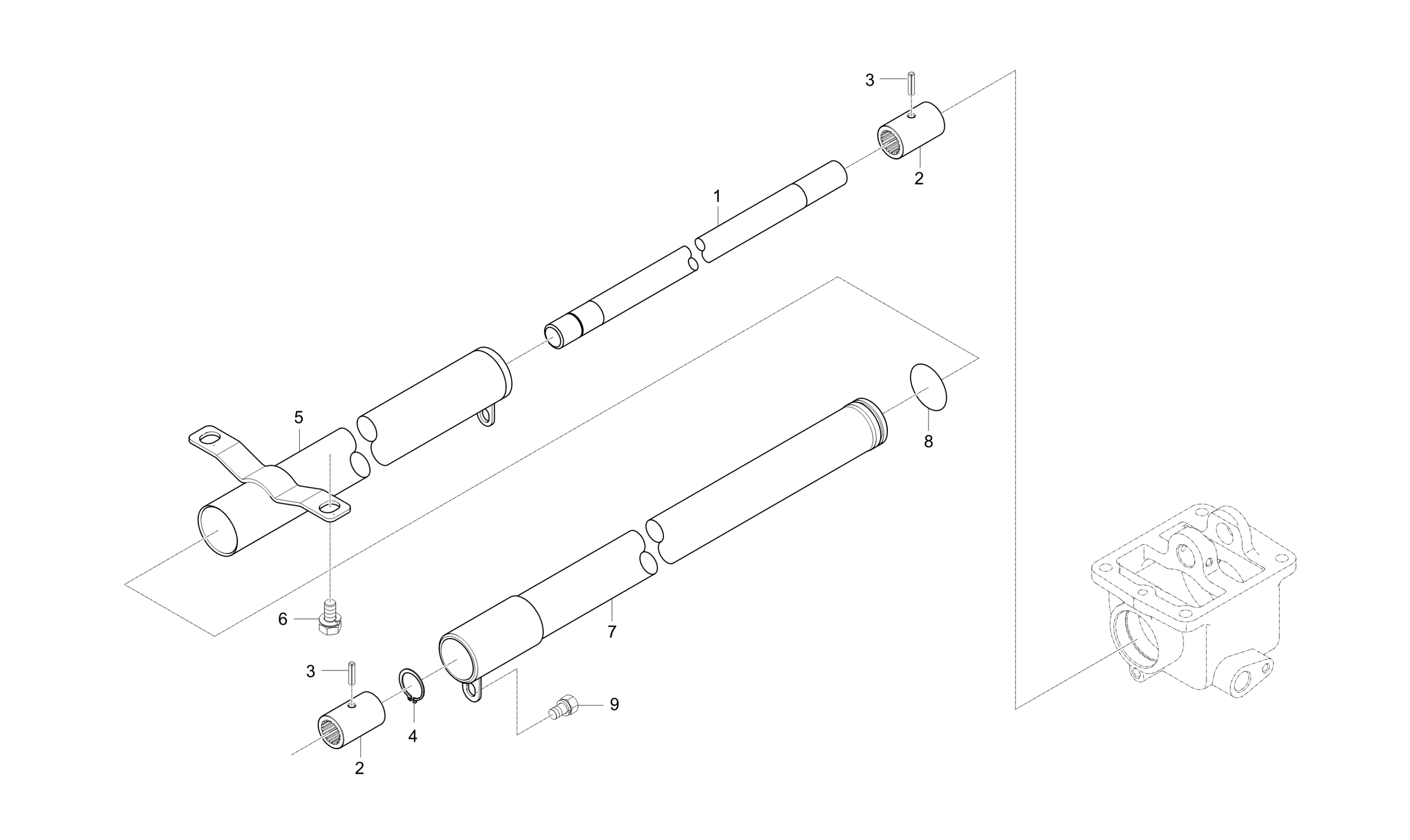

Diagram for PROPELLER SHAFT GROUP - TC2-G331004
  • 1

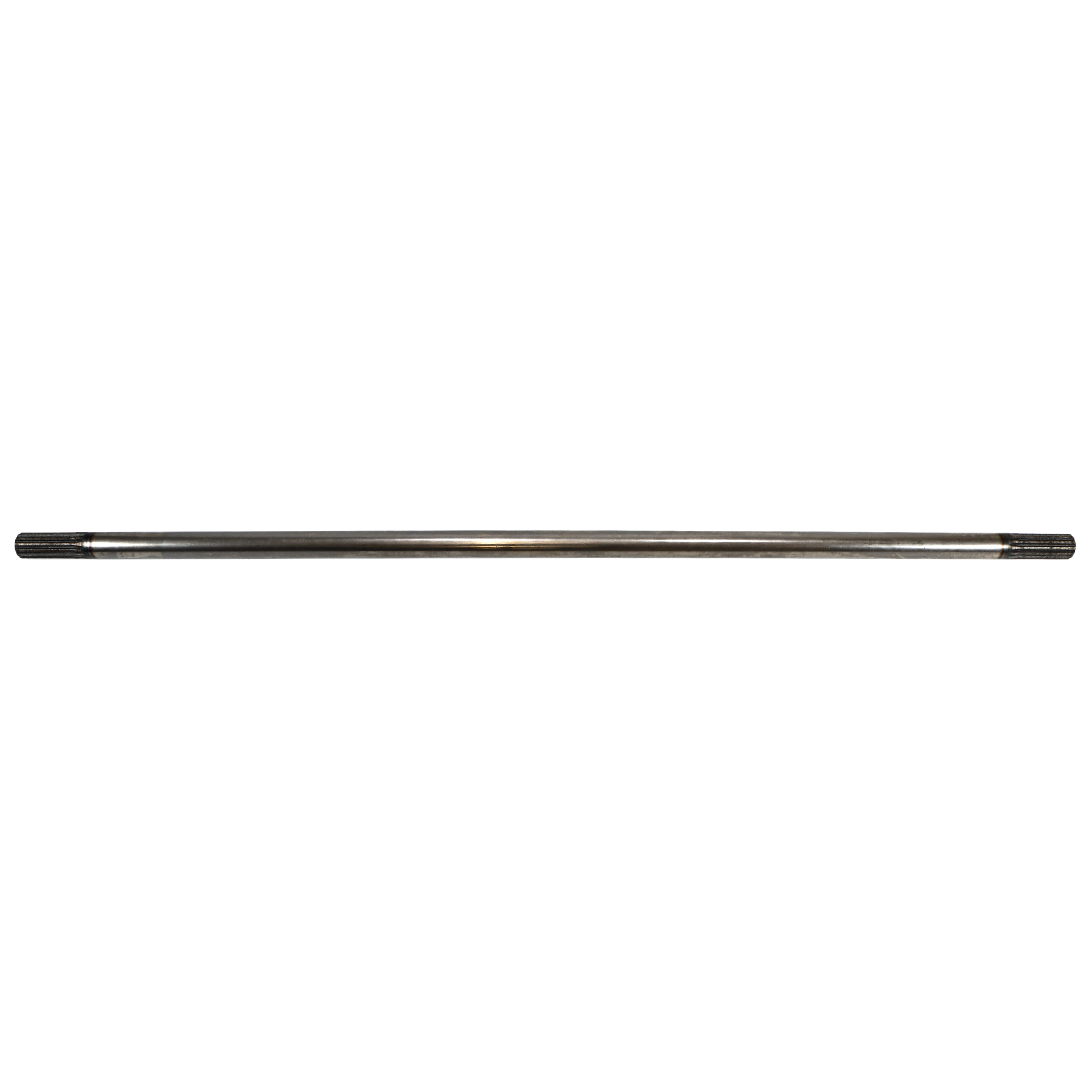

    SHAFT, PROPELLER v

    • Part No. T5815-44582
    • 1 shown on diagram
    $159.99
  • 2 Coupling, 42.7 mm OD

    Coupling, 42.7 mm OD

    • Part No. T4620-44592
    • OD42.7*T1.6
    • 2 shown on diagram
    $39.99
  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 4 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 5

    COVER, PROPELLER SHAFT-1 dnr v

    • Part No. T5815-44592
    • 1 shown on diagram
    $81.99
  • 6 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51220
    • M12*P1.25
    • 2 shown on diagram
    $2.99
  • 7

    COVER, PROPELLER SHAFT-2

    • Part No. TC22-0139A
    • 1 shown on diagram
    $99.99
  • 8

    O-Ring

    • Part No. 04811-06350
    • DIA35.2
    • 1 shown on diagram
    $1.09
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
