SHUTTLE SHIFT FORK GROUP - TC2-G252002

Kioti TRACTOR | CK Series | CK3520SEB

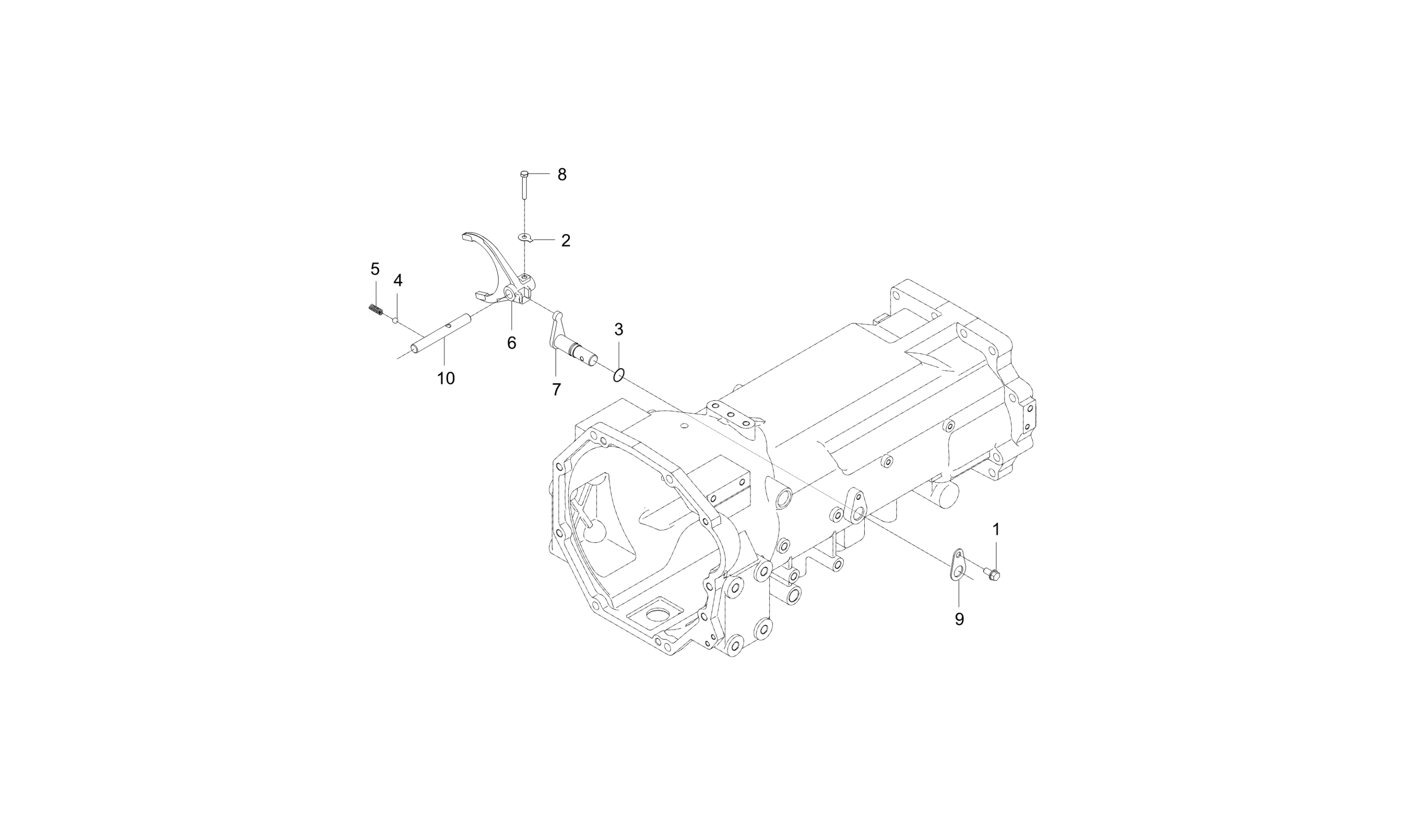

Diagram for SHUTTLE SHIFT FORK GROUP - TC2-G252002
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79

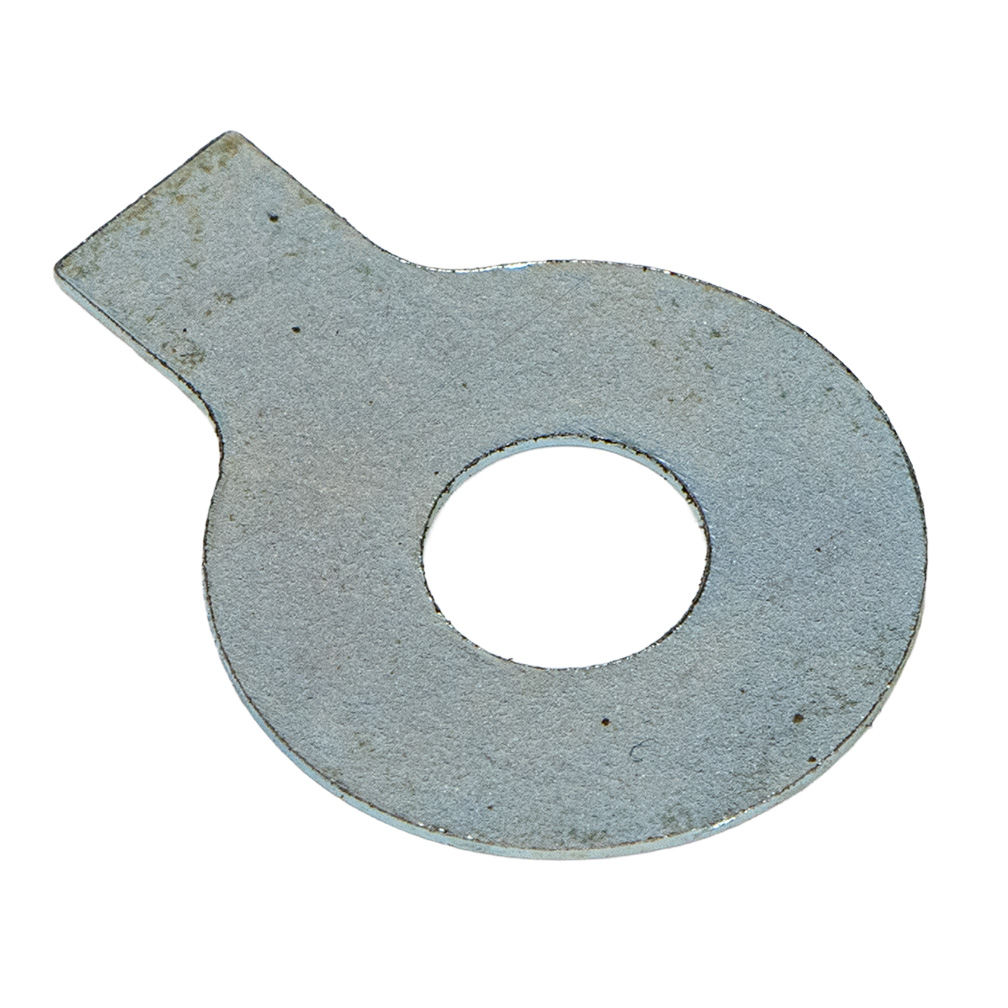

  • 2 WASHER v

    WASHER v

    • Part No. 04111-50060
    • M06
    • 1 shown on diagram
    $1.79
  • 3
    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
  • 4 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 5
    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
  • 6

    FORK, SHIFT(SHUTTLE)

    • Part No. T2185-22151
    • 1 shown on diagram
    $124.99
  • 7

    ARM, SHUTTLE SHIFT obs

    • Part No. T2185-22171
    • 1 shown on diagram
    $44.99
  • 8
    • Part No. T2610-22171
    • 1 shown on diagram
  • 9

    STOPPER

    • Part No. T4620-44331
    • T2.0
    • 1 shown on diagram
    $9.99
  • 10
    • Part No. TC22-0062A
    • 1 shown on diagram
