STEP SEAT FRAME GROUP - TC2-G633001

Kioti TRACTOR | CK Series | CK3520

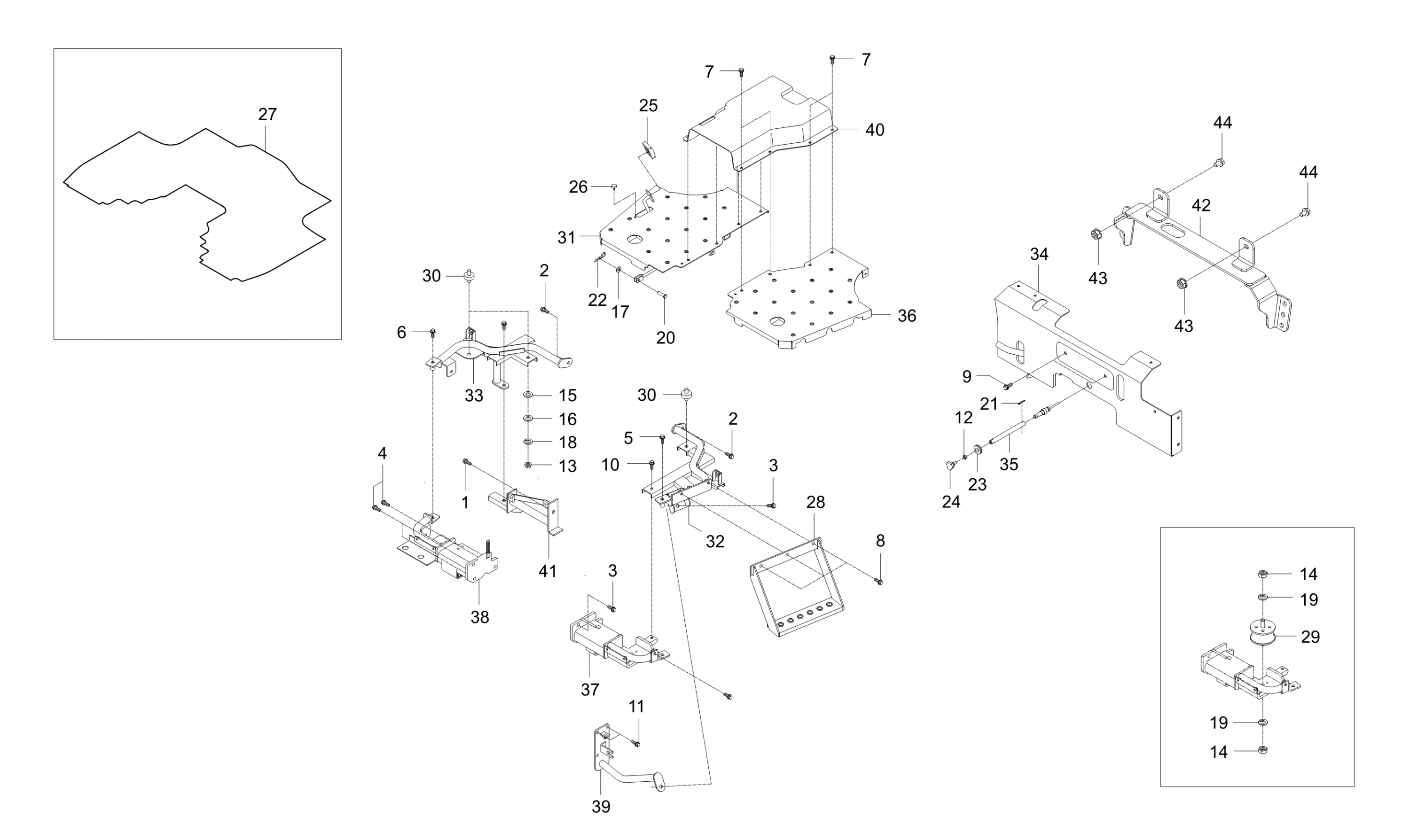

Diagram for STEP SEAT FRAME GROUP - TC2-G633001
  • 1

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 2

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 4 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 5

    BOLT

    • Part No. 01133-51045
    • 1 shown on diagram
    $3.99
  • 6

    BOLT

    • Part No. 01133-51045
    • 1 shown on diagram
    $3.99
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 8 shown on diagram
    $1.79
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.79
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 10

    BOLT, FLANGE

    • Part No. 01754-50822
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 11

    BOLT, FLANGE

    • Part No. 01754-50822
    • M8XP1.25
    • 2 shown on diagram
    $1.89
  • 12 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 13 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 4 shown on diagram
    $.98
  • 14 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 15

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 4 shown on diagram
    $.67
  • 16

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 4 shown on diagram
    $.67
  • 17 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 1 shown on diagram
    $0.67
  • 18 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 19 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 4 shown on diagram
    $0.95
  • 20

    Pin, Joint M6x18mm

    • Part No. 05122-50618
    • 1 shown on diagram
    $2.99
  • 21 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
    $.46
  • 22

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 23

    GROMMET

    • Part No. 31355-2949-1
    • 1 shown on diagram
    $4.99
  • 24

    KNOB

    • Part No. 82KC-0807
    • 1 shown on diagram
    $4.49
  • 25

    RUBBER, PEDAL

    • Part No. T2350-26661
    • 1 shown on diagram
    $7.99
  • 26

    RUBBER, CUSHION

    • Part No. T2555-55851
    • 1 shown on diagram
    $3.99
  • 27

    MAT

    • Part No. T4125-70261
    • T0.4-0.5
    • 1 shown on diagram
    $17.99
  • 28

    Step, Replaced by T4620-70222OE

    • Part No. T4620-70222
    • 1 shown on diagram
    $.00
  • 29

    DUSTPROOF RUBBER

    • Part No. T5410-70211
    • 2 shown on diagram
    $66.99
  • 30 DUSTPROOF RUBBER

    DUSTPROOF RUBBER

    • Part No. T5520-80391
    • 4 shown on diagram
    $32.99
  • 31

    STEP,RH(MEC)

    • Part No. T5815-62317
    • 1 shown on diagram
    $294.99
  • 32

    STEP, SUPPORT BRACKET-RR LH dnr v

    • Part No. T5850-62333
    • 1 shown on diagram
    $134.99
  • 33

    BRAKET dnr v

    • Part No. T5850-62343
    • 1 shown on diagram
    $134.99
  • 34

    SEAT FLOOR

    • Part No. T5855-62015
    • 1 shown on diagram
    $234.99
  • 35

    ROD

    • Part No. T5855-62051
    • DIA12
    • 1 shown on diagram
    $28.99
  • 36

    ASSY STEP dnr v.

    • Part No. T5855-62327
    • 1 shown on diagram
    $289.99
  • 37

    BRACKET

    • Part No. T5855-62336
    • 1 shown on diagram
    $239.99
  • 38

    BRACKET

    • Part No. T5855-62348
    • 1 shown on diagram
    $234.99
  • 39

    PLATE, STEP dnr v

    • Part No. T5855-62353
    • 1 shown on diagram
    $69.99
  • 40

    STEP,CENTER

    • Part No. T5855-62363
    • T2.3
    • 1 shown on diagram
    $149.99
  • 41

    SUPPORT STEP RH,UNDER

    • Part No. T5855-62402
    • 1 shown on diagram
    $68.99
  • 42

    BRACKET, NUMBER

    • Part No. TC26-0007B
    • 1 shown on diagram
    $124.99
  • 43 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $.85
  • 44

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
