ACCELERATOR LEVER GROUP - TC2-G648101

Kioti TRACTOR | CK Series | CK3520

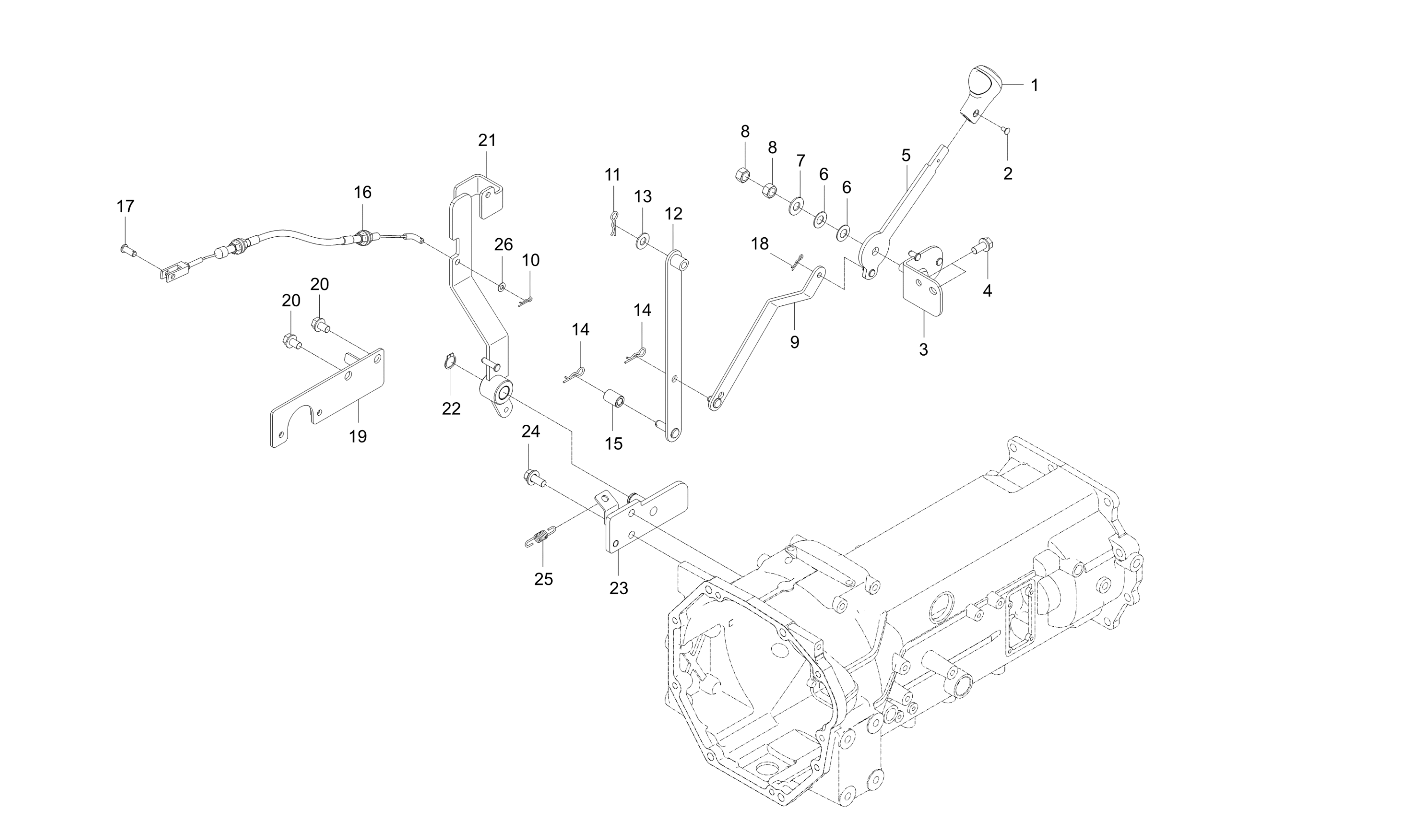

Diagram for ACCELERATOR LEVER GROUP - TC2-G648101
  • 1
    • Part No. T5750-81091
    • -
    • 1 shown on diagram
  • 2 FLAT HEAD SCREW M4 P0.7

    FLAT HEAD SCREW M4 P0.7

    • Part No. 03056-50408
    • M4XP0.7
    • 1 shown on diagram
    $0.46
  • 3

    BRACKET, ACLTR dnr v

    • Part No. T5710-81012
    • 1 shown on diagram
    $19.99
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 5

    LEVER,ACCEL dnr v

    • Part No. T5850-55812
    • 1 shown on diagram
    $24.99
  • 6 SPRING WASHER

    SPRING WASHER

    • Part No. T4668-83301
    • 2 shown on diagram
    $1.69
  • 7 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 8 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 9

    ROD,ACCEL

    • Part No. T5855-55863
    • 1 shown on diagram
    $19.99
  • 10

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 11

    SNAP PIN

    • Part No. 52300-3412-1
    • DIA1.6
    • 1 shown on diagram
    $1.19
  • 12

    ROD 2

    • Part No. T5815-55853
    • 1 shown on diagram
    $16.99
  • 13 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $.67
  • 14

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 15

    SPACER v

    • Part No. T2360-34142
    • DIA14
    • 1 shown on diagram
    $6.49
  • 16

    CABLE, ACLTR-TIER4

    • Part No. T5815-55833
    • 1 shown on diagram
    $59.99
  • 17

    Pin, Joint M6x16mm

    • Part No. 05122-50616
    • DIA6XL16
    • 1 shown on diagram
    $2.49
  • 18

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 2 shown on diagram
    $1.19
  • 19

    BRACKET

    • Part No. T5815-55842
    • 1 shown on diagram
    $17.99
  • 20 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 21

    ARM

    • Part No. T5815-55826
    • 1 shown on diagram
    $76.99
  • 22

    CIR CLIP, EXTERNAL

    • Part No. 04612-00150
    • DIA15
    • 1 shown on diagram
    $0.73
  • 23

    BRACKET

    • Part No. T5815-55814
    • 1 shown on diagram
    $45.99
  • 24

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 25

    SPRING, RETURN

    • Part No. T4157-51211
    • 1 shown on diagram
    $4.99
  • 26
    • Part No. T4930-66751
    • 1 shown on diagram
