JOYSTICK LEVER GROUP - TC2-G642005

Kioti TRACTOR | CK Series | CK3520

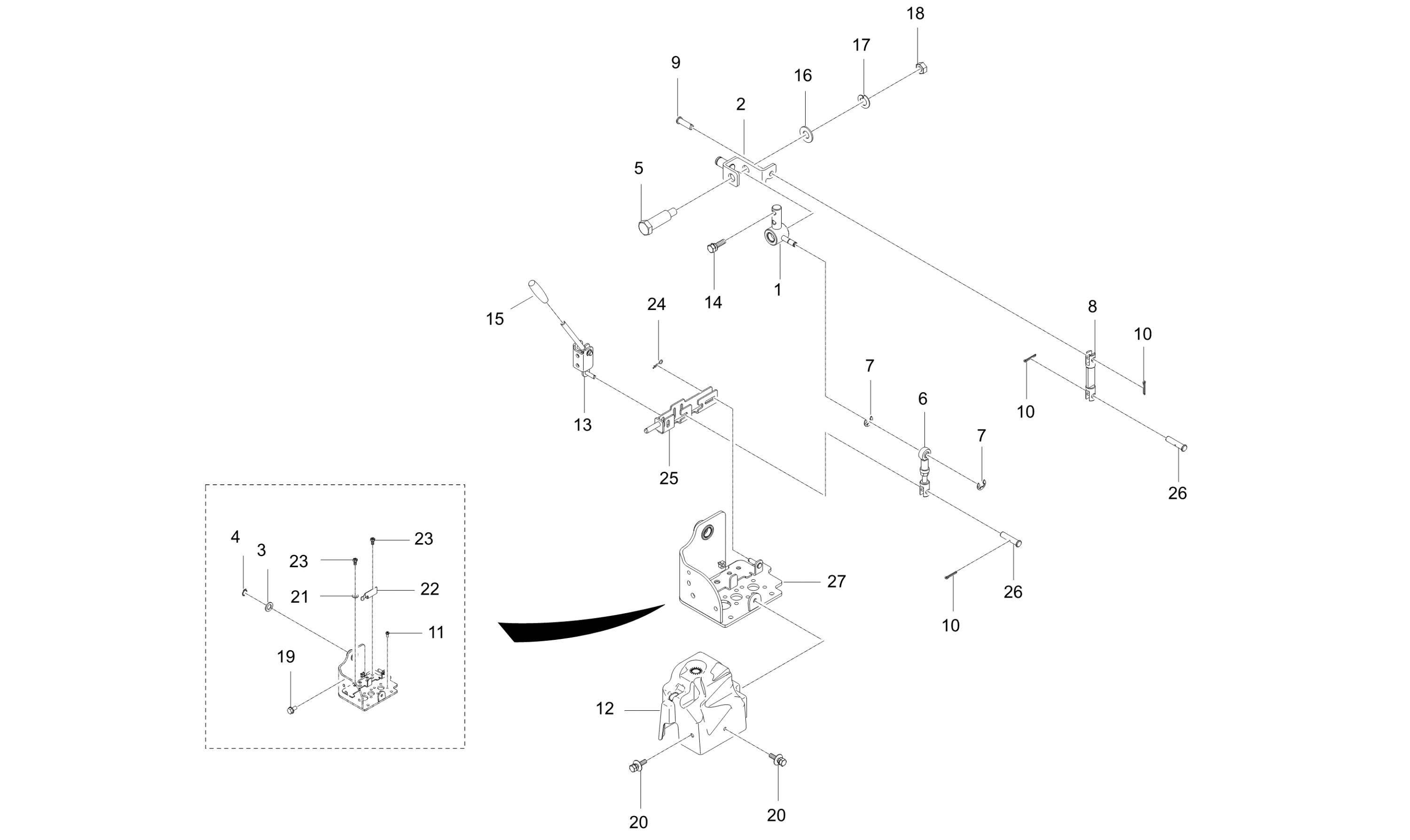

Diagram for JOYSTICK LEVER GROUP - TC2-G642005
  • 1

    LEVER 1, JOYSTICK

    • Part No. T5855-57813
    • 1 shown on diagram
    $74.99

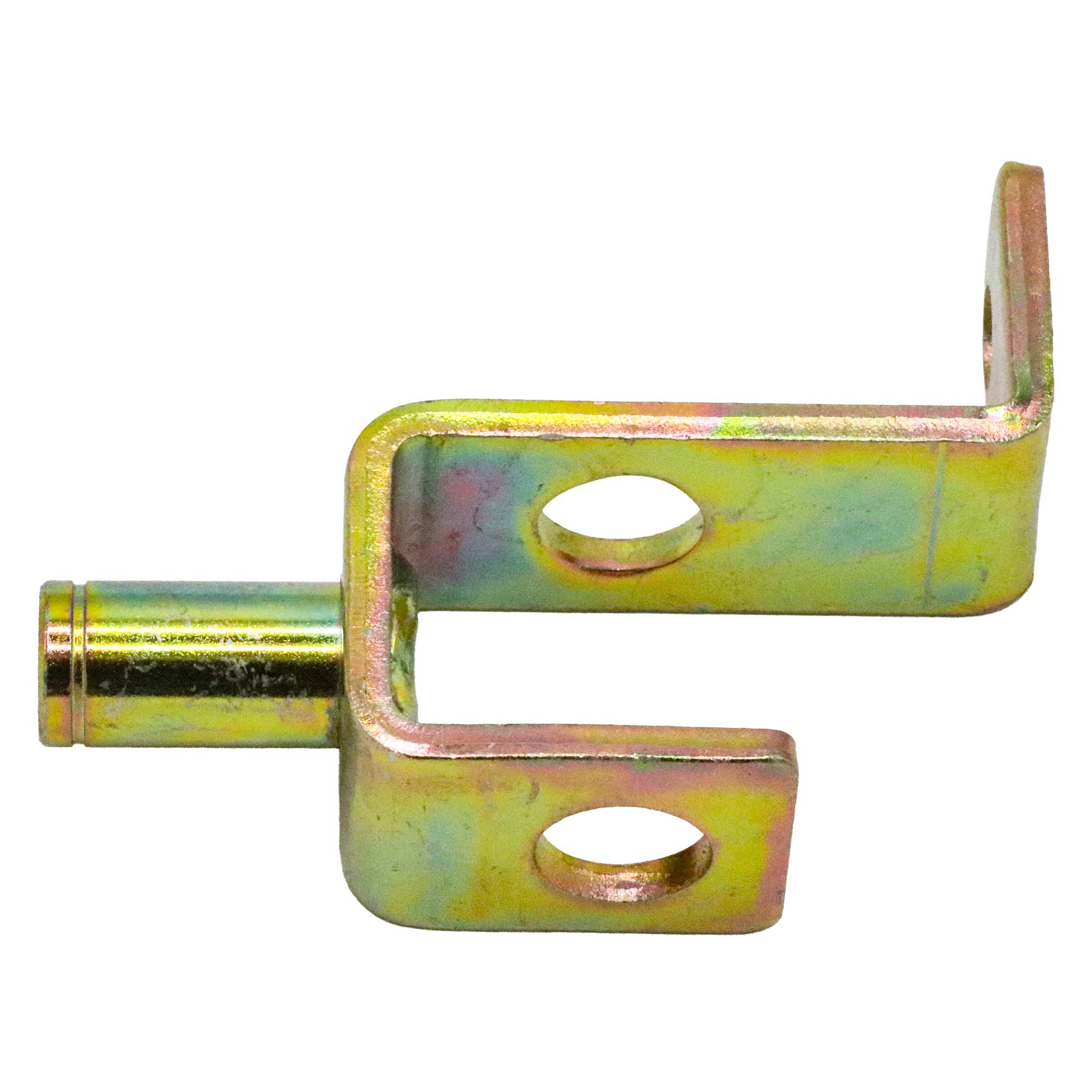

  • 2 LEVER 2, JOYSTICK

    LEVER 2, JOYSTICK

    • Part No. T5855-57822
    • 1 shown on diagram
    $36.99
  • 3 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 1 shown on diagram
    $1.19
  • 4

    CIR CLIP, EXTERNAL

    • Part No. 04612-00150
    • DIA15
    • 1 shown on diagram
    $0.73
  • 5
    • Part No. T5855-57832
    • M10XP1.25
    • 1 shown on diagram
  • 6

    ROD

    • Part No. T5855-57842
    • 1 shown on diagram
    $119.99
  • 7 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • DIA06
    • 2 shown on diagram
    $0.67
  • 8
    • Part No. T5855-57853
    • 1 shown on diagram
  • 9

    DOWEL PIN

    • Part No. T5855-57901
    • OD9XL20
    • 1 shown on diagram
    $9.99
  • 10

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 3 shown on diagram
    $0.56
  • 11
    • Part No. 03024-50512
    • M5XP0.8
    • 8 shown on diagram
  • 12

    BOOT, JOYSTICK

    • Part No. T5855-57882
    • 1 shown on diagram
    $83.99
  • 13

    LEVER3,JOYSTICK

    • Part No. T5855-57866
    • 1 shown on diagram
    $46.99
  • 14 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • 2 shown on diagram
    $2.49
  • 15

    GRIP, DARK BLUE

    • Part No. T2185-71241
    • 1 shown on diagram
    $4.49
  • 16 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 17 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 18 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 19 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 20
    • Part No. 01027-50614
    • 4 shown on diagram
  • 21 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 1 shown on diagram
    $0.67

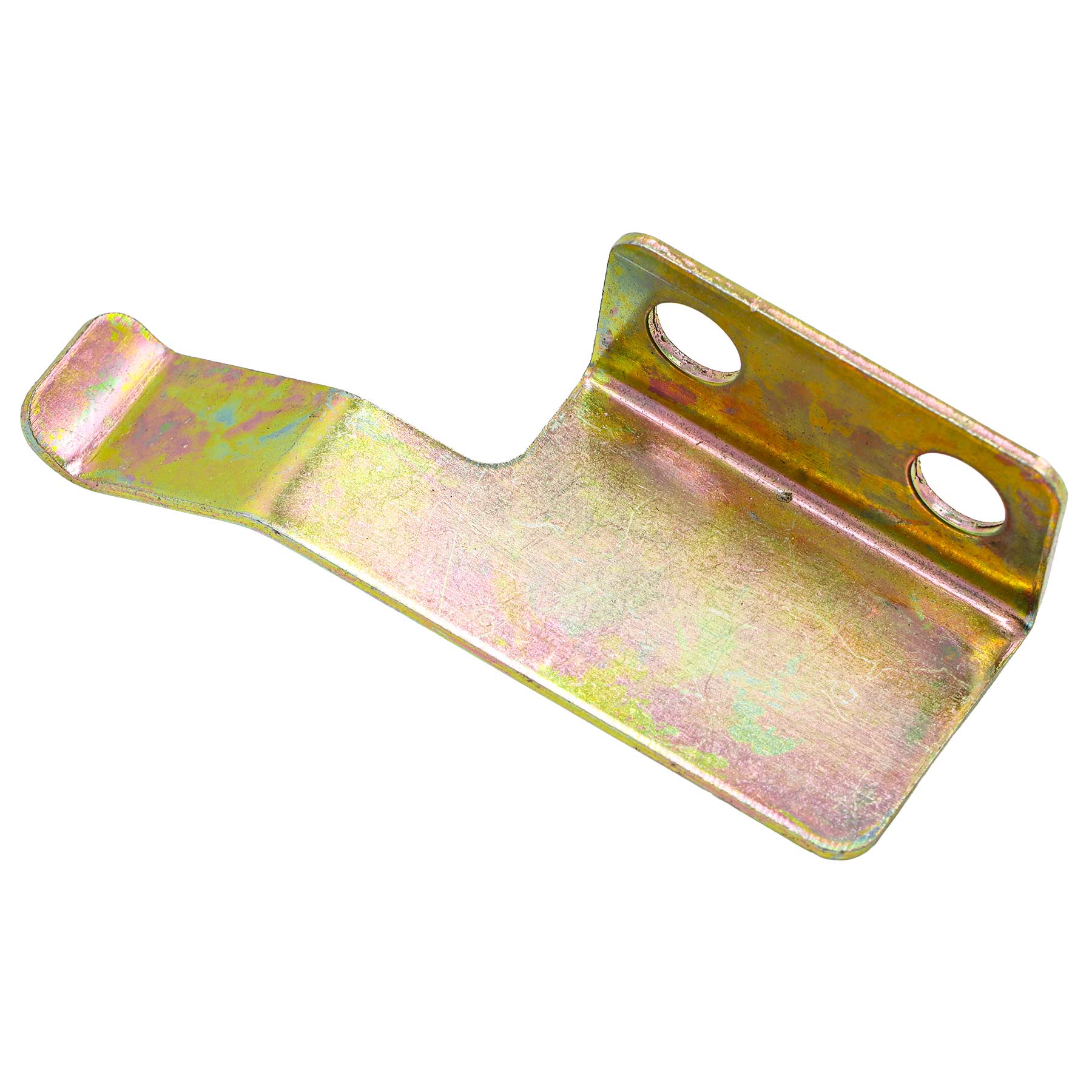

  • 22 PLATE SPRING, MOWER DECK

    PLATE SPRING, MOWER DECK

    • Part No. T2555-60741
    • 1 shown on diagram
    $7.49
  • 23

    BOLT

    • Part No. 01202-50620
    • M6XP1.0
    • 3 shown on diagram
    $1.09
  • 24

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 25
    • Part No. TC26-0086A
    • 1 shown on diagram
  • 26
    • Part No. TC26-0095A
    • OD9XL40
    • 2 shown on diagram
  • 27

    BASE, SUPPORT dnr v

    • Part No. TC26-0305A
    • 1 shown on diagram
    $199.99
