PARKING BRAKE LEVER GROUP - TC2-G645001

Kioti TRACTOR | CK Series | CK3520

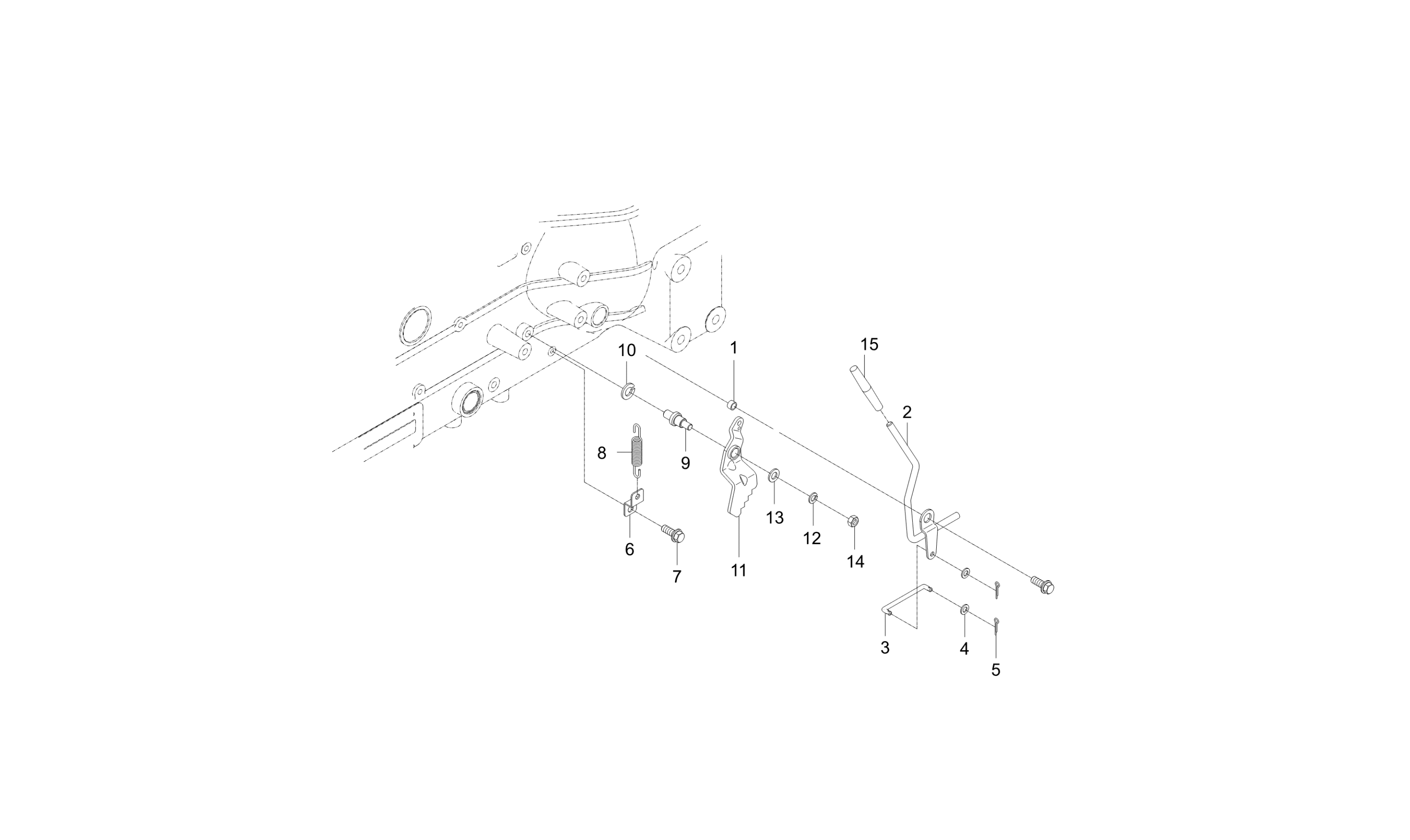

Diagram for PARKING BRAKE LEVER GROUP - TC2-G645001
  • 1

    SPACER

    • Part No. T4620-80681
    • 1 shown on diagram
    $5.99
  • 2

    LEVER, PARKING

    • Part No. T5855-55425
    • 1 shown on diagram
    $19.99
  • 3

    ROD

    • Part No. T5855-55431
    • T4.5
    • 1 shown on diagram
    $8.99
  • 4

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 2 shown on diagram
    $.67
  • 5

    PIN,SPLIT

    • Part No. 05511-50212
    • DIA2*12
    • 2 shown on diagram
    $0.5
  • 6

    BRACKET

    • Part No. T5250-68771
    • t1.6
    • 1 shown on diagram
    $9.49
  • 7 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 1 shown on diagram
    $1.89
  • 8 SPRING

    SPRING

    • Part No. T2440-28851
    • 1 shown on diagram
    $4.49
  • 9

    BOLT, BRAKE LOCK

    • Part No. T2440-28822
    • HEX17
    • 1 shown on diagram
    $6.99
  • 10 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 11

    LOCK,BRAKE PEDAL

    • Part No. T2440-28812
    • 1 shown on diagram
    $14.99
  • 12 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $.61
  • 13 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 1 shown on diagram
    $.79
  • 14
    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
  • 15

    GRIP

    • Part No. T2350-55922
    • 1 shown on diagram
    $5.49
