BRAKE PEDAL GROUP - TC2-G646502

Kioti TRACTOR | CK Series | CK3520

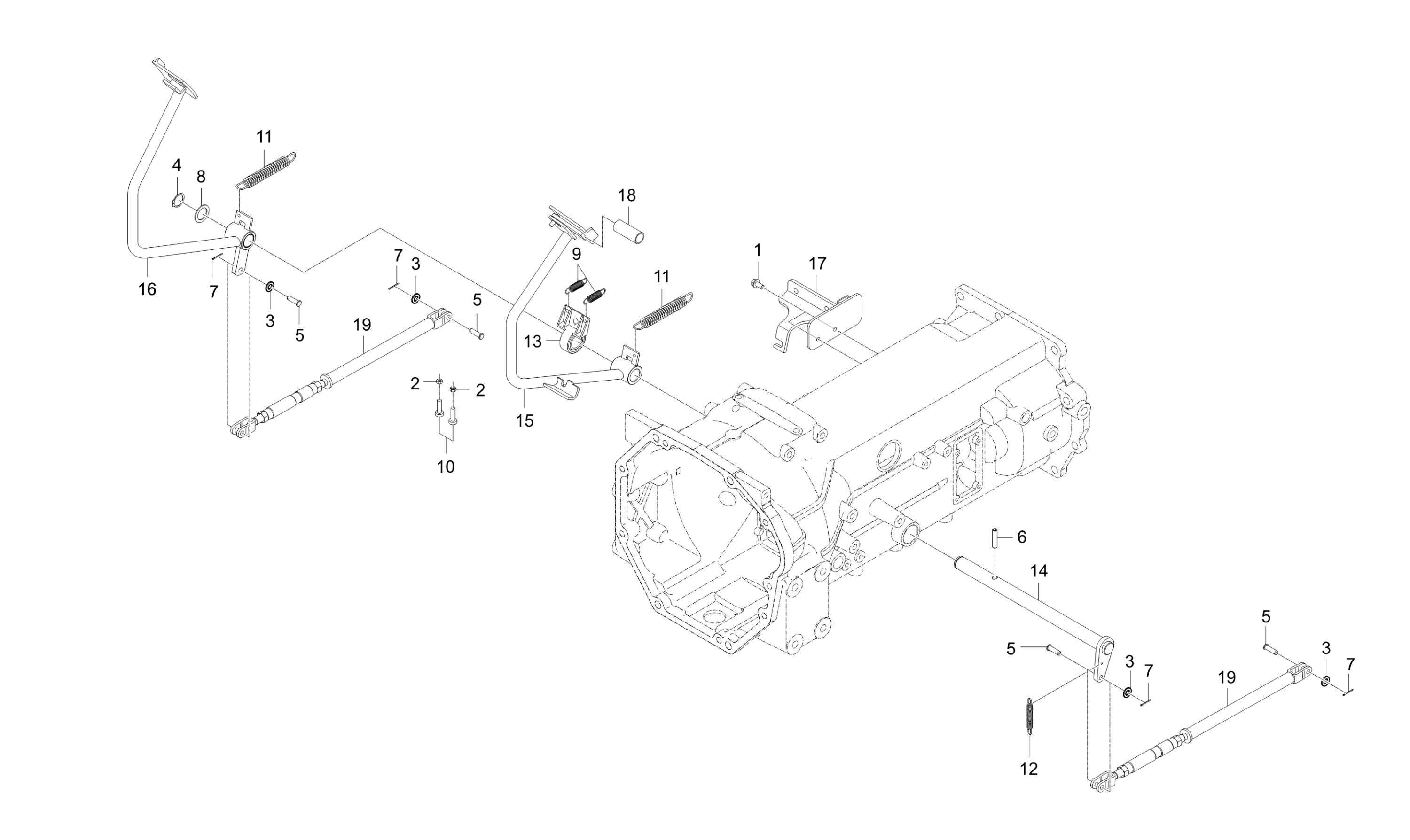

Diagram for BRAKE PEDAL GROUP - TC2-G646502
  • 1 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 2
    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
  • 3 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $.79
  • 4 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 5 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 7

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 4 shown on diagram
    $0.56
  • 8

    COLLAR, BRAKE

    • Part No. 32150-2846-1BB
    • 1 shown on diagram
    $2.99
  • 9 SPRING, DIFF.LOCK PEDAL

    SPRING, DIFF.LOCK PEDAL

    • Part No. T2305-26641
    • DIA1.2
    • 2 shown on diagram
    $5.99
  • 10

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
  • 11 SPRING, BRAKE

    SPRING, BRAKE

    • Part No. T4520-26161
    • DIA2.5
    • 2 shown on diagram
    $9.99
  • 12 SPRING

    SPRING

    • Part No. T4520-27831
    • DIA2.0
    • 1 shown on diagram
    $6.49
  • 13
    • Part No. T5210-55742
    • 1 shown on diagram
  • 14

    SHAFT

    • Part No. T5815-55213BB
    • 1 shown on diagram
    $.00
  • 15

    PEDAL ,BRAKE LH

    • Part No. T5815-55222BB
    • 1 shown on diagram
    $.00
  • 16

    PEDAL, BRAKE RH

    • Part No. T5815-55232BB
    • 1 shown on diagram
    $.00
  • 17

    BRACKET,SPRING

    • Part No. T5815-55243BB
    • 1 shown on diagram
    $.00
  • 18

    TUBE, PROTECTION

    • Part No. TG16-0800A
    • O.D18 x 1.5t
    • 1 shown on diagram
    $1.09
  • 19
    • Part No. T5855-55271
    • -
    • 2 shown on diagram
