CABIN FRAME GROUP - TC2-G6C0512

Kioti TRACTOR | CK Series | CK3520CHSEB

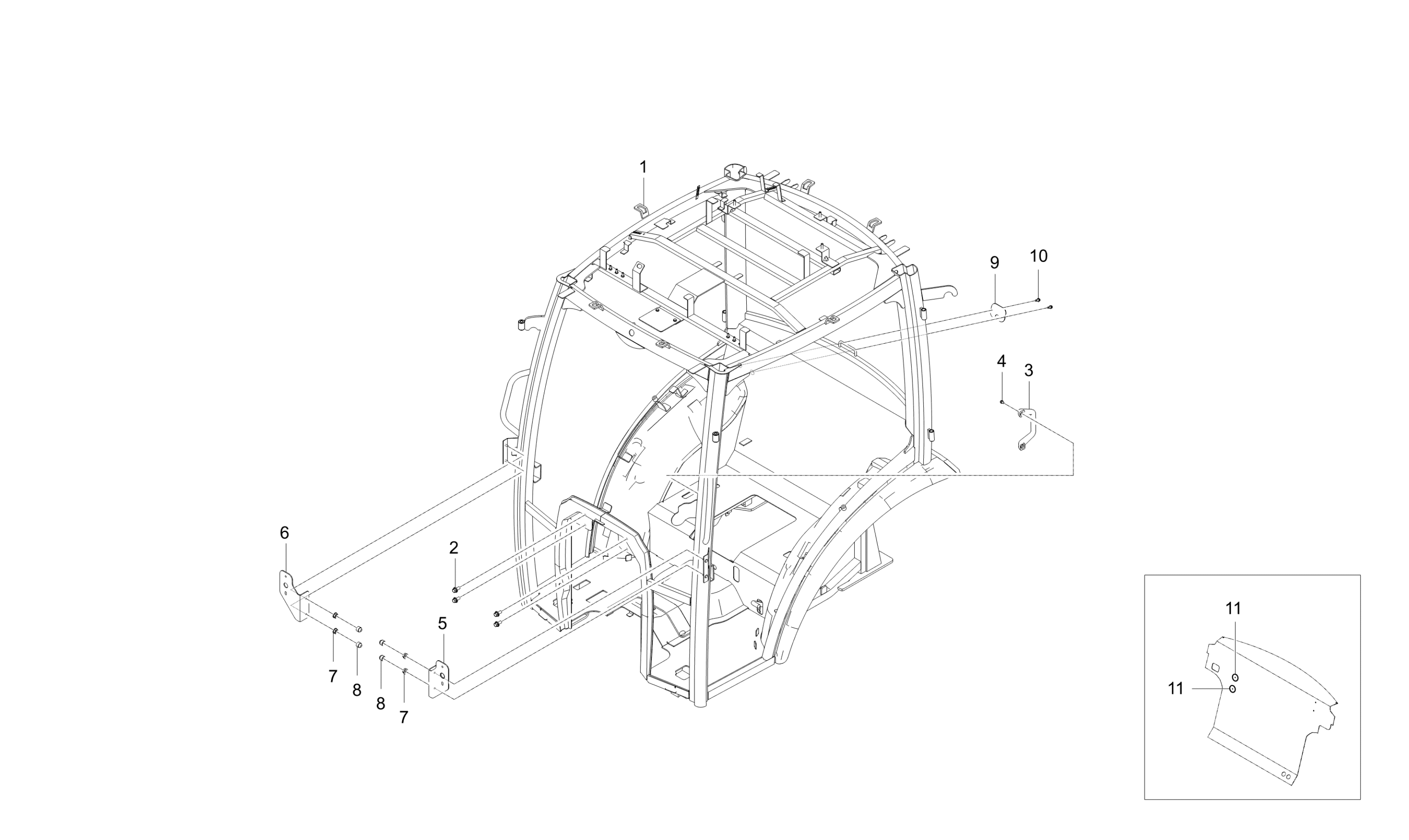

Diagram for CABIN FRAME GROUP - TC2-G6C0512
  • 1

    TRK ASSY FRAME, CABIN-HST v

    • Part No. TC26-0539G
    • * multiple options for #1
    • 1 shown on diagram
    $3589.99
  • 1

    ASSY FRAME, CABIN-HST

    • Part No. TC26-0539H
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $.00
  • 2

    BOLT WITH WASHER v

    • Part No. 01135-51025
    • M8*1.25
    • 4 shown on diagram
    $3.49
  • 3

    GRIP

    • Part No. T5210-82811
    • 1 shown on diagram
    $14.99
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 5

    BRACKET, TURN SIGNAL-FR LH

    • Part No. TC26-1453A
    • T3.2
    • 1 shown on diagram
    $17.99
  • 6

    BRACKET, TURN SIGNAL-FR RH

    • Part No. TC26-1454A
    • T3.2
    • 1 shown on diagram
    $17.99
  • 7 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.67
  • 8 NUT CAP M6

    NUT CAP M6

    • Part No. T4680-93211
    • 4 shown on diagram
    $1.29
  • 9

    PLATE, COVER – FENDER

    • Part No. TC26-1559A
    • T2.3
    • 1 shown on diagram
    $7.49

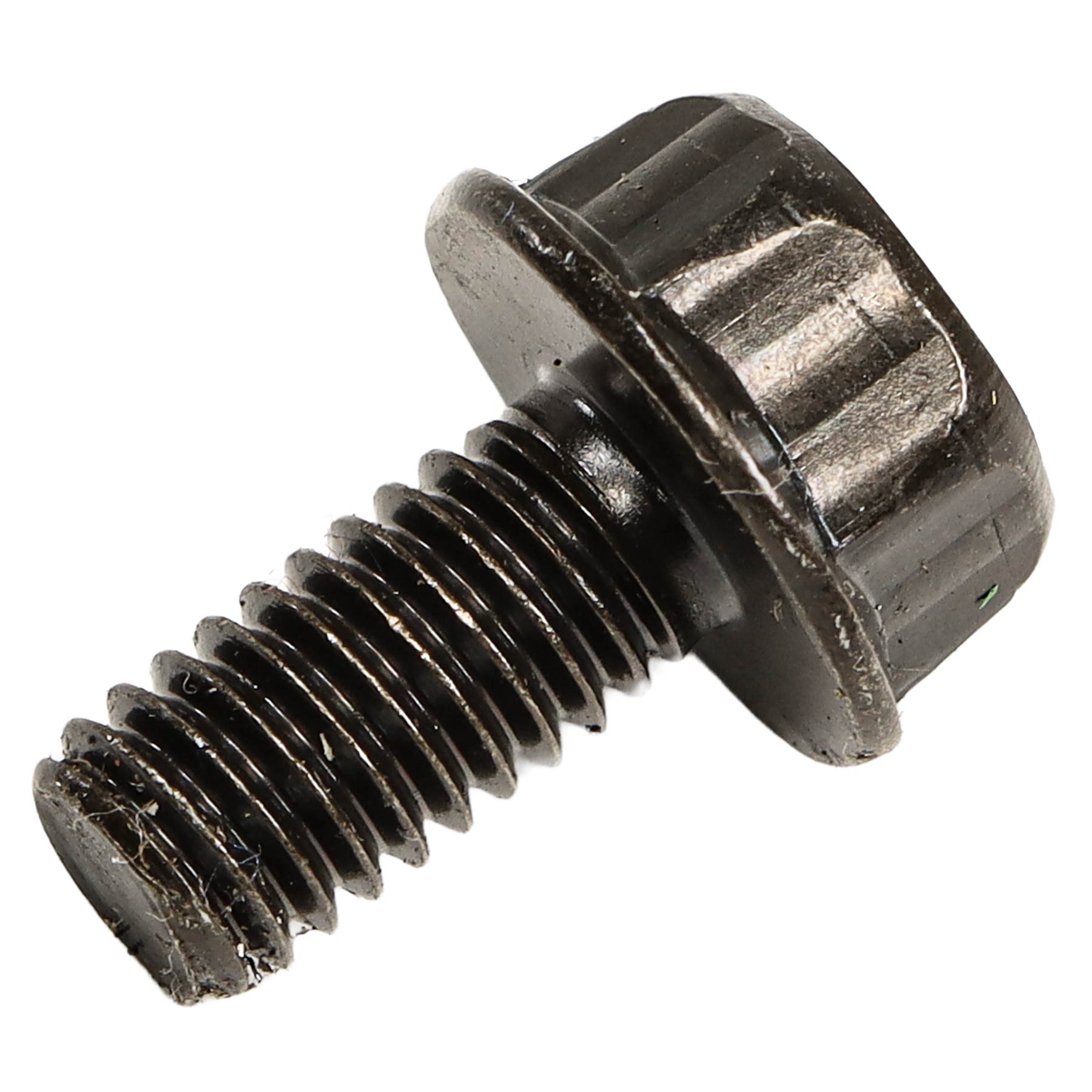

  • 10 FLANGE BOLT

    FLANGE BOLT

    • Part No. 01754-50612B
    • M6
    • 2 shown on diagram
    $0.85
  • 11

    COVER LABEL-BLACK

    • Part No. T4686-87611
    • 1 shown on diagram
    $1.49
