WIPER(REAR) GROUP - TC2-G6C7001

Kioti TRACTOR | CK Series | CK3520CHSEB

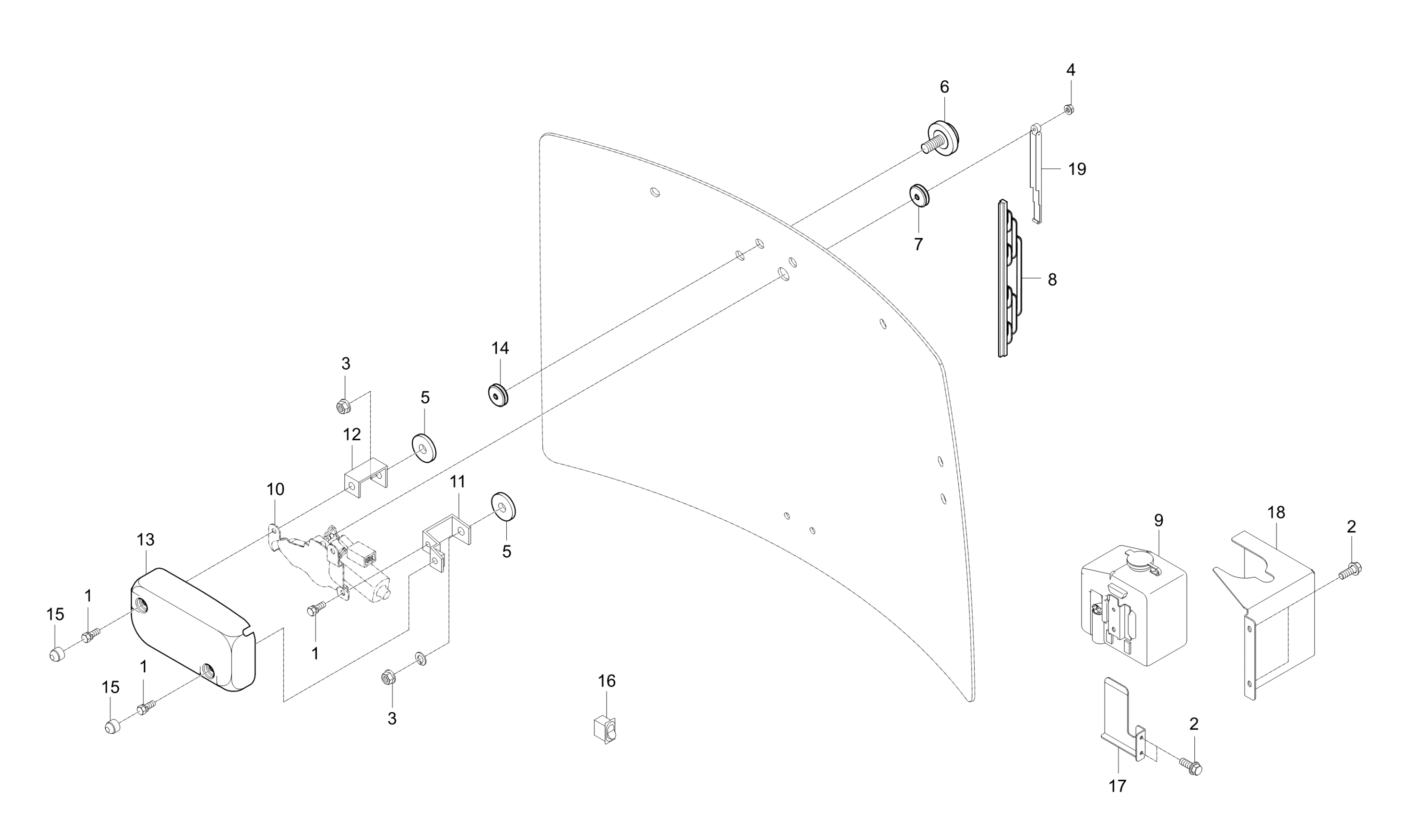

Diagram for WIPER(REAR) GROUP - TC2-G6C7001
  • 1 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 3 shown on diagram
    $2.49
  • 2 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 4 shown on diagram
    $1.89
  • 3 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.67
  • 4 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.67

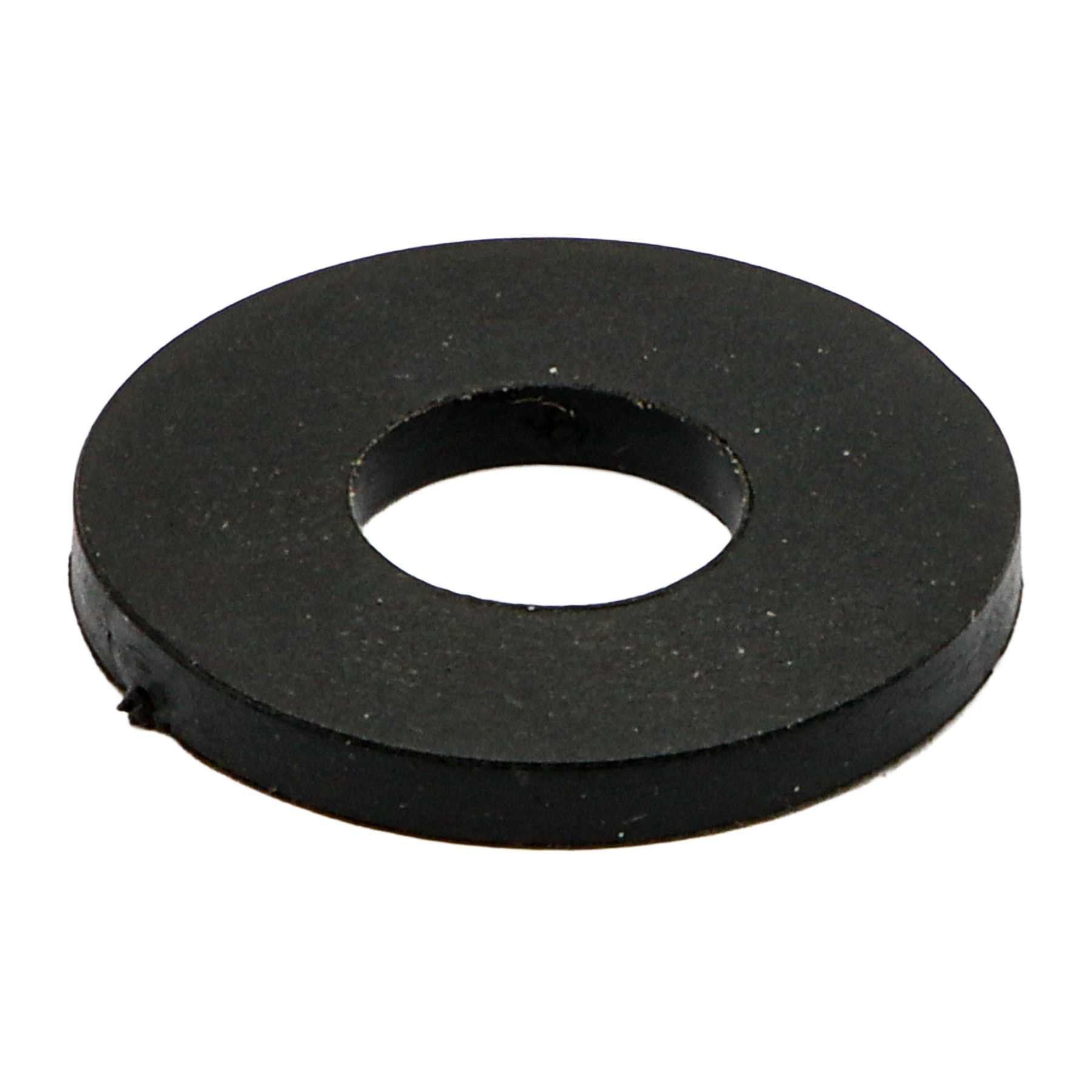

  • 5 PACKING

    PACKING

    • Part No. T4520-88401
    • 2 shown on diagram
    $3.49
  • 6 BOLT,CUSHION (interchanges w/ T4620-81841)

    BOLT,CUSHION (interchanges w/ T4620-81841)

    • Part No. T4620-81842
    • 2 shown on diagram
    $6.99
  • 7

    GROMMET v

    • Part No. T4815-78112
    • 1 shown on diagram
    $3.99
  • 8 BLADE, WIPER FRONT D (16″)

    BLADE, WIPER FRONT D (16″)

    • Part No. T4815-82431
    • 1 shown on diagram
    $34.99

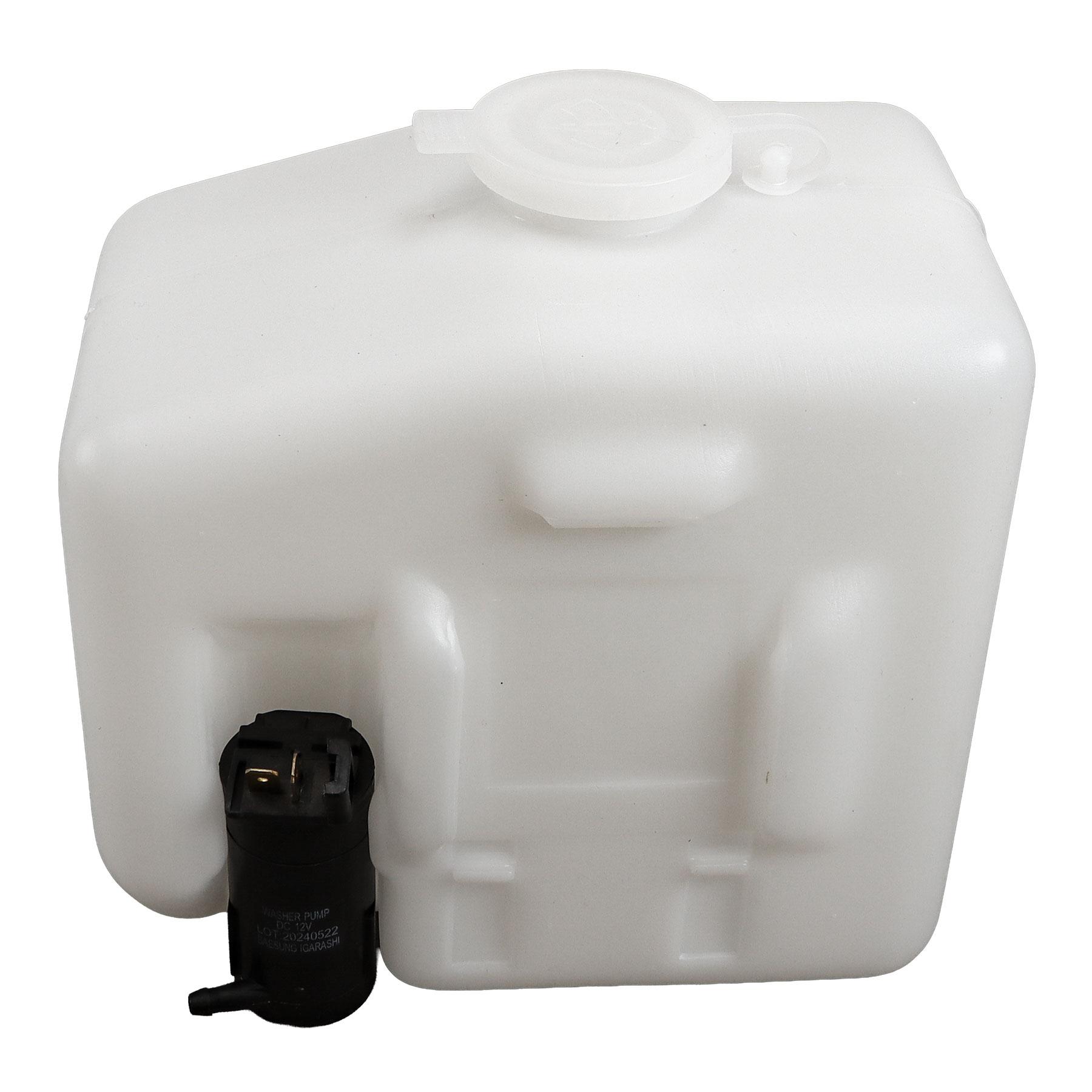

  • 9 RESERVOIR, DUAL PUMP

    RESERVOIR, DUAL PUMP

    • Part No. T4815-87181
    • 1 shown on diagram
    $134.99
  • 10

    ASSY MOTOR, WIPER dnr v

    • Part No. TG15-0243B
    • * multiple options for #10
    • 1 shown on diagram
    $289.99
  • 10

    ASSY MOTOR, WIPER v

    • Part No. TG15-0243C
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $269.99

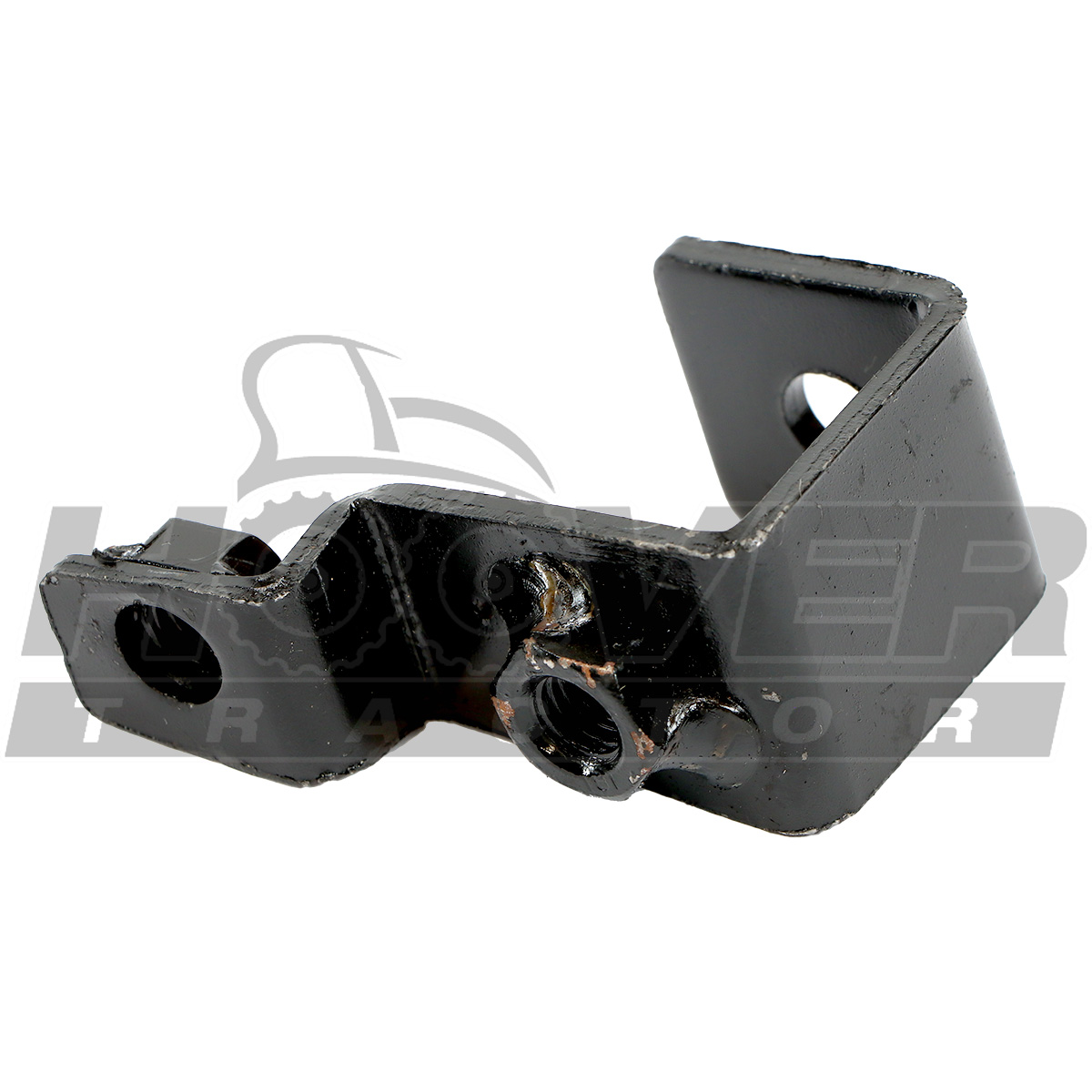

  • 11 BRACKET A, MOTOR RR V

    BRACKET A, MOTOR RR V

    • Part No. T4815-89141BB
    • 1 shown on diagram
    $16.99

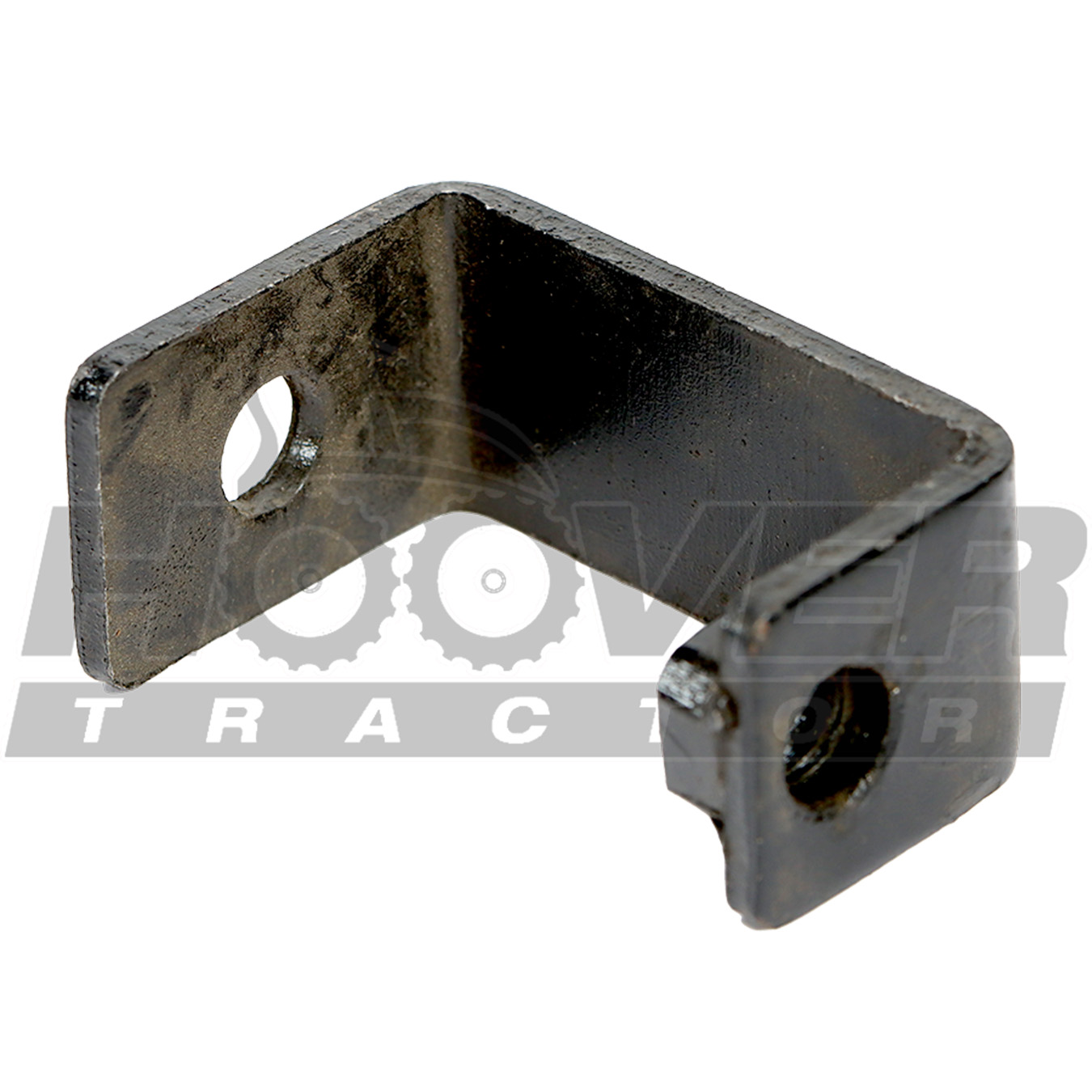

  • 12 BRACKET B, MOTOR RR

    BRACKET B, MOTOR RR

    • Part No. T4815-89151BB
    • 1 shown on diagram
    $13.99
  • 13

    COVER

    • Part No. T4815-89163
    • T2.0
    • 1 shown on diagram
    $72.99
  • 14

    GROMMET

    • Part No. T4815-89171
    • 1 shown on diagram
    $2.49
  • 15
    • Part No. T4815-93211
    • M8
    • 2 shown on diagram
  • 16 SWITCH, WIPER, RR

    SWITCH, WIPER, RR

    • Part No. T4935-54212
    • 1 shown on diagram
    $96.99
  • 17
    • Part No. TC26-0767A
    • T2.3
    • 1 shown on diagram
  • 18

    COVER, WASHER TANK dnr v

    • Part No. TC26-1140A
    • T2.3
    • 1 shown on diagram
    $73.99
  • 19

    ARM, WIPER-RR

    • Part No. TC26-1215A
    • 300 mm
    • 1 shown on diagram
    $92.99
