DOOR GROUP - TC2-G6C4003

Kioti TRACTOR | CK Series | CK3520CHSEB

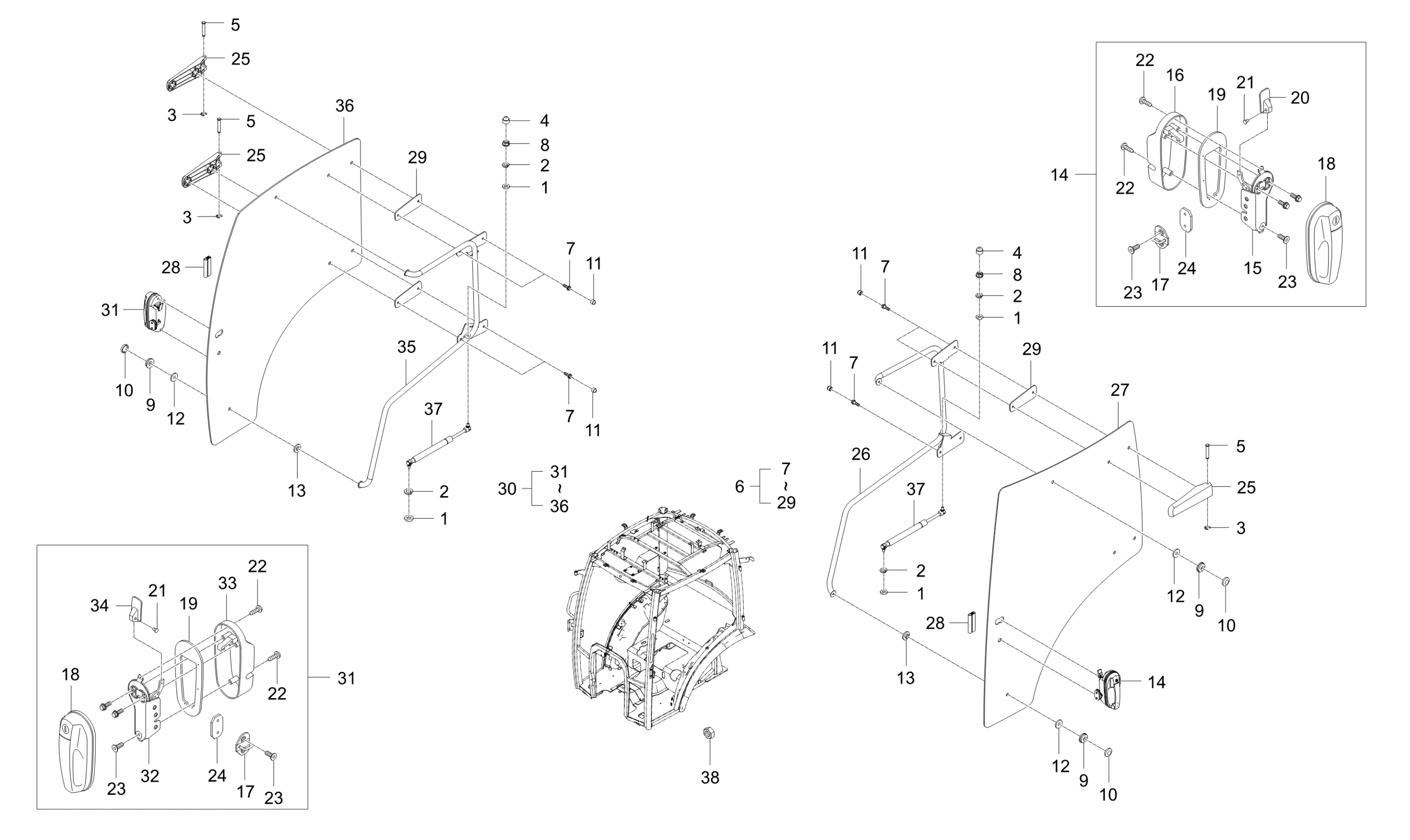

Diagram for DOOR GROUP - TC2-G6C4003
  • 1 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 4 shown on diagram
    $.67
  • 2 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 4 shown on diagram
    $.61
  • 3 RING SNAP

    RING SNAP

    • Part No. 04613-50100
    • 4 shown on diagram
    $0.49
  • 4
    • Part No. T4815-93211
    • M8
    • 2 shown on diagram
  • 5

    PIN

    • Part No. T5525-85381
    • 4 shown on diagram
    $7.49
  • 6

    TRK ASSY DOOR, CABIN – LH v

    • Part No. TC26-0550C
    • 1 shown on diagram
    $1569.99
  • 7 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 4 shown on diagram
    $1.89
  • 8 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.67
  • 9

    COLLAR

    • Part No. T4145-83711
    • 2 shown on diagram
    $5.49
  • 10

    CAP,SEALING

    • Part No. T4145-83721
    • 2 shown on diagram
    $4.49
  • 11
    • Part No. T4815-93211
    • M8
    • 4 shown on diagram

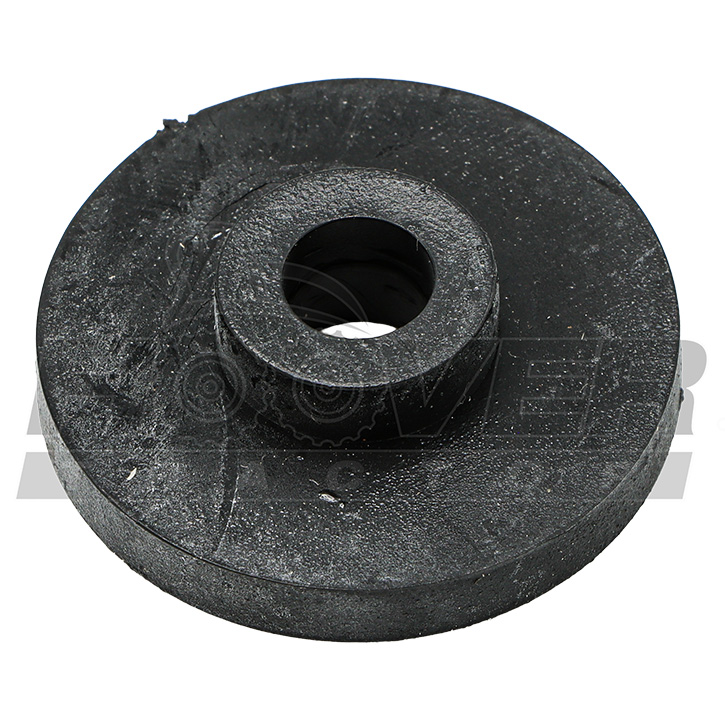

  • 12 CUSHION A

    CUSHION A

    • Part No. T4930-83721
    • 2 shown on diagram
    $3.99

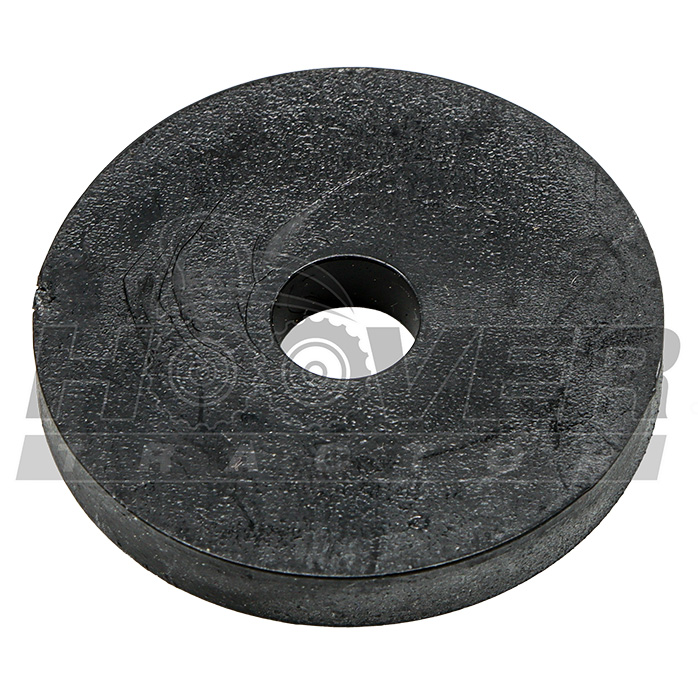

  • 13 CUSHION B

    CUSHION B

    • Part No. T4930-83731
    • 2 shown on diagram
    $1.39

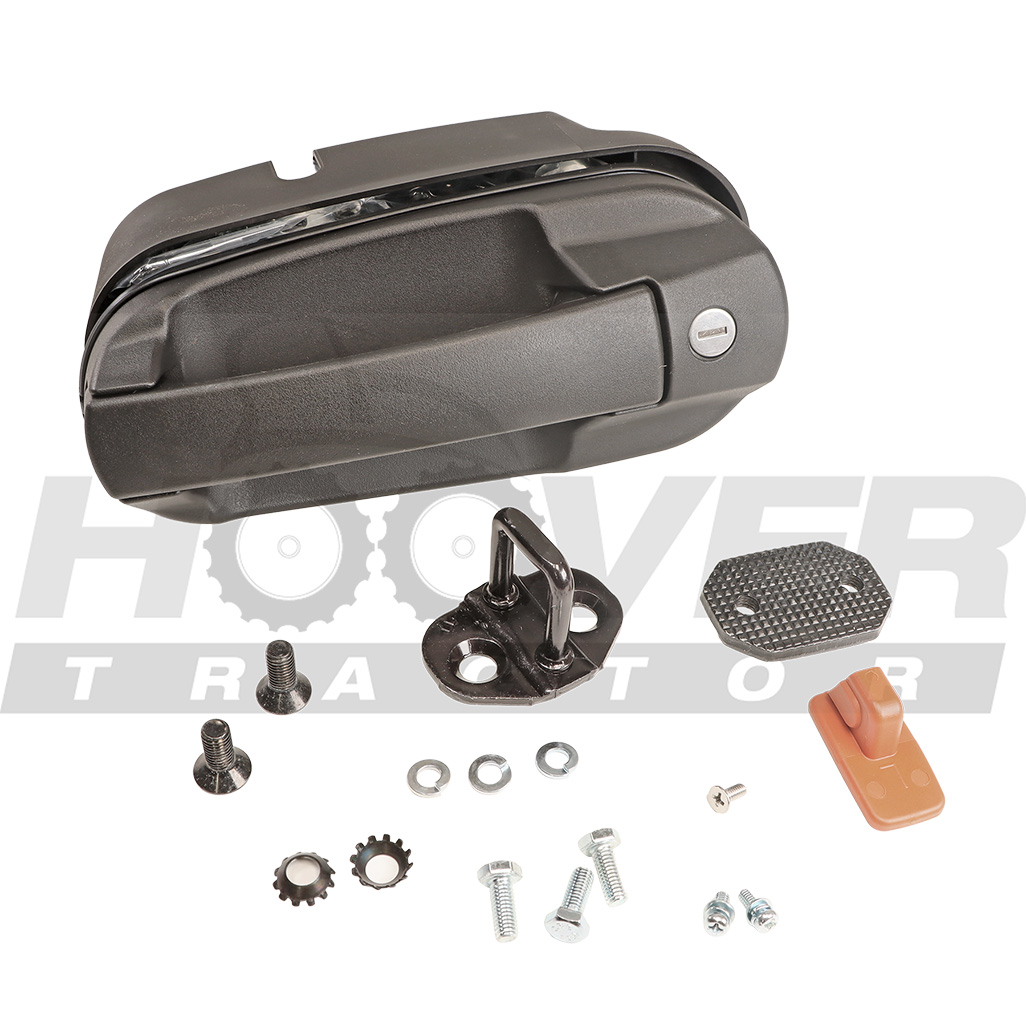

  • 14 ASS`Y,HANDLE(LH)

    ASS`Y,HANDLE(LH)

    • Part No. T5270-82713
    • 1 shown on diagram
    $424.99

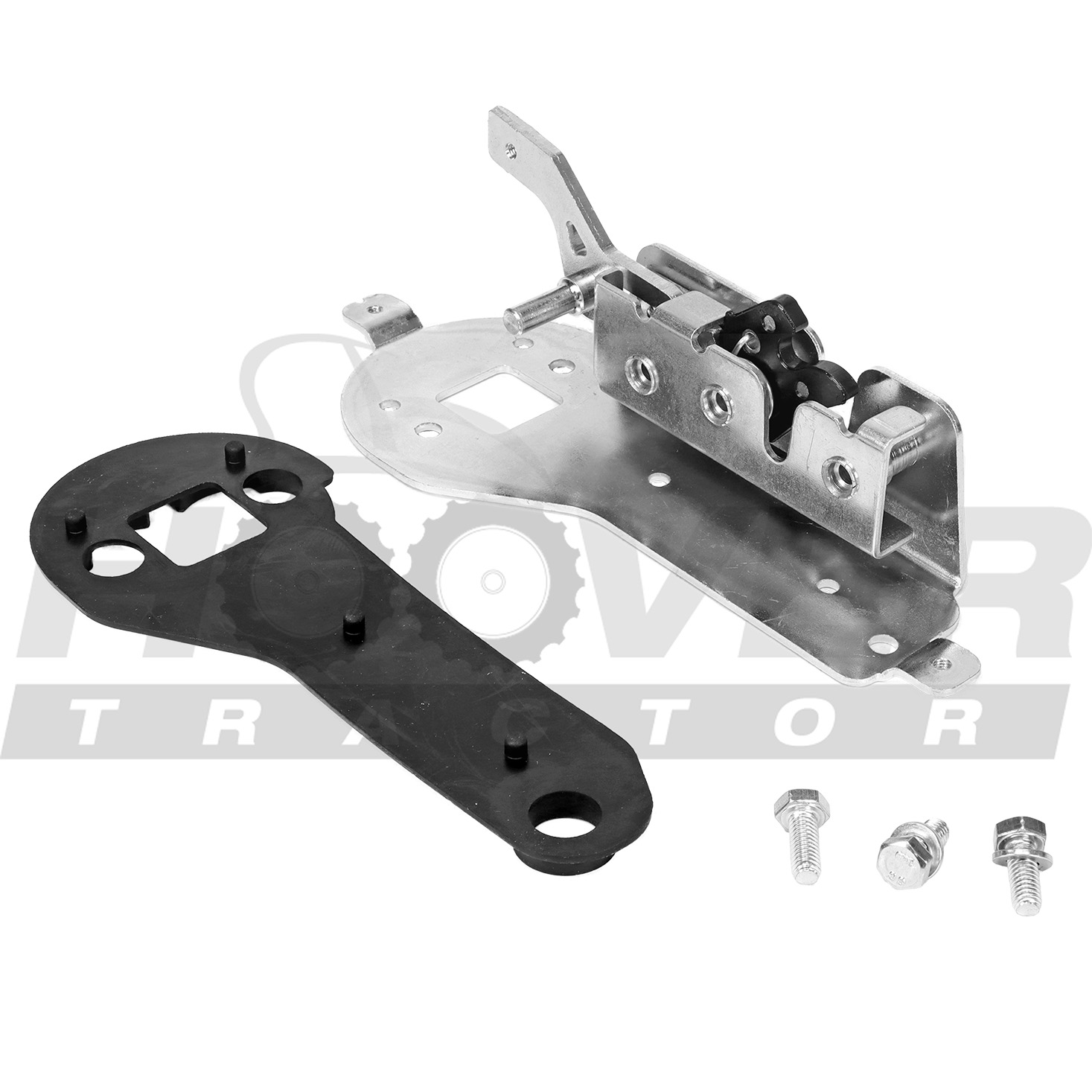

  • 15 BRACKET, CATCK LOCK(LH)

    BRACKET, CATCK LOCK(LH)

    • Part No. T5270-82732
    • 1 shown on diagram
    $199.99
  • 16

    HANDLE COVER LH

    • Part No. T5270-82751
    • 1 shown on diagram
    $39.99
  • 17

    STRIKER, LATCH

    • Part No. T5270-82771
    • 1 shown on diagram
    $26.99
  • 18
    • Part No. T5270-82812
    • 1 shown on diagram
  • 19

    GASKET

    • Part No. T5270-82821
    • 1 shown on diagram
    $15.99
  • 20

    KNOB LH

    • Part No. T5270-82831
    • 1 shown on diagram
    $9.99
  • 21
    • Part No. T5270-82851
    • 1 shown on diagram
  • 22

    BOLT

    • Part No. T5270-82861
    • 2 shown on diagram
    $1.39
  • 23

    BOLT TAP

    • Part No. T5270-82871
    • 1 shown on diagram
    $3.99
  • 24

    NET

    • Part No. T5270-89921
    • 1 shown on diagram
    $19.99
  • 25

    BRACKET, SIDE FRAME v

    • Part No. TC26-0595A
    • 2 shown on diagram
    $149.99
  • 26

    ASSY FRAME, DOOR-LH v

    • Part No. TC26-0917A
    • 1 shown on diagram
    $424.99
  • 27

    TRK – Door Glass, LH

    • Part No. TC26-0918A
    • 1 shown on diagram
    $829.99

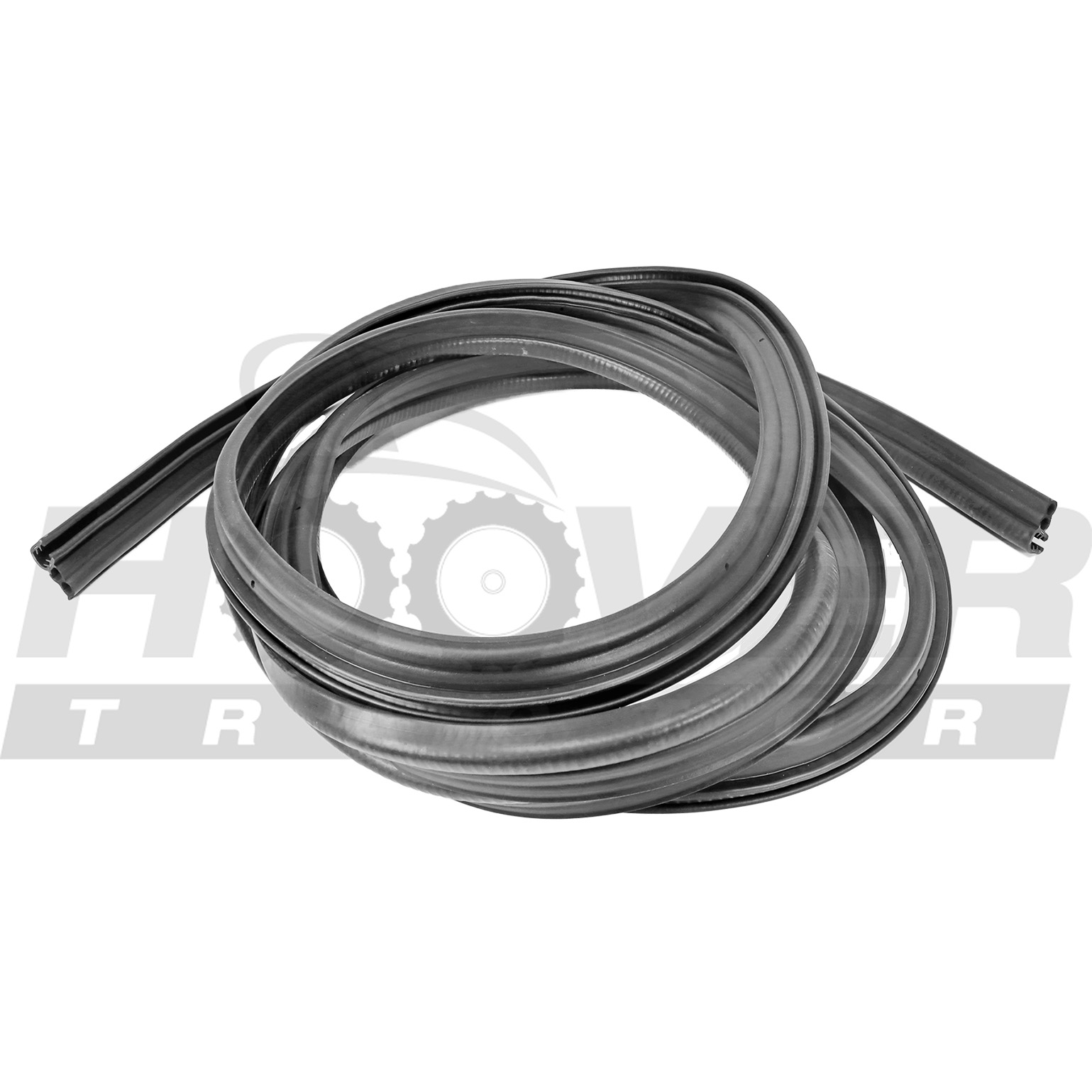

  • 28 WEATHERSTRIP, DOOR-L7 TYPE

    WEATHERSTRIP, DOOR-L7 TYPE

    • Part No. TC26-1910A
    • 1 shown on diagram
    $83.99
  • 29

    PACKING, HINGE

    • Part No. TC26-0920A
    • 4 shown on diagram
    $74.99
  • 30

    TRK ASSY DOOR, CABIN-RH v

    • Part No. TC26-0552C
    • 1 shown on diagram
    $1894.99
  • 31

    ASS`Y,HANDLE(RH)

    • Part No. T5270-82723
    • 1 shown on diagram
    $399.99
  • 32
    • Part No. T5270-82742
    • 1 shown on diagram
  • 33
    • Part No. T5270-82761
    • 1 shown on diagram
  • 34

    KNOB RH

    • Part No. T5270-82841
    • 1 shown on diagram
    $9.99
  • 35

    ASSY FRAME, DOOR-RH

    • Part No. TC26-0921A
    • 1 shown on diagram
    $419.99
  • 36

    TRK GLASS DOOR ENTRANCE -RH

    • Part No. TC26-0922A
    • 1 shown on diagram
    $924.99

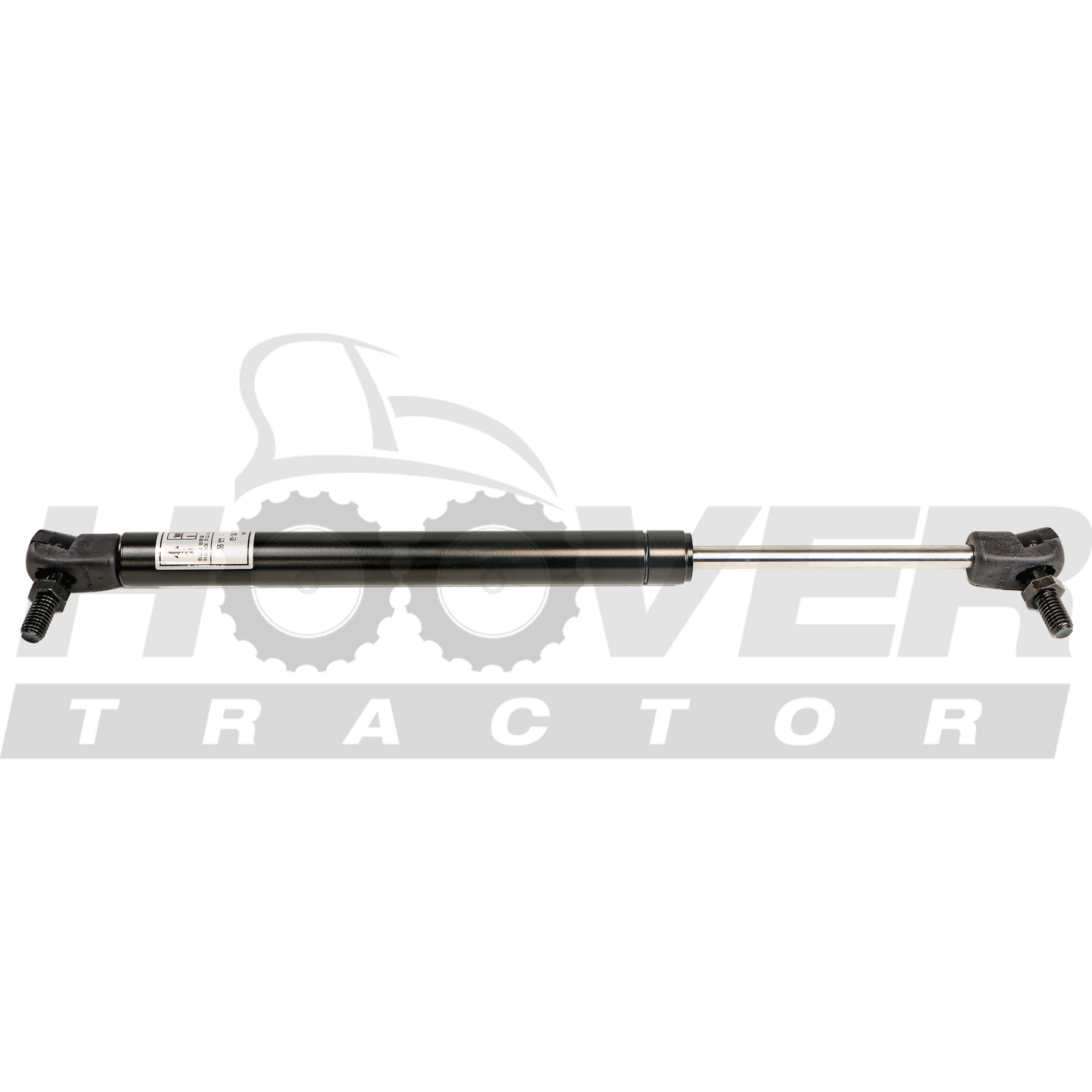

  • 37 CYLINDER, AIR DOOR

    CYLINDER, AIR DOOR

    • Part No. TC26-0597A
    • 2 shown on diagram
    $84.99
  • 38
    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
