REAR GLASS GROUP - TC2-G6C5505

Kioti TRACTOR | CK Series | CK3520CHSEB

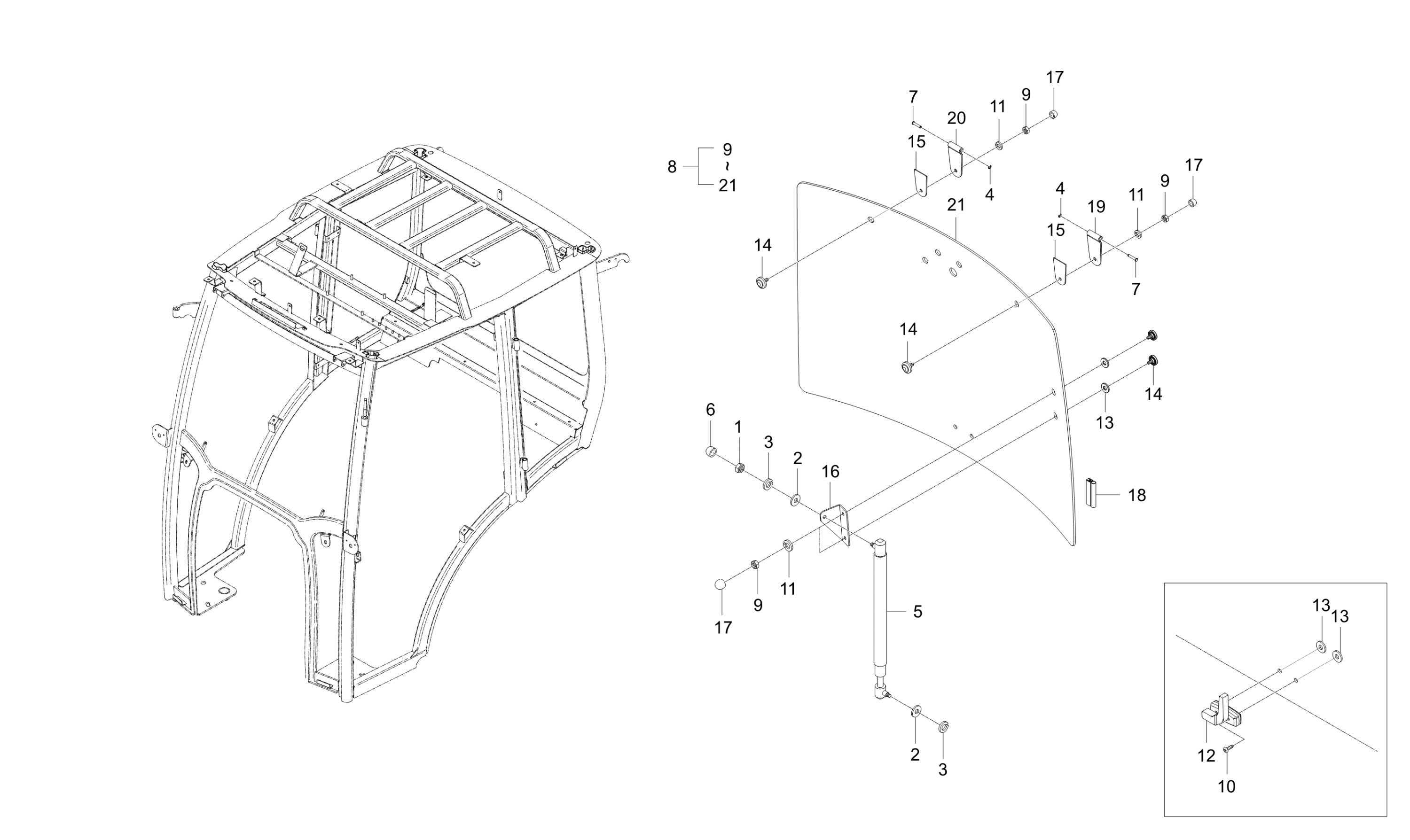

Diagram for REAR GLASS GROUP - TC2-G6C5505
  • 1 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.85
  • 2 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 2 shown on diagram
    $0.67
  • 3 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 4 shown on diagram
    $0.61
  • 4 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • DIA06
    • 2 shown on diagram
    $0.67
  • 5

    CYLINDER, AIR

    • Part No. TC26-1488A
    • Lmax406-Stroke161(21
    • 1 shown on diagram
    $75.99
  • 6 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 1 shown on diagram
    $1.49
  • 7

    PIN, JOINT obs v

    • Part No. T5525-85671
    • 2 shown on diagram
    $2.49
  • 8

    TRK ASSY GLASS, REAR

    • Part No. TC26-0554B
    • 1 shown on diagram
    $734.99
  • 9 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 4 shown on diagram
    $0.85
  • 10

    BOLT SCREW v

    • Part No. 03054-50614
    • 2 shown on diagram
    $0.56
  • 11 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 4 shown on diagram
    $0.61
  • 12 ASSY GRIP v

    ASSY GRIP v

    • Part No. C7280-89541
    • 1 shown on diagram
    $62.99
  • 13 Packing, 1 T4520-87402

    Packing, 1 T4520-87402

    • Part No. T4520-87402
    • T3
    • 4 shown on diagram
    $2.99

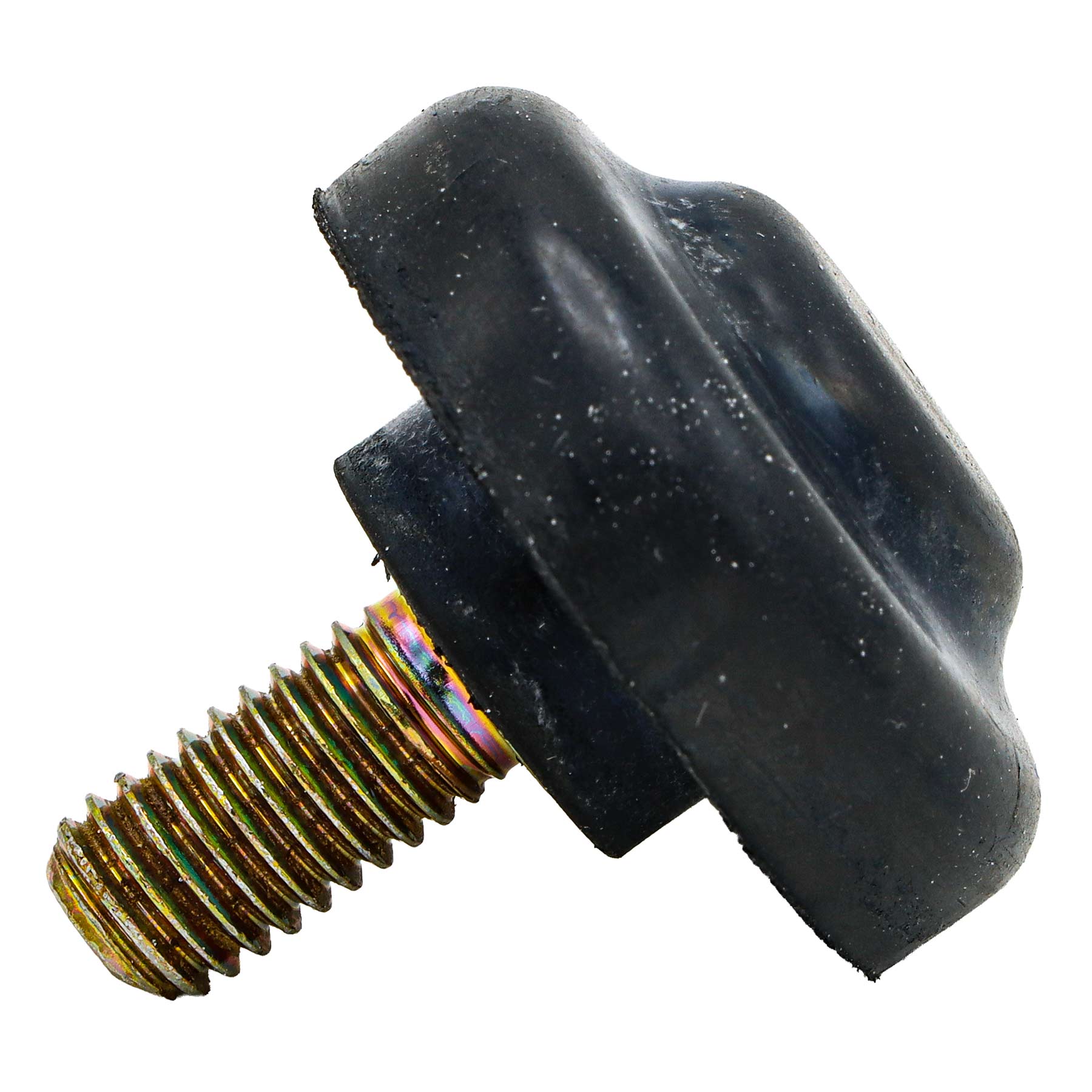

  • 14 BOLT,CUSHION (interchanges w/ T4620-81841)

    BOLT,CUSHION (interchanges w/ T4620-81841)

    • Part No. T4620-81842
    • 4 shown on diagram
    $6.99
  • 15

    PACKING

    • Part No. T4681-85311
    • 2 shown on diagram
    $6.49
  • 16

    BRACKET, DOOR RR RH

    • Part No. T4681-85331
    • 1 shown on diagram
    $12.99
  • 17 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 4 shown on diagram
    $1.49
  • 18

    WAETHERSTRIP dnr v

    • Part No. TC26-0924A
    • 1 shown on diagram
    $28.99
  • 19

    HINGE, REAR DOOR-LH

    • Part No. TC26-0925A
    • 1 shown on diagram
    $14.99
  • 20

    HINGE, REAR DOOR-RH

    • Part No. TC26-0926A
    • 1 shown on diagram
    $14.99
  • 21

    TRK – GLASS, REAR – HEAT WIRE

    • Part No. TC26-0923A
    • 1 shown on diagram
    $639.99
