WIPER(FRONT) GROUP - TC2-G6C6506

Kioti TRACTOR | CK Series | CK3520CHSEB

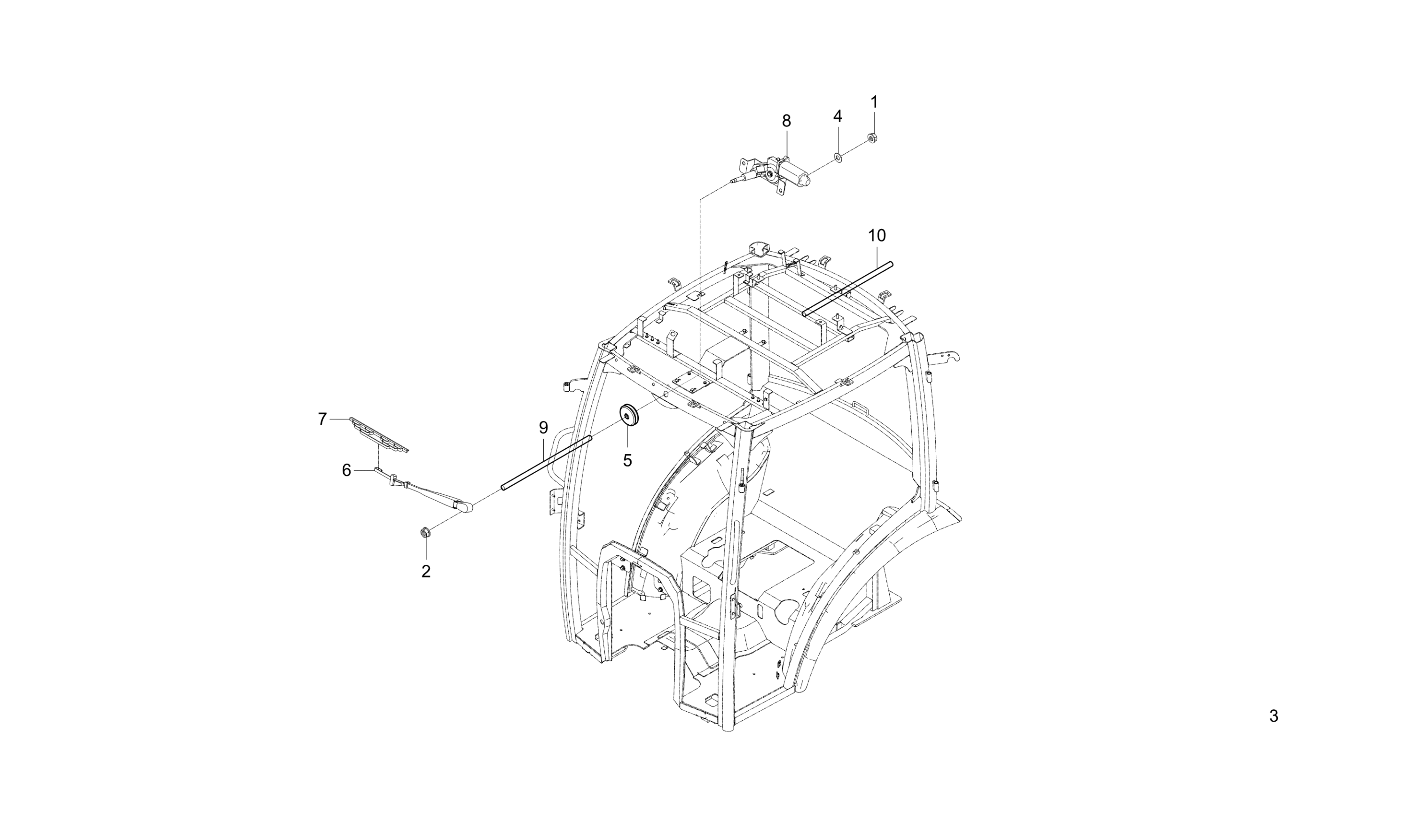

Diagram for WIPER(FRONT) GROUP - TC2-G6C6506

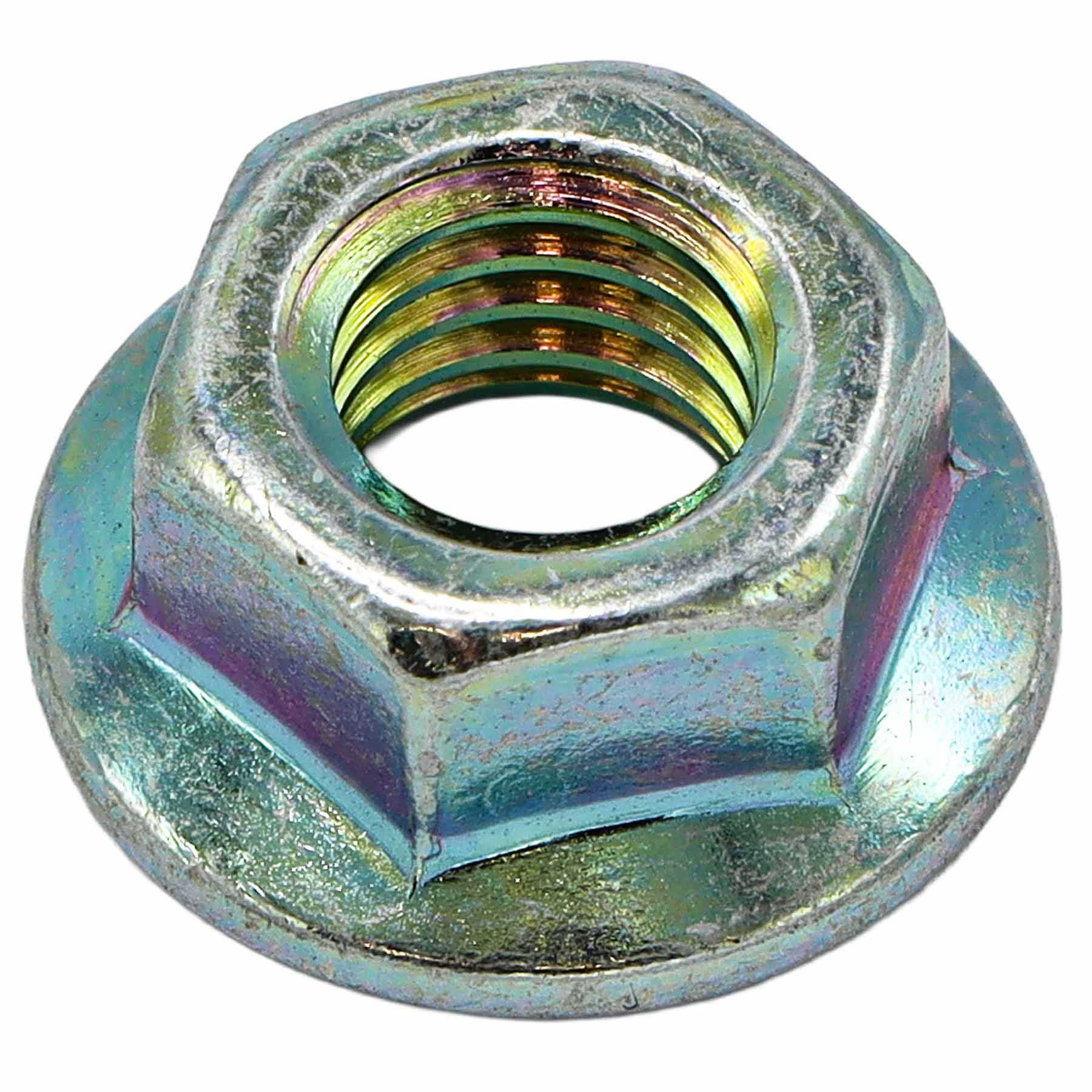

  • 1 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 2 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.67
  • 3 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.67
  • 4 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $.79

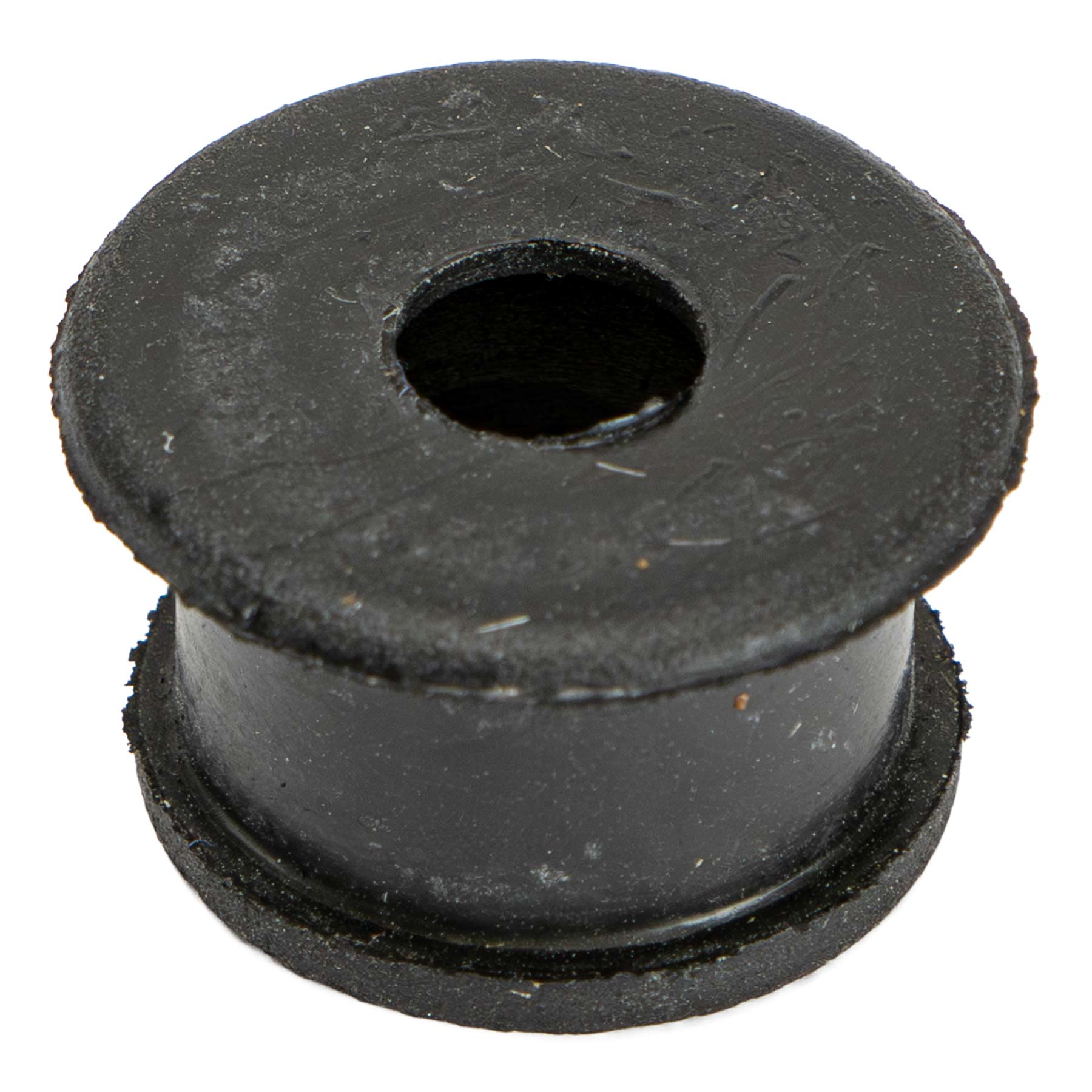

  • 5 GROMMET

    GROMMET

    • Part No. T4681-82421
    • 4 shown on diagram
    $2.49
  • 6
    • Part No. T4815-82421
    • N
    • 1 shown on diagram

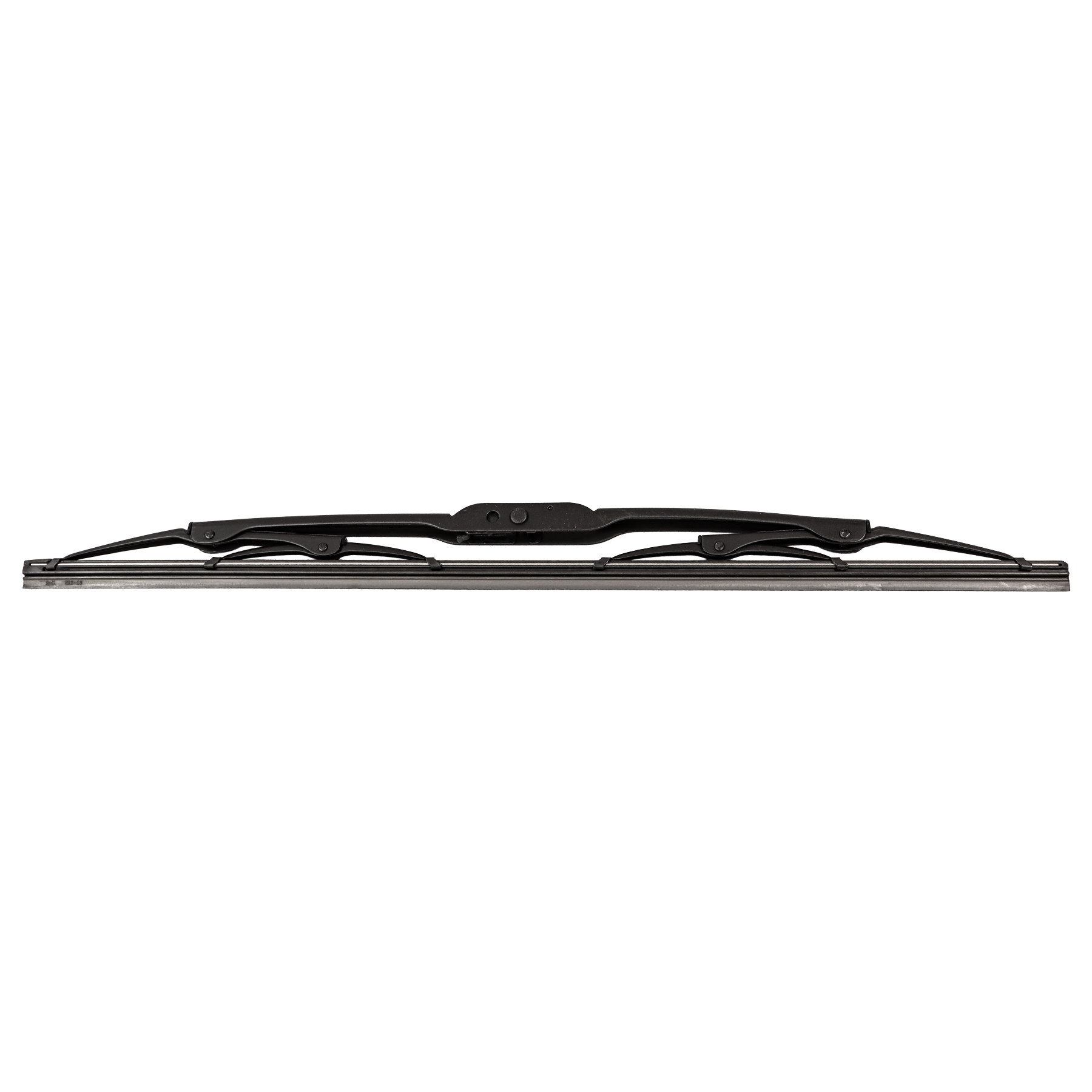

  • 7 BLADE, WIPER FRONT D (16″)

    BLADE, WIPER FRONT D (16″)

    • Part No. T4815-82431
    • 1 shown on diagram
    $34.99
  • 8

    MOTOR WIPER FRONT

    • Part No. T4930-69911
    • 1 shown on diagram
    $284.99

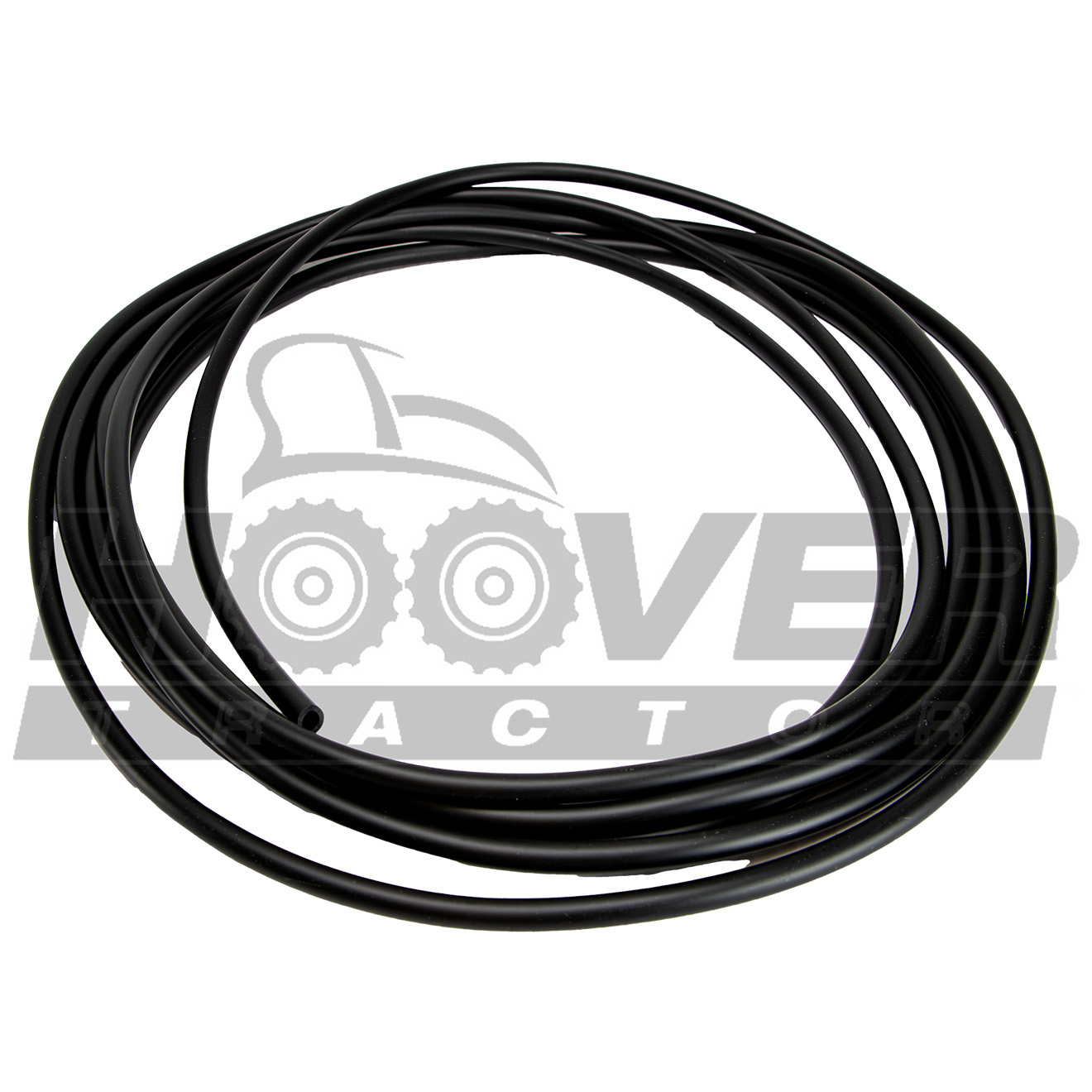

  • 9 HOSE-FR

    HOSE-FR

    • Part No. TC26-0928A
    • 1 shown on diagram
    $5.99

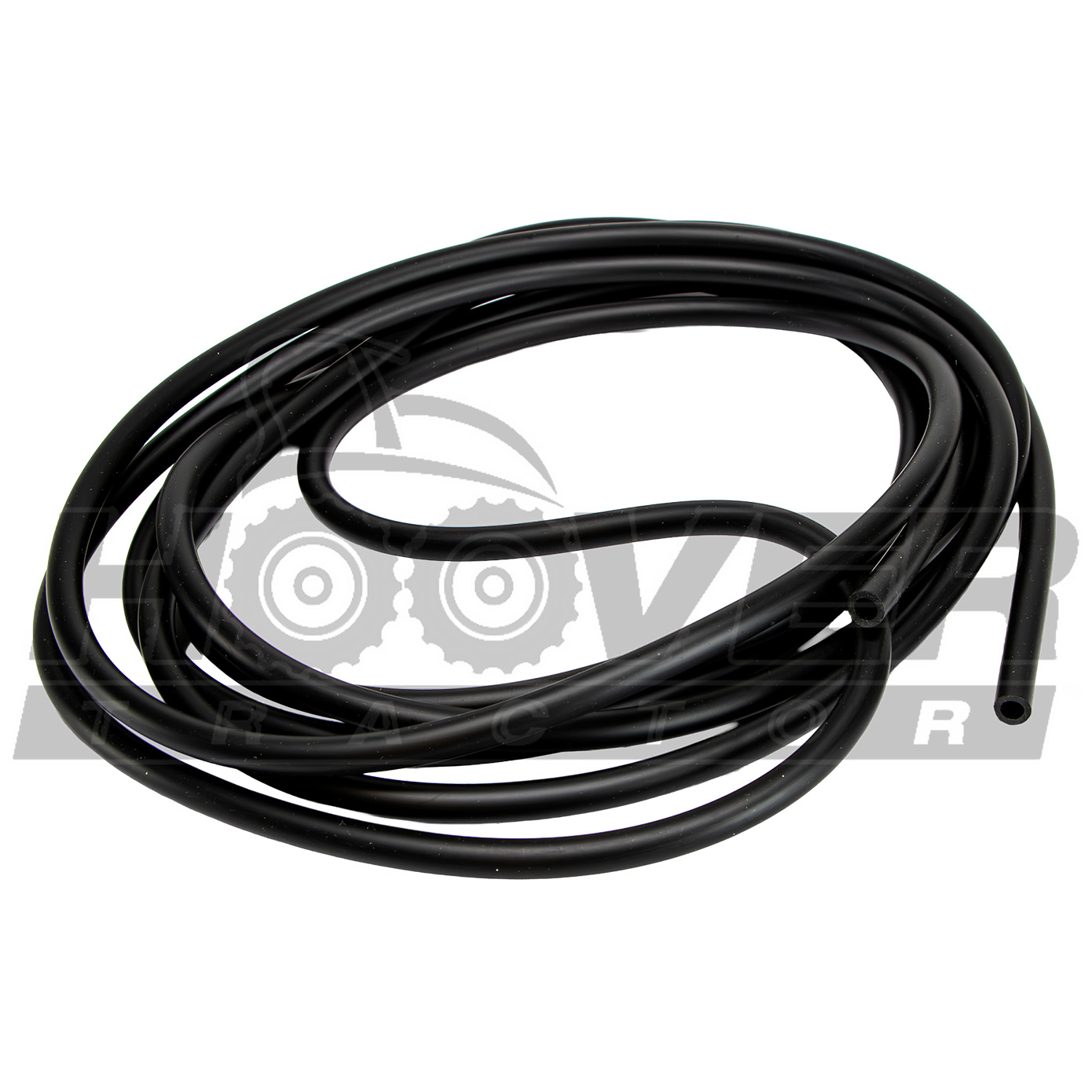

  • 10 HOSE-RR

    HOSE-RR

    • Part No. TC26-0929A
    • 1 shown on diagram
    $4.99
