POWER STEERING UNIT GROUP - DK45CHSE-T1025C

Kioti TRACTOR | DK Series | DK60CHSE

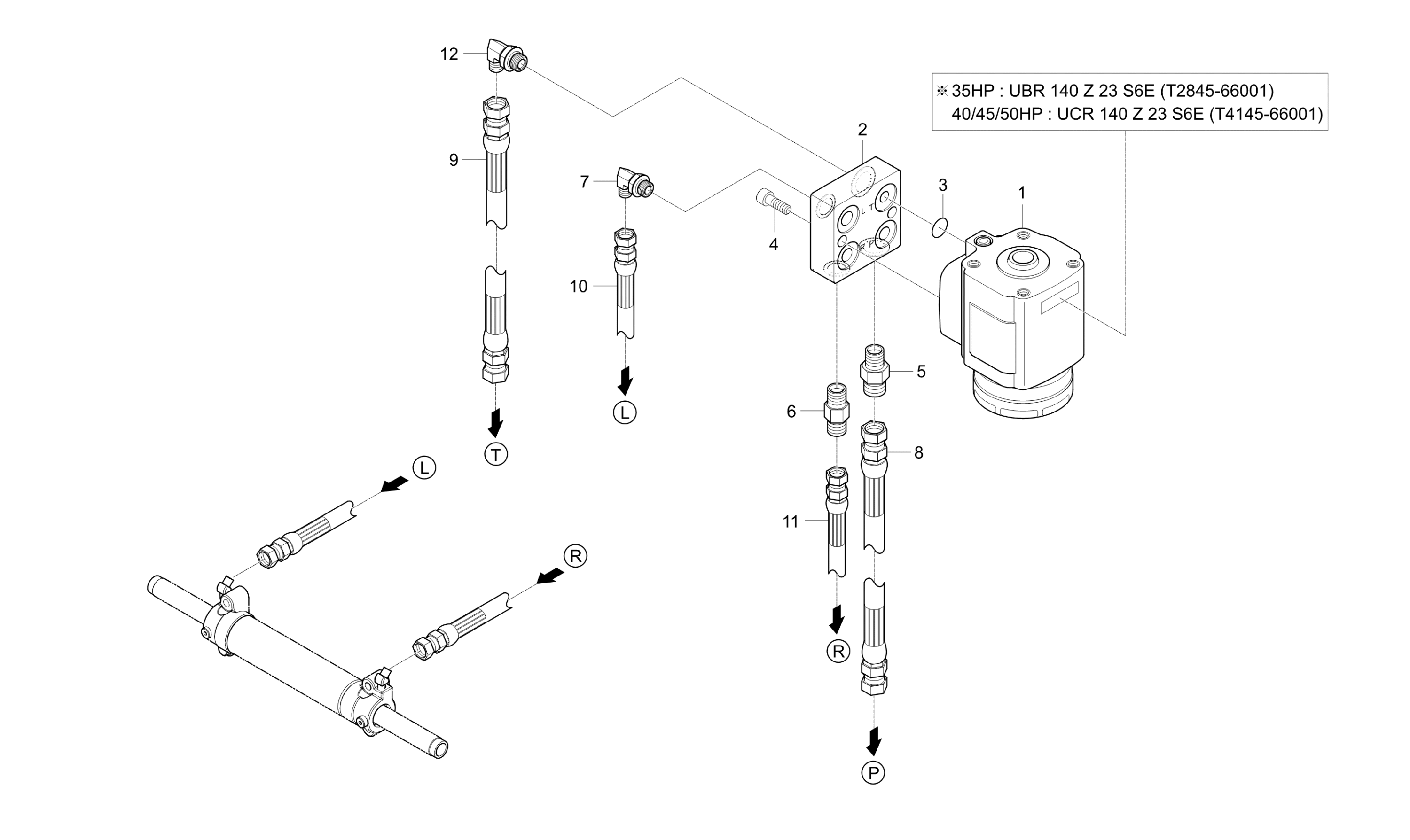

Diagram for POWER STEERING UNIT GROUP - DK45CHSE-T1025C
  • 1

    POWER STEERING UNIT

    • Part No. T4145-66001
    • 1 shown on diagram
    $2,699.99
  • 2

    BLOCK, HYDRAULIC

    • Part No. T4125-66021BB
    • 1 shown on diagram
    $139.99
  • 3 O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    O-RING, NLA, Use 330-MOR-21.8X2.4-90D, Replaced by 04816-00220

    • Part No. 04810-00220
    • DIA21.8
    • 4 shown on diagram
    $1.19
  • 4

    BOLT, HEXAGON SOCKET

    • Part No. T2185-66221
    • M10*1.5
    • 2 shown on diagram
    $7.49
  • 5 CONNECTOR

    CONNECTOR

    • Part No. T4810-46971
    • 1 shown on diagram
    $15.99
  • 6

    CONNECTOR

    • Part No. T4620-66161
    • PF1/4
    • 1 shown on diagram
    $13.99
  • 7

    ELBOW

    • Part No. T2185-66231
    • 1 shown on diagram
    $28.99
  • 8

    HOSE P, STEERING

    • Part No. T4125-45003
    • 1 shown on diagram
    $144.99
  • 9

    HOSE T, STEERING

    • Part No. T4125-45011
    • 1 shown on diagram
    $134.99
  • 10

    HOSE ASSY, L STEERING

    • Part No. T4145-45022
    • Applied Dates 2008-08-05 and up
    • 1 shown on diagram
    $119.99
  • 11

    HOSE RH, STEERING

    • Part No. T4145-45032
    • Applied Dates 2008-08-05 and up
    • 1 shown on diagram
    $124.99
  • 12

    ELBOW

    • Part No. T4850-45161
    • 1 shown on diagram
    $36.99
