GEAR PUMP GROUP - EX60H-T725A

Kioti TRACTOR | DK Series | DK60CHSE

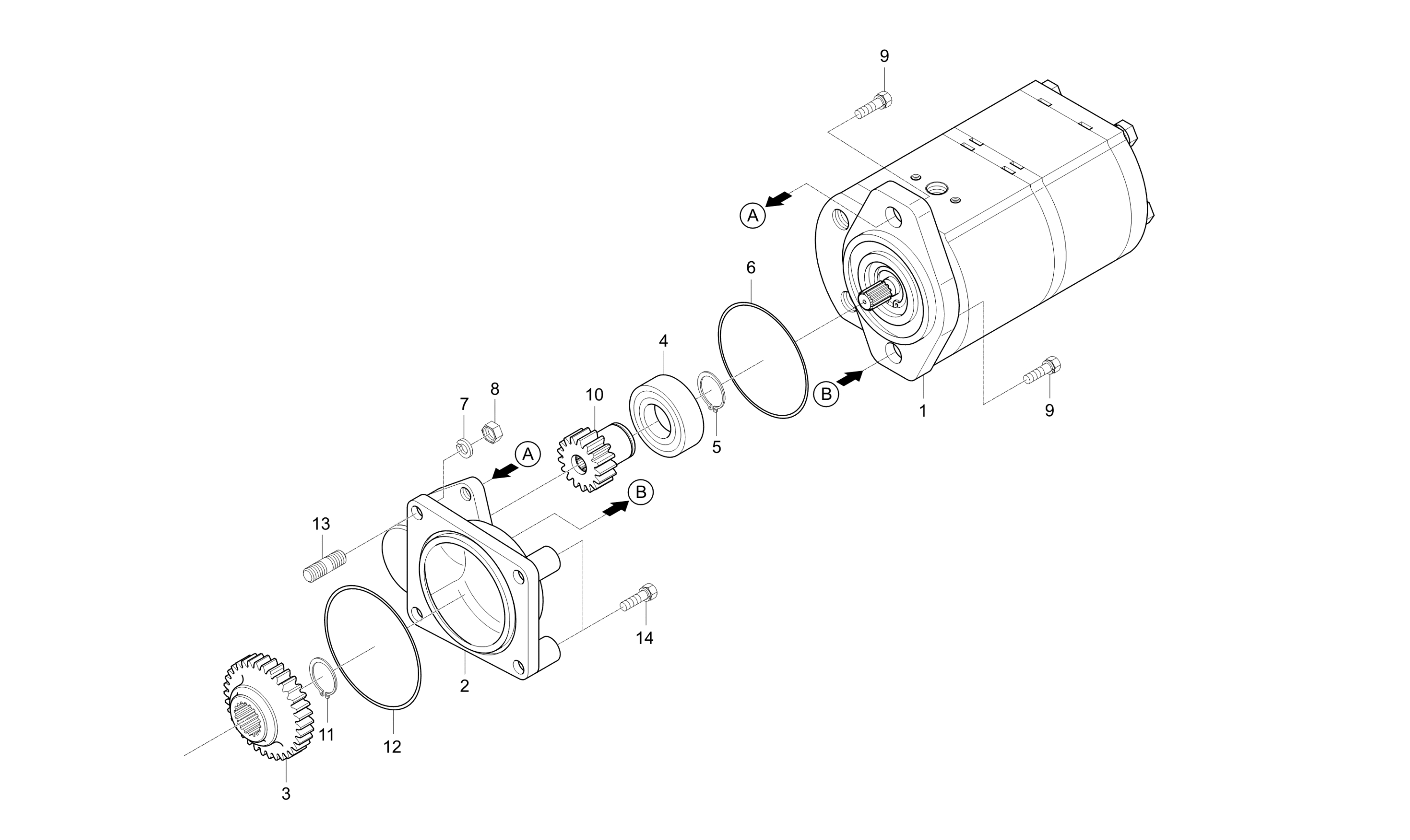

Diagram for GEAR PUMP GROUP - EX60H-T725A
  • 1

    ASS’Y PUMP, HYDRAULIC O-P

    • Part No. T5515-36001
    • 1 shown on diagram
    $1,469.99
  • 2

    HOLDER, GEAR PUMP dnr v

    • Part No. T4620-76002
    • 1 shown on diagram
    $119.99
  • 3 GEAR,34

    GEAR,34

    • Part No. T2185-76021
    • 1 shown on diagram
    $93.99
  • 4 BEARING 5205 25x52x20.5

    BEARING 5205 25x52x20.5

    • Part No. 08241-05205
    • 1 shown on diagram
    $87.99
  • 5 Snap Ring, External, 25mm

    Snap Ring, External, 25mm

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 6 O-RING

    O-RING

    • Part No. 04811-10800
    • DIA79.5
    • 1 shown on diagram
    $1.69
  • 7 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 8 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.85
  • 9

    Bolt w/Lock Washer M10 P1.25x35mm

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 10 GEAR 17

    GEAR 17

    • Part No. T4620-76031
    • 1 shown on diagram
    $69.99
  • 11

    SNAP_RING

    • Part No. 15471-9536-1
    • F25
    • 1 shown on diagram
    $7.49
  • 12 O RING

    O RING

    • Part No. 04811-10850
    • 1 shown on diagram
    $1.99
  • 13 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 2 shown on diagram
    $3.99
  • 14 Bolt With Washer, M8 P1.25 x 45mm

    Bolt With Washer, M8 P1.25 x 45mm

    • Part No. 01123-50845
    • M8*P1.25
    • 2 shown on diagram
    $2.99
